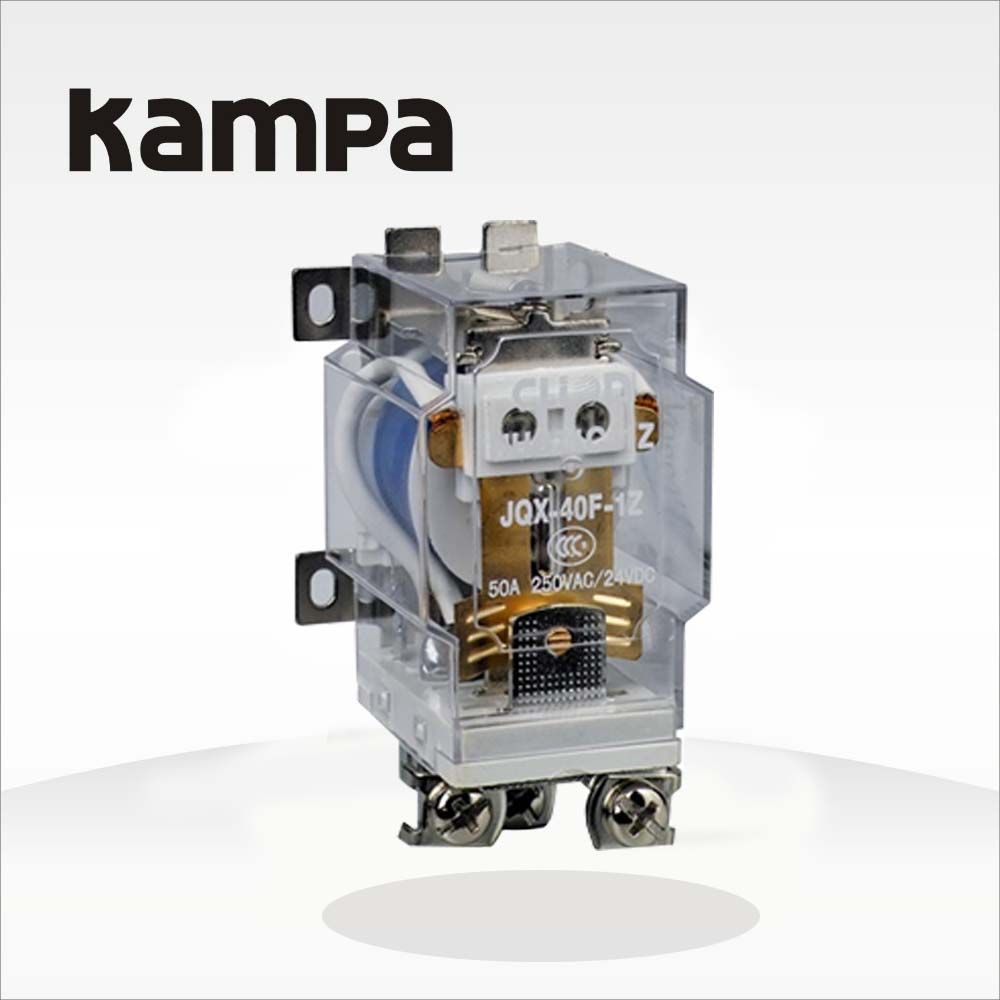

Jqx-40f 50A AC12V 24V 220V Reverse Phase Protective High Power Relay

Name: Jqx-40f 50A AC12V 24V 220V Reverse Phase Protective High Power Relay
Brand: all-electronics-online.com
SKU: 818410875
Availability: InStock
Rating: 4.5 (127 reviews)

Price:	US $ 2.85/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JQX-40F
Form:	1A.1b.1c
Rated Load:	50A
Max Switching Voltage:	250VAC/30VDC
Contact Resistance:	≤100mΩ
Material:	Silver Alloy

Product Description

art NO.			HHC71C(JQX-40F)
Contact Feature	Form		1Z,1H,1D	2Z,2H.2D
	Rated load		50A	40A/240VAC30VDC
	Max switchingvoltage		240VAC/30VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		≥1*105
	Mechanical life		≥1*107
Operate voltage (ºC)			DC:≤75%*Rated voltage
			AC:≤80%*Rated voltage
Release voltage (ºC)			DC:≥10%*Rated voltage
			AC:≥30%*Rated voltage
Maximum voltage (25?)			110%*Rated voltage
Normal coilvoltage		DC	6-220V
		AC	6-380V
Normal coil power		DC	2.0W
		AC	5.0VA
Pick-up time(Ratedvoltage)			≤25ms
Release time(Ratedvoltage)			≤15ms
Inner Box quantity			10PCS/BOX
Carton quantity			80PCS/CTN
Mess			402mmx288mmx370mm

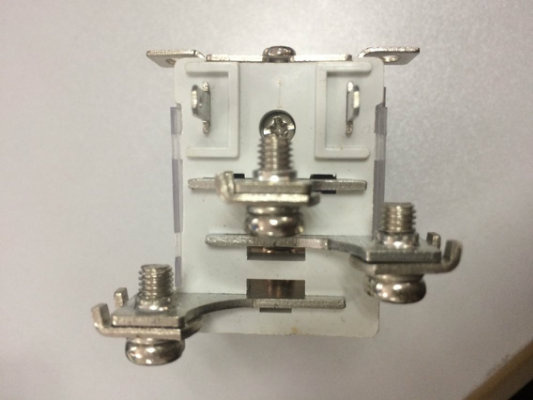

2.Picture
