Jqx-58f 60A 250VAC/240VDC High Power General Purpose Relay

Name: Jqx-58f 60A 250VAC/240VDC High Power General Purpose Relay
Brand: all-electronics-online.com
SKU: 818387465
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	US $ 2.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JQX-58F
Form:	1A.1b.1c
Rated Load:	60A
Max Switching Voltage:	250VAC/30VDC
Contact Resistance:	≤100mΩ
Material:	Silver Alloy

Product Description

art NO.			HHC71G(JQX-58F)

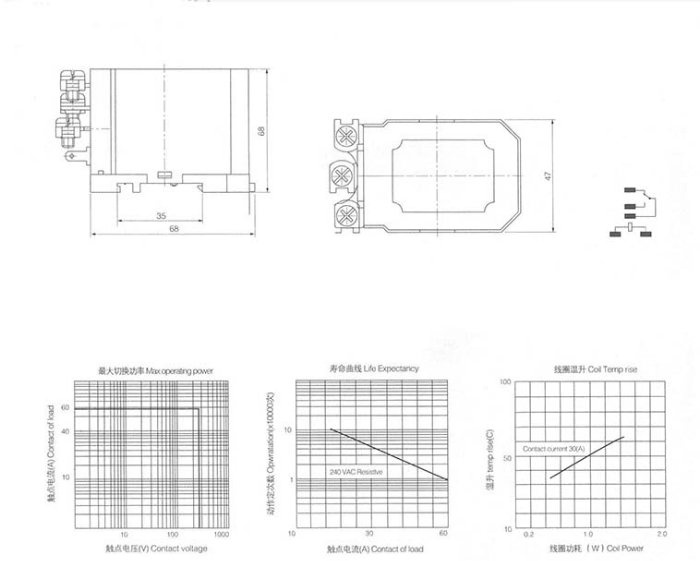

Dimension			65mmx47.5mmx51mm
Contact Feature	Form		1Z,1H,1D
	Rated load		60A
	Max switchingvoltage		240VAC/28VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		≥1*105
	Mechanical life		≥1*107
Operate voltage (25?)			DC:≤75%*Rated voltage
			AC:≤80%*Rated voltage
Release voltage (25?)			DC:≥10%*Rated voltage
			AC:≥30%*Rated voltage
Maximum voltage (25?)			110%*Rated voltage
Normal coilvoltage		DC	6-220V
		AC	6-380V
Normal coil power		DC	DC:2.0W
		AC	AC:8.6A
Pick-up time(Ratedvoltage)			≤25ms
Release time(Ratedvoltage)			≤15ms
Weight			170g
Inner Box quantity			10.PCS/BOX
Carton Quantity			80PCS/CTN
Mess			402mm X 288mm X 370mm

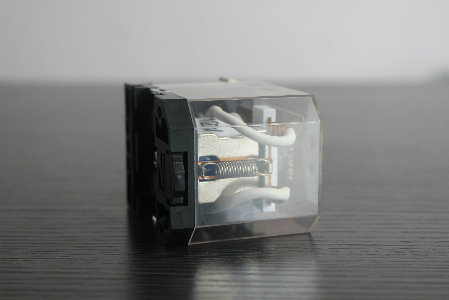

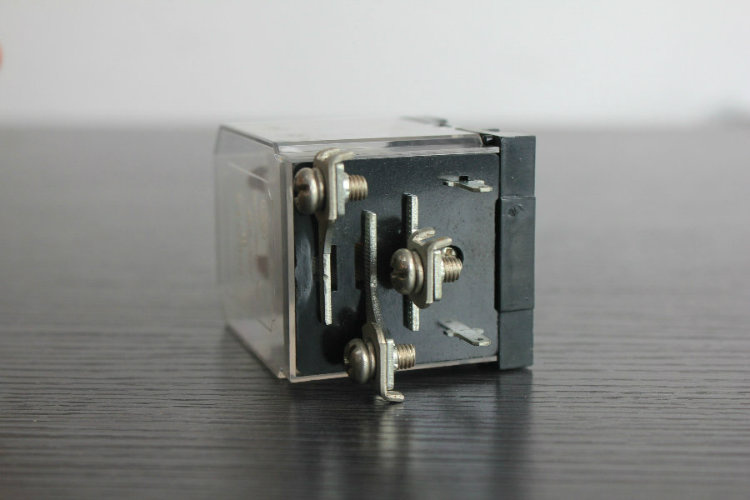

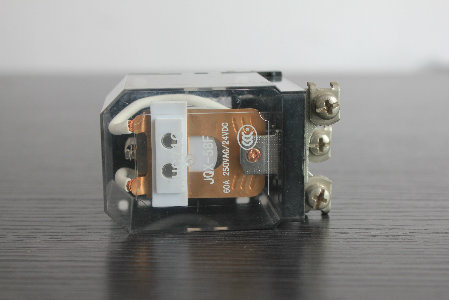

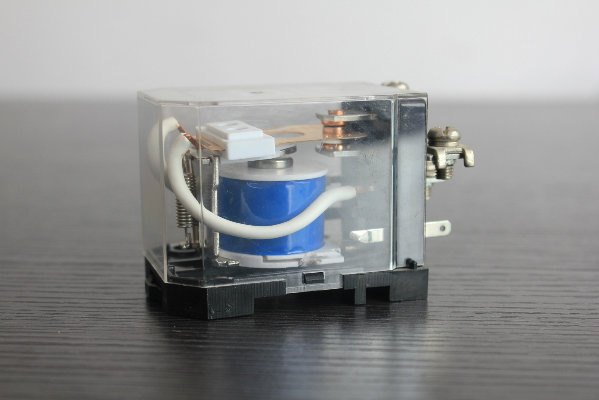

2.Picture
