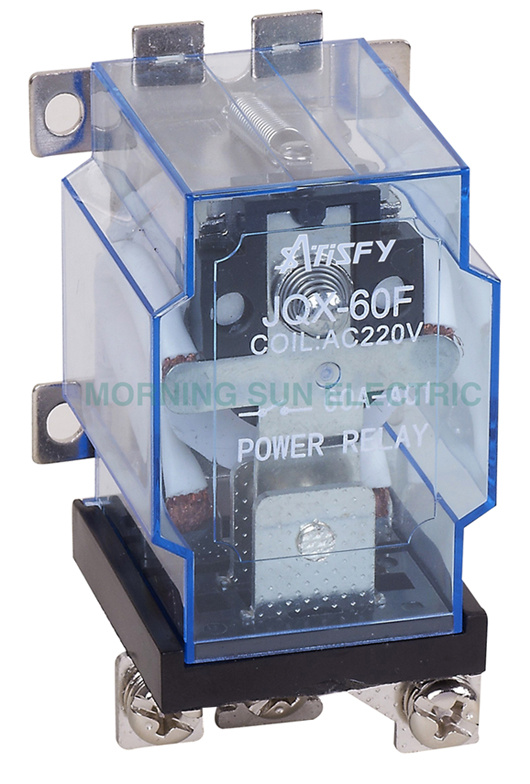

JQX-60f Power Relay

Name: JQX-60f Power Relay
Brand: all-electronics-online.com
SKU: 694632255
Availability: InStock
Rating: 4.7 (84 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Power relay
JQX-60F

Type		JQX-60F
Dimensions (mm)		45.84667
Contact form		1Z
Contact capacity		80A 250V 80A 24VAC
Coil voltage	DC	6~220V
	AC	6~380V
Coil power		DC: ≤ 2.0W AC: ≤ 2.5VA
Pick-up		DC: ≤ 75% AC: ≤ 80%
Drop-out		DC: ≥ 10% AC: ≥ 30%
Contact resistance		≤ 50mΩ
Insulation resistance		≥ 1000mΩ
Service life	Electrical	100000 times
	Mechanical	10000000 times
Dielectric strength	Between open contacts	1500v rms
	Between coil and contacts	2500v rms
Mounting form		Welding
Operation temperature		-40~+60
Weight		About 160g
