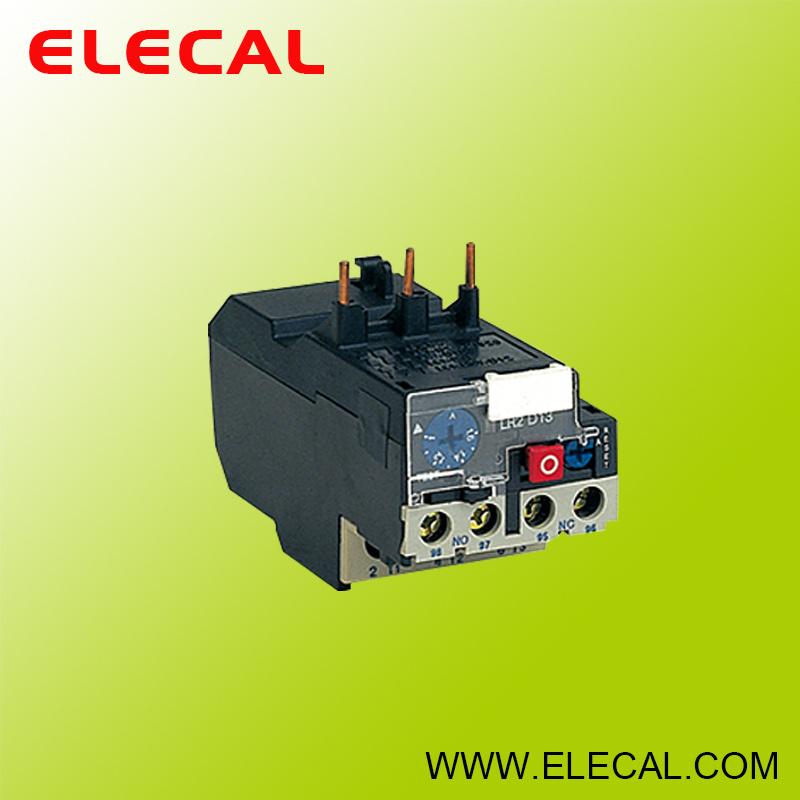

Jr28 Series Thermal Relay

Name: Jr28 Series Thermal Relay
Brand: all-electronics-online.com
SKU: 765827235
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JR28
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
JR28 series thermal relay is suitable for using in the circuit rated voltage up to 660V, ratedcurrent 93A AC 50/ 60Hz, for over-current protection of AC motor. The relay has the differentialmechanism and temperature compensation and can plug in CJX2 series AC contactor. Theproduct conforms to IEC60947-4-1 stardand.

2. Motion Characteristic: Three-phase Balance Motion Time

No	Times of the setting current	Motion time			Start condition	Ambient temperature
1	1.05	>2h			Cold state	20±5^oC
2	1.2	<2h			Heat state(Following the No.1 test)
3	1.5	<4min
4	7.2	10A	2s< Tp≤10s	≤63A	Cold state
		10	4s< Tp≤10s	>63A

3. Phase-losing Motion Characteristic

No	Times of the setting current		Motion time	Start condition	Ambienttemperature
	Any two phases	Another phase
1	1.0	0.9	>2h	Cold state	20±5^oC
2	1.15	0	<2h	Heat state(Following the No.1 test)

4. Specification

Type	Number	Setting range (A)	For contactor
JR28-25	1301	0.1~0.16	CJX2-09~32
	1302	0.16~0.25	CJX2-09~32
	1303	0.25~0.4	CJX2-09~32
	1304	0.4~0.63	CJX2-09~32
	1305	0.63~1	CJX2-09~32
	1306	1~1.6	CJX2-09~32
	1307	1.6~2.5	CJX2-09~32
	1308	2.5~4	CJX2-09~32
	1310	4~6	CJX2-09~32
	1312	5.5~8	CJX2-09~32
	1314	7~10	CJX2-09~32
	1316	9~13	CJX2-09~32
	1321	12~18	CJX2-09~32
	1322	17~25	CJX2-32
JR28-36	2353	23~32	CJX2-09~32
JR28-36	2355	30~40	CJX2-09~32
JR28-93	3322	17~25	CJX2-09~32
	3353	23~32	CJX2-09~32
	3355	30~40	CJX2-09~32
	3357	37~50	CJX2-09~32
	3359	48~65	CJX2-09~32
	3361	55~70	CJX2-09~32
	3363	63~80	CJX2-09~32
	3365	80~93	CJX2-95
JR28-150	4365	80~104	CJX2-95
	4367	95~120	CJX2-95~115
	4369	110~140	CJX2-115

Type	Number	Setting range (A)	For contactor
JR28-150	5369	90~150	CJX2-150
JR28-200	F5357	30~50	CJX2-F115~F185
	F5363	48~80	CJX2-F115~F185
	F5367	60~100	CJX2-F115~F185
	F5369	90~150	CJX2-F115~F185
JR28-630	F5371	132~220	CJX2-F225~F265
	F7375	200~330	CJX2-F225~F500
	F7379	300~500	CJX2-F225~F500
	F7381	380~630	CJX2-F400~F630

5. Accessories

Pic
Description	JR28-25 mounting base	JR28-36 mounting base	JR28-93 mounting base
Application	Assembled with JR28-25 to form a complete set	Assembled with JR28-36 to form a complete set	Assembled with JR28-93 to form a complete set

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
