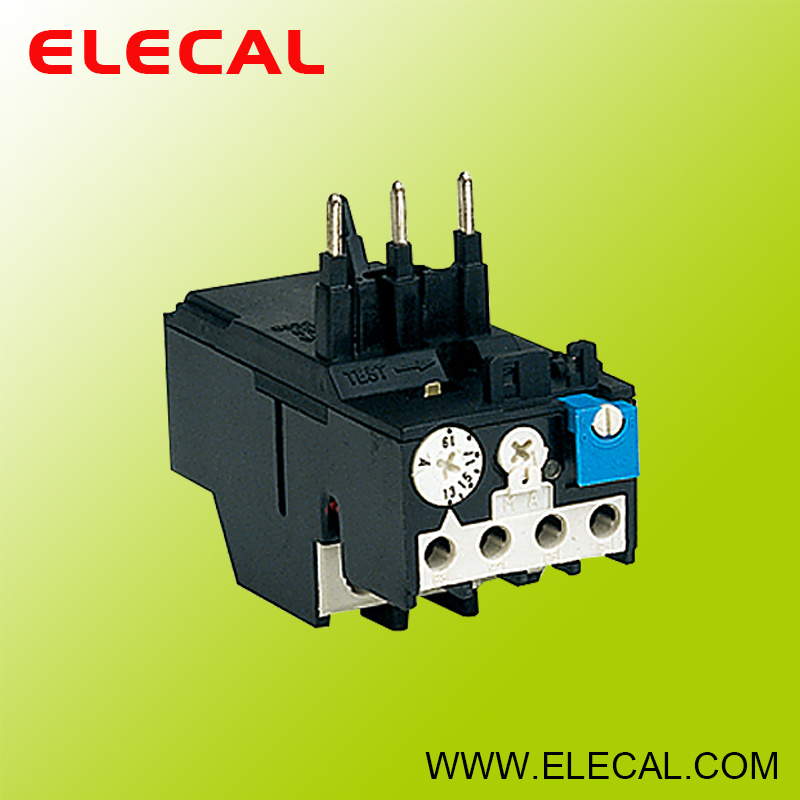

Jr29 Series Thermal Relay

Name: Jr29 Series Thermal Relay
Brand: all-electronics-online.com
SKU: 765831085
Availability: InStock
Rating: 4.7 (81 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JR29
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. Application

JR29 series thermal overload relay is mainly suitable for A.C.electric power system with volt-age up to 660V, current up to 500A, 50/60Hz. It is generally used for the protection of overloadand phase-lacking in circuits with three-phase induce motors and is often made up electromag-netic starters with CJX8 series A.C. contactors. The product conforms to IEC60947-4-1 stardand.Noter: JR29-16 is manually reset automatic to the other.

2. Motion Characteristic: Three-phase Balance Motion Time

No	Times the setting current	Motion time			Start conidition	Ambient temperature
1	1.05	>2h			cold state	20^oC±5^oC
2	1.2	<2h			heat state (Following the No.1 test)
3	1.5	<4min
4	7.2	10A	2s< TP ≤ 10S	≤ 63A	cold state
		10	4s< TP ≤ 10S	≤ 63A

3. Phase-losing Motion Characteristic

No	Times the setting current		Motion time	Start condition	Ambient temperature
	Any two phase	Another phase
1	1.0	0.9	>2h	cold state	20^oC±5^oC
2	1.15	0	<2h	heat state (Following the No.1 test)

4. Specification

Type	Setting Range(A)	For Contactor
JR29-16	0.11~0.16	CJX8-09 CJX8-16
	0.14~0.21
	0.19~0.29
	0.27~0.4
	0.35~0.52
	0.42~0.63
	0.55~0.83
	0.7~10.
	0.9~1.3
	1.1~1.5
	1.3~1.8
	1.5~2.1
	1.7~2.4
	2.1~3
	2.7~4
	3.4~4.5
	4~6
	5.2~7.5
	6.3~9
	7.5~11
	9~13
	12~17.6

Type	Setting Range(A)	For Contactor
JR29-25	0.1~0.16	CJX8-25 CJX8-30
	0.16~0.25
	0.25~0.4
	0.4~0.63
	0.63~1
	1~1.4
	1.3~1.8
	1.7~2.4
	2.2~3.1
	2.8~4
	3.5~5
	4.5~6.5
	6~8.5
	7.5~11
	10~14
	13~19
	18~25
	24~32
	-
	-
	-
	-

Type	Setting Range(A)	For Contactor
JR29-45	0.28~4	CJX8-37 CJX8-45
	0.35~0.52
	0.45~0.63
	0.55~0.83
	0.7~1
	0.86~1.3
	1.1~1.6
	1.4~2.1
	1.8~2.5
	2.2~3.3
	2.8~4
	3.2~5.2
	4.5~6.3
	5.5~8.3
	7~10
	8.6~13
	11~16
	14~21
	18~27
	25~35
	30~45
	-
	-
	-

Type	Setting Range(A)	For Contactor
JR29-85	6~10	CJX8-65 CJX8-85
	8~14
	12~20
	17~29
	25~40
	35~55
	45~70
	60~100
JR29-105	27~42	CJX8-105
	36~52
	45~63
	57~82
	70~105
	80~115
JR29-170	90~130	CJX8-170
	100~160
	140~200
JR29-250	100~160	CJX8-250
	160~250
	250~400
JR29-370	100~160	CJX8-370
	160~250
	250~400
	310~500

5. Outline and Mounting Dimension

JR29-16 Independent installation

JR29-25 Independent installation

JR29-45 Independent installation

JR29-85 Independent installation

JR29-105 Independent installation

JR29-250 Independent installation

6. Accessories

Pic
Description	JR29-16 mounting base	JR29-25 mounting base	JR29-75 mounting base
Application	Assembled with JR29-16 to form acomplete set	Assembled with JR29-25 to form acomplete set	Assembled with JR29-75 to form acomplete set
