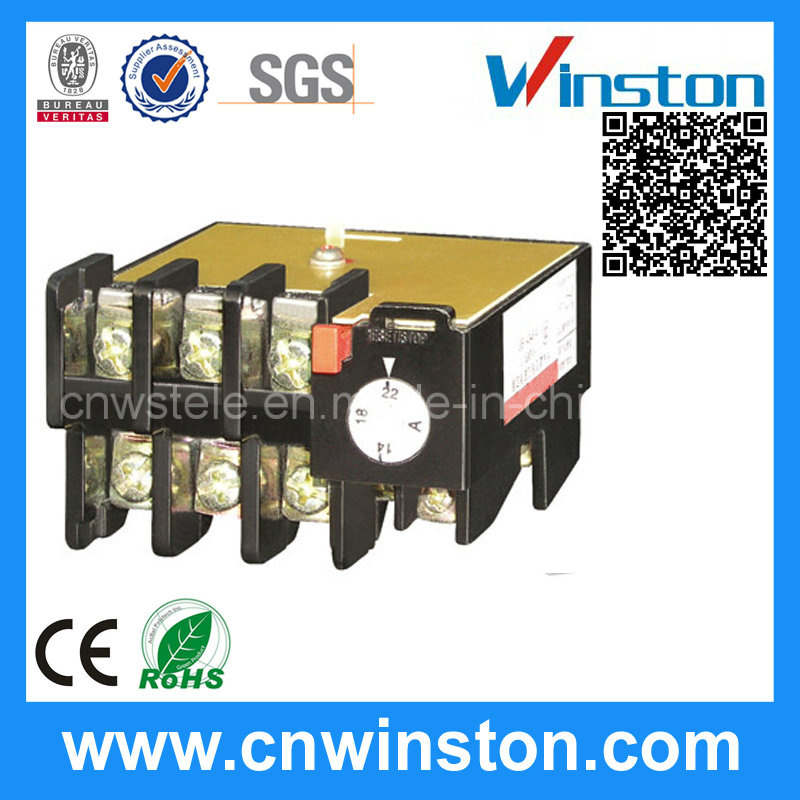

Jr36 Series Thermal Overload Relay with CE

Jr36 Series Thermal Overload Relay with CE
Price: US $ 4-20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: JR36-20, 63, 160
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand: Winston
Protect Feature: Sealed
Contact Load: Low Power
Certificate: CE
Trip Grade: 10A/10

Product Description

Product Description:
JR36-20
JR36-63
JR36-160

Application:

JR36 series thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690v, current up to 0.25-160A under 8-hours duty or uninterrupted duty.
Functions provided by these relays, are phase-failure protection, temperature compensation, ON/OFF indication, and manual/automatic reset.
Applicable Standards
National Standard: GB 14048
International Standard: IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units

Type


JR36-20


JR36-63


JR36-160


Rated operating current


20


63


160


Rated insulation voltage


690


690


690


Open-phase protection


YES


YES


YES


Automatic and manual reset


YES


YES


YES


Temperature compensation


YES


YES


YES


Test button


YES


YES


YES


Install method


Independent


Independent


Independent


Auxiliary contact


1NO+1NC


1NO+1NC


1NO+1NC


AC-15 380V Rated current


0.47


0.47


0.47


DC-13 220V Rated current


0.15


0.15


0.15


Normal cross section of wire (mm 2)


Main circuit


single core or stranded wire


1~6


6~16


16~70


terminal screw


M5


M6


M8


Auxiliary circuit


single core or stranded wire


2*(0.5~ 1)


2*(0.5~1)


2*(0.5~1)


terminal screw


M3


M3


M3
