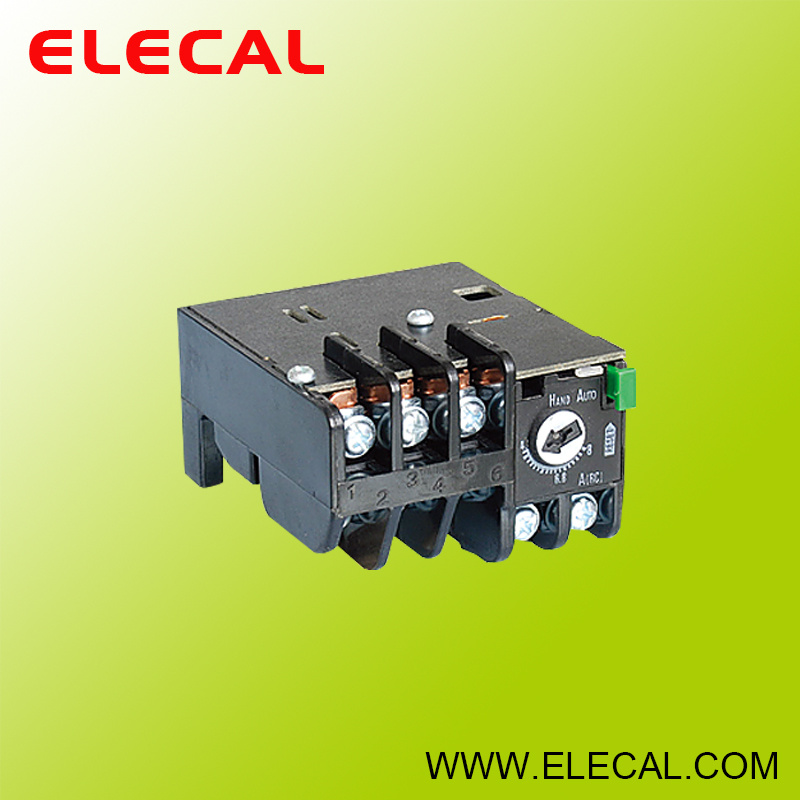

Jr56 Series Thermal Relay

Name: Jr56 Series Thermal Relay
Brand: all-electronics-online.com
SKU: 765856205
Availability: InStock
Rating: 4.8 (95 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JR56
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
JR56 series thermal relay is used in the circuit of 50/60Hz, rated insulation voltage 660V,rated current 0.3-95A for protecting the phase break when the electric motor is overloaded. Therelay has different mechanism and temperature compensation. It can be plugged in CJX3 seriesAC contactor. The product conforms to IEC60947-4-1.

2.Motion Characteristic: Three-phase Balance Motion Time

No	Times of the setting current	Motion time		Start conidition	Ambient temperature
1	1.05	>2h			Cold state	20±5^oC
2	1.2	<2h			Heat state (Following the No.1 test)
3	1.5	<4min			Heat state (Following the No.1 test)
4	7.2	10A	2s	≤63A	Cold state
4	7.2	10	4s	>63A	Cold state

3.Phase-losing Motion Characteristic

No	Times the setting current	Motion time	Start condition	Ambient temperature
Any two phases	Another phase
1	1.0	0.9	>2h	Cold state	20±5^oC
2	1.15	0	<2h	Heat state(Following the No.1 test)	20±5^oC

4.Specification

Type	Setting range (A)	For contactor
JR56-20	0.3~0.5	CJX3-10 CJX3-11 CJX3-12 CJX3-16 CJX3-18 CJX3-19 CJX3-25
	0.6~1
	1~1.6
	1.5~2.5
	2~3
	3~5
	4~6
	4.8~8

Type	Setting range (A)	For contactor
JR56-20	7.5~12
	12~18
	20~28
JR56-63	24~34	CJX3-35 CJX3-50 CJX3-65 CJX3-80
	25~40
	28~62
	48~80
	60~95

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on
