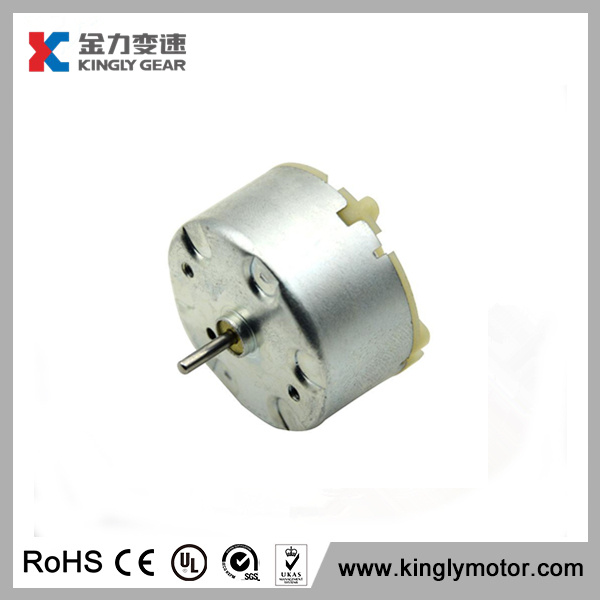

Jrf-500tb 32mm Diameter 3V 5V Micro DC Motor

Name: Jrf-500tb 32mm Diameter 3V 5V Micro DC Motor
Brand: all-electronics-online.com
SKU: 667802145
Availability: InStock
Rating: 4.9 (65 reviews)

Price:	US $ 0.3-1/Piece
Trade Terms:	by Sea/Air
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JRF-500TB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	DC 1.5V-12V
Brush:	Metal /Carbon Brush
DC Motor:	DC 1.5V-24V Micro DC Motor
Diameter:	32mm
Motor:	DC Motor
Power:	DC Power
Shaft:	2.0mm
Noise:	Low Noise
Material:	RoHS Material
Structure:	Totally Enclose Motor
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Certification:	Ce RoHS
Brand:	Kingly

Product Description

1.DC Micro Motor
2.With CE, RoHS ISO certificates.
3.Speed: Customizable.
4.Measurements: D32x19.5mm
5.Noise :Low noise
6,Brush type:Metal/carbon brush motor
7.Structure:Totally enclosed dc motor
8.Life :Long life ,torque :High torque
9.Voltage,speed ,torque ,shaft ....we can make according to customer's need

			NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	VOLTQAGE
MODEL			SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	OPERATING RANGE	NOMINAL	r/min	A	r/min	A	mM·m	g·cm	W	mM·m	g·cm	A
JRF-500TB-12560	DC 1.5-12.0V	DC 6V	2700	0.02	2180	0.084	1.13	11.6	0.26	5.88	60	0.35
JRF-500TB-12560	DC 1.5-12.0V	DC 9V	4000	0.023	3300	0.11	1.55	15.8	0.53	8.92	91	0.52
JRF-500TB-14415	DC 1.5-9.0V	DC 3V	1800	0.022	1430	0.085	0.82	8.4	0.12	4.02	41	0.33
JRF-500TB-14415	DC 1.5-9.0V	DC 6V	3700	0.028	3060	0.13	1.42	14.4	0.45	8.24	84	0.65

Core solutions to the world industrial 4.0 and related intelligent application sector!

Kingly Gear is a high-tech enterprise engaged in designing, manufacturing and selling micro gearbox, micro DC motor, AC motor, brushless motor and motor control system. It is the modern high-tech enterprise producing DC/AC motor and micro speed reduction system in large scale.

The main Applications:

L Intelligent industry: Industrial automization, Automatic lubricator, Industrial machine arm

L Intelligent agriculture: Greenhouse tent, Automatic sprinkler

L Intelligent logistics: Conveyor system

L Intelligent water and power grid: Water-electricity-gas value intelligent control

L Intelligent safeguard system: Electronic locks, Automatic door, automatic windows

L Intelligent home furnishing: Sweeper robot, Intelligent closestool, Switch,

L Intelligent environment protection:

L Intelligent transportation: Auto industry

L Intelligent medical treatment: Massager

L Intelligent entertainment: Automatic card collating machine, Stage lighting

Kingly has the production base in Huizhou of Guangdong and Huang Gang of Hubei respectively. Besides, it also sets directly subordinated branch companies in Germany in Europe and Shanghai/Ningbo/Hangzhou/Wenzhou/Chengdu in China.

Kingly has a group of qualified employees professionally engaging in R&D, production and sales. Except common micro motors and gear boxes, it also developed over 200 various special non-standard micro motors and gear boxes. It emphasizes intellectual properties, boasting dozens of patent for utility models and the copyright of motor control software.

By virtue of strong customized technology development ability and production and sales ability, its products are sold nationwide and also exported to Europe, the United States, Australia, Japan and Middle East.

Kingly will keep optimizing markets, continuously upgrade various hardware equipment and manufacturing process standards to satisfy customers, overtake industrial competitors and become the best optimal plan provider for micro intelligent transmission in China.

Company Vision: To be No. 1 brand in the customized precise transmission control system in China!

Enterprise positioning: Service and product provider for customized customized precise transmission control system!

Enterprise Mission: Provide core solutions to the world industrial 4.0 and related intelligent application sector!

Enterprise Tenet: Build the business through refined technology to meet customers' requirements; Win the competition through high quality and produce reliable products; Treat others with sincerity and provide qualified service.

Our tenet: Make enterprise with excelsior attitude, win customers with high quality, treat anybody with all sincerity!
