Jrf Pm460 Thermal Silicone Sheet Rubber Gap Pad

Name: Jrf Pm460 Thermal Silicone Sheet Rubber Gap Pad
Brand: all-electronics-online.com
SKU: 748900165
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

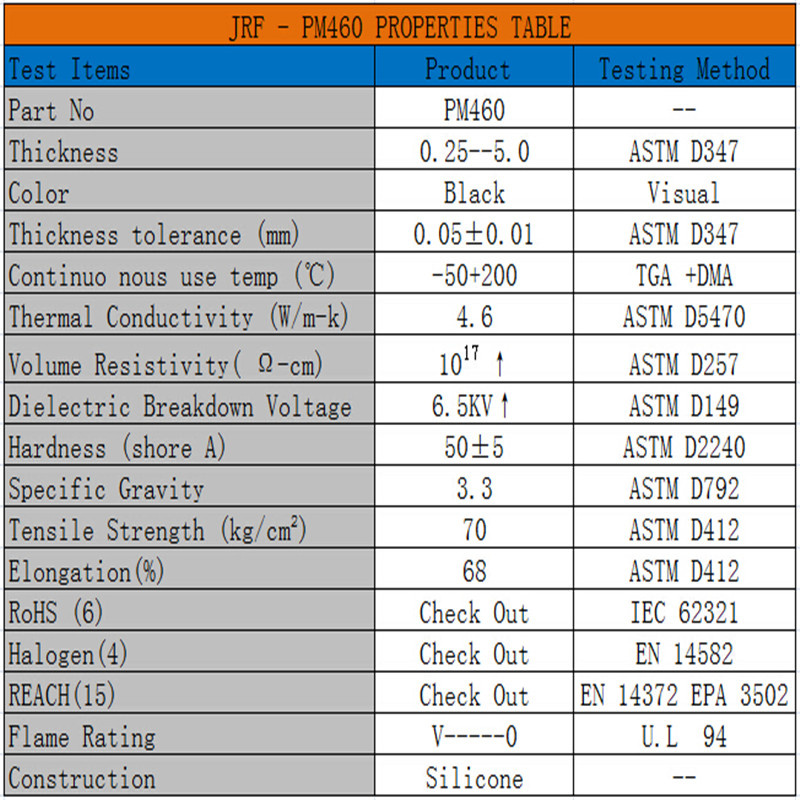

Prod Model:	PM460
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness Tolerance(Mm):	0.05+-0.01
Thickness(Mm):	0.25--5.0
Specific Gravity:	2.05
Hardness(Shore A):	50+-5
Thermal Conductivity(W/M-K):	4.6
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Jrft
Application:	Electronic Products
Color:	Blue

Product Description

Product Introduction
JRF-PM460 is based on the high thermal conductivity of silica, boron nitride and aluminum oxide powder mixed into, the product can meet the requirements of heat radiating occasions for high and stable insulation performance. The product has good thermal conductivity, at the same time, this product has the self adhesive ,application and operation is simple and convenient.

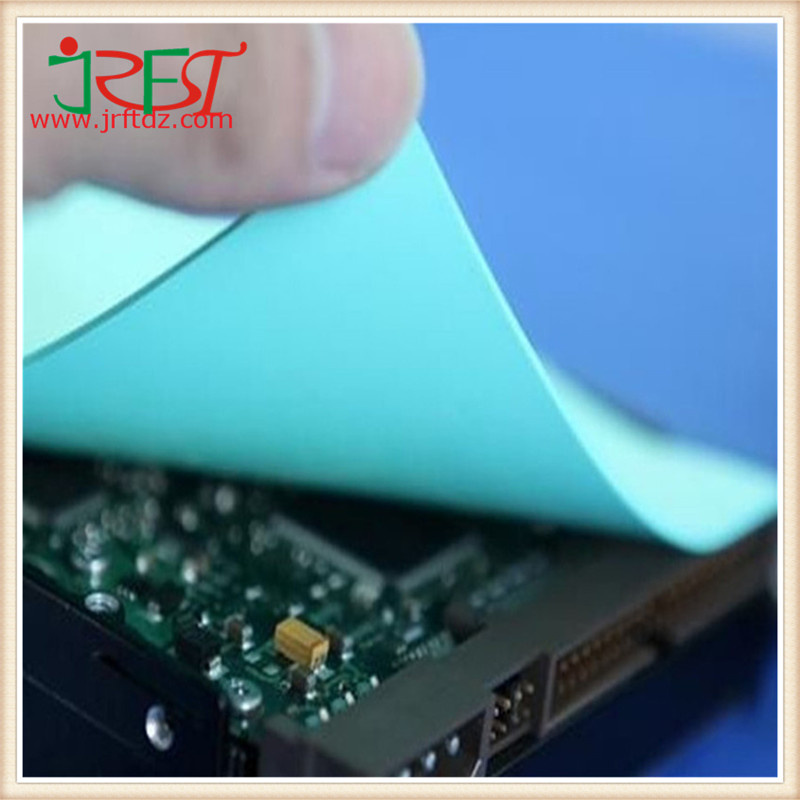

JRF-PM460 is use of soft silicone material thermal conductive, good insulation performance, soft and elastic characteristics, placed between the power heating device and heat dissipating structure, the power module generates heat effectively transmit to the radiating component.

Applications:
1. Car engine module and vehicle electronic equipment
2. Notebook computer, table computer CPU
3. Flat panel TV, mobile equipment, high-speed hard disk driver
4. Semiconductor and the radiating fin between
5. Computer, PC server, workstation
6. LED lighting device and mass storage device

Performance and characteristics:

1.High thermal conductivity, heat transfer coefficient 4.6W/m-k
2.Stable performance , low thermal resistance, effectively improve the heat transfer speed
3.Low hardness , its viscosity high, easy to use adhesive
4.By UL and V-O certification standards

Specification:
Standard size 310mm*310mm, 200mm*400mm according to customer needs cutting type
Basic thickness 0.25mm*5.0mm, special size and thickness can be customized
Itself is slightly viscous, if need to strengthen the adhesive can be according to customer' requirement.
Product color is mass production, if need special color can be adjusted according to the actual situation .

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
