| Prod Model: |
JRK-520 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC Motor: |
DC Motor |
| Voltage: |
DC1.5-24V |
| Speed: |
Constant Speed |
| Diameter: |
33mm |
| Motor: |
Micro Motor |
| Power: |
DC |
| Brush: |
Metal /Carbon Brush |
| Material: |
RoHS Material |
| Micro: |
12volt /24volt DC Motor |
| Shaft: |
Stainless Steel |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce RoHS |
| Brand: |
Kingly |
Product Description

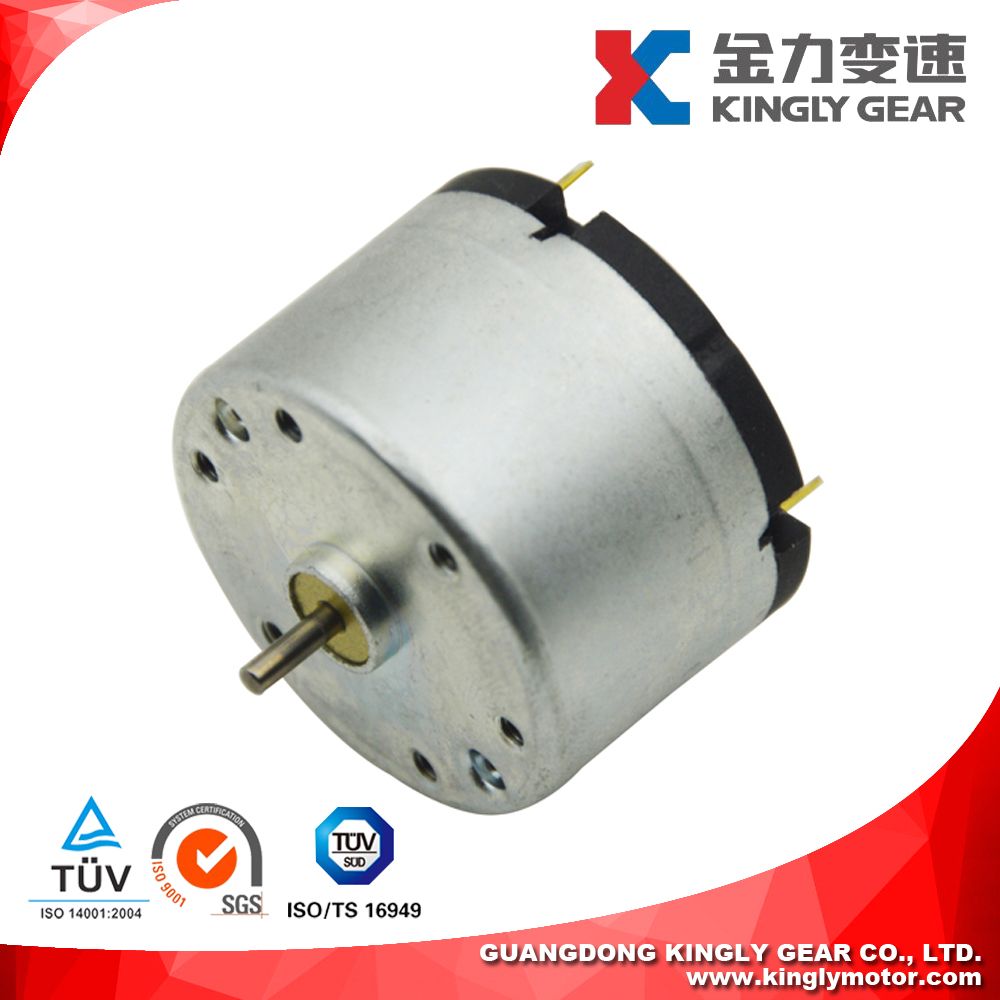

-DC Motor JRK-520
-Power of DC Motor: 0.5W-25W
-Voltage of DC Motor: 1.5V-24V
-Motor dimensions of DC Motor: D33mmxL23mm
-Metal/Carbon Brush
-Typical Applications: Printer, Copy Machine, Vending Machine, etc.
-Motor's specification and shaft length can be tailor-made according to customer's requirements.
| Model | Voltage | No Load | At Maximum Efficiency | Stall |
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A |
| JRK-520C-10700 | 6-24V | 12V Constant | 2650 | 0.015 | 1950 | 0.047 | 1.96 | 20 | 0.4 | 7.42 | 76 | 0.17 |
DC Motor
Typical Applications:
Copy Machine, Cash Register Hair Dryer
Vending Machine, Door Lock, Copy Machine
Massager/Vibrator, Radio Control Model
Fire Alarm, Air Freshener, CD Player/VCR
Household Appliances:Kitchen Appliance/Blood Pressure Meter
Output Power:Approx 0.07W-0.1W
Voltage:From 1.5v to 24v
Speed:From 2000rpm to 30000rpm
Torque:From 0.1g.Cm to 500g.Cm
Dia:6mm to 48mm
-Motor's specification and shaft length can be tailor-made according to customer's requirements.
