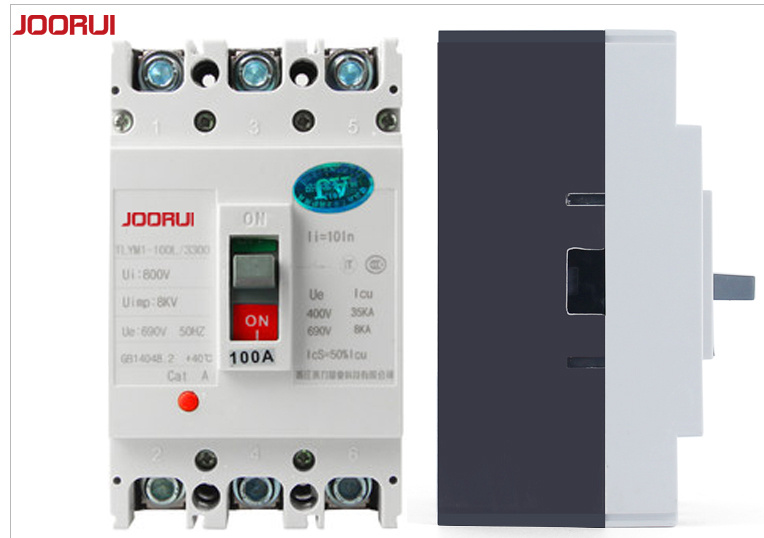

Jrm1 (CM1) 3p 63A-1600A Moulded Case Circuit Breaker

Name: Jrm1 (CM1) 3p 63A-1600A Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 725227092
Availability: InStock
Rating: 4.8 (108 reviews)

Price:	US $ 4.95-299/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JRM1
Pole No.:	2p, 3p, 4p
Brand:	ODM, OEM
Current:	63A to 1600A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

1: Product Description
JRM1 series moulded case circuit breaker is a new type product developed and manufactured by Adopting international advanced technology. It is supplied with rated insulation voltage 800V and used for circuit of AC 50Hz/60Hz, rated operation voltage AC 400V or below rated operation current up to 1600A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard

2: Parameters

Specifications
Product Name:	AC JRM1 MCCB
Model Type:	JRM1-63	JRM1-125	JRM1-250	JRM1-400	JRM1-630	JRM1-800	JRM1-1250	JRM1-1600
Pole No.	2P,3P,4P	2P,3P,4P	2P,3P,4P	3P,4P	3P,4P	3P,4P	3P,4P	3P,4P
Current	6A,10A,16A 20A,25A,32A 40A,50A,63A	80A 100A 125A	140A,160A 200A,225A 250A	250A 400A	400A 500A 630A	630A 700A 800A	800A 1000A 1250A	1250A 1600A
Breaking Capacity	35KA	35KA	35KA	50KA	50KA	75KA	75KA	75KA
Voltage	690V/800V
Standard	IEC/EN60947
Characteristic Curve	C	C
Working Temperature	"-5°"to +40°	"-5°"to +40°
Protection Degree	IP20	IP20
Electrical life	More than 8000times	More than 8000times
Mechanical life	More than 2000times	More than 2000times
Installation	35MM DIN RAIL	35MM DIN RAIL
Accessory	YES	YES
Installation Altitude	≤2000M	≤2000M

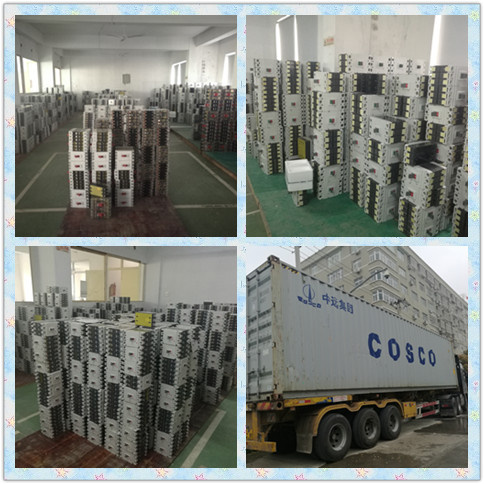

3: Pre-packing Shippment

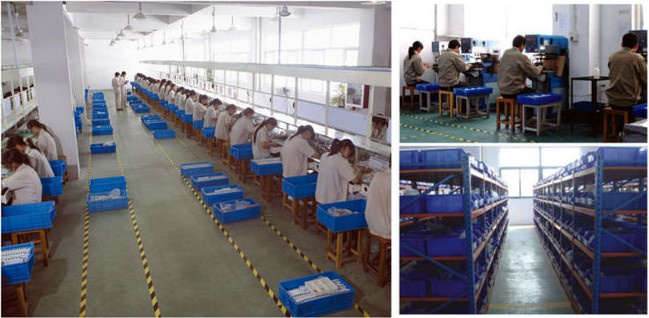

4: WorkShop View

5: Contact information

Yueqing JiuRui Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our company are MCCB, ATS, PANEL METERS, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.

Yueqing JiuRui Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to France, Australia, Philipine, Thailand, MID-East, Africa and 20 other countries and regions.

Yueqing JiuRui Electric Co., Ltd has always focused on research, development and innovation, We provide High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
