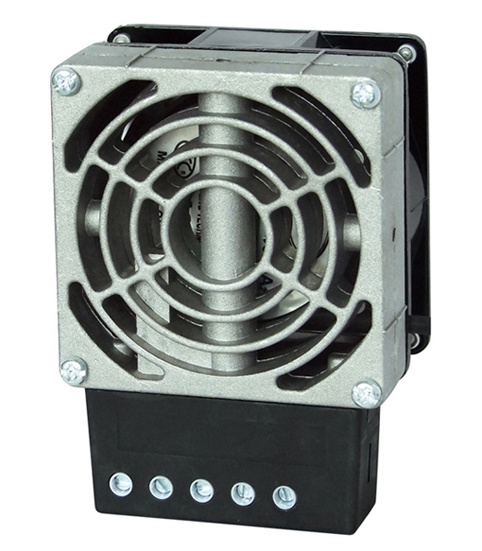

Jrqfm100-400ba-1 Cabinet Heater Thermostat Heater Temperature Control Heater
| Price: |
US $ 9-45/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
JRQFM100-400BA-1 |
| Operating Temperature: |
-45 ºC to 70 ºC |
Product Description
| Model | Heat output(W) | Pre-fuse(time -delay)
230VAC/120VAC | W*H*D(mm) | Weight(kg) |
| JRQFM100BA | 100W | 1A/1.4A | 80*112*22mm | 0.4 |
| JRQFM150BA | 150W | 1.25A/2A | 80*112*22mm | 0.4 |
| JRQFM200BA | 200W | 1.4A/2.5A | 119*151*22mm | 0.5 |
| JRQFM300BA | 300W | 2A/4A | 119*151*22mm | 0.5 |
| Heating element | high performance cartridge |
| Temperature safty cut-out | to protect against overheating in case of fan failure,automatic reset |
| Heater body | die-cast aluminium (glass bead blasted) |
| Electrical connection | 3 pole screw connector 2.5mm²,clamping torque 0.8Nm max |
| Connection casing | plastic according to UL94V-0,black |
| Installation | clip for 35mm Din rail,EN 60715 |
| Fitting position | Vertical airflow(air outlet up) |
| Operating/storage areas | -45ºC to +75ºC (-49°F ~ +158°F) |
| Operating/storage humidity | max.90% RH(non-condensing) |
| Protection class | IP20(earthed) |
| Axial fan ,ball bearing | airflow see table service life 50,000h at 25ºC(77°F) |
Company Profile
WHO ARE WE?
Our company, Leipole was established in June 2001 as a manufacturer that producing plastic parts of electrical products for ABB, Siemens, and Schneider. Years later, Leipole was engaged in the design and sale of Terminal blocks, which provide interconnection of electrical systems. In 2004, we registered LEIPOLE brand to distribute terminal blocks, fan filters, transformers and panel accessories all over the world. As reputation grows by high quality and customer service from feedbacks of end users, Leipole become a well-know brand in its industrial field.
ACHIEVE TO SUCCESS
Leipole believes QUALITY is critical. We committed ISO9001 from paper to real work in each position in the company. From supplier audits and incoming material inspection to quality control and final packing, we take each step very carefully to assure our product quality.
FIND WHERE WE ARE

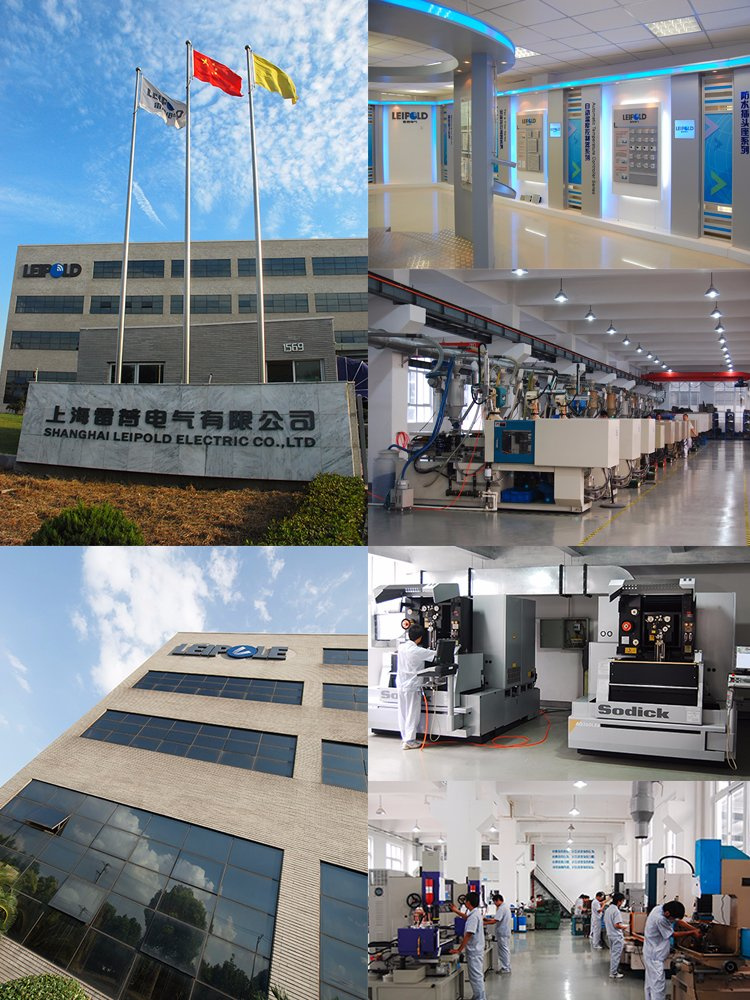

Our own 15,000 square meter factory strategically located in Shanghai. We have widely located our distribution offices in 34 cities in China and 10 cities or countries worldwide such as Singapore, Ho Chi Minh, Kuala Lumpur, Hong Kong, Johannesburg, Istanbul, Dubai, Ecuador, Sao Paulo, Poland and Denmark. Our talented, committed and globally-connected team of associates collaborate with our clients, and with each other, to understand and respond to our customers' needs. Our warranty policy is the better proof of our commitment to make things every day better.
