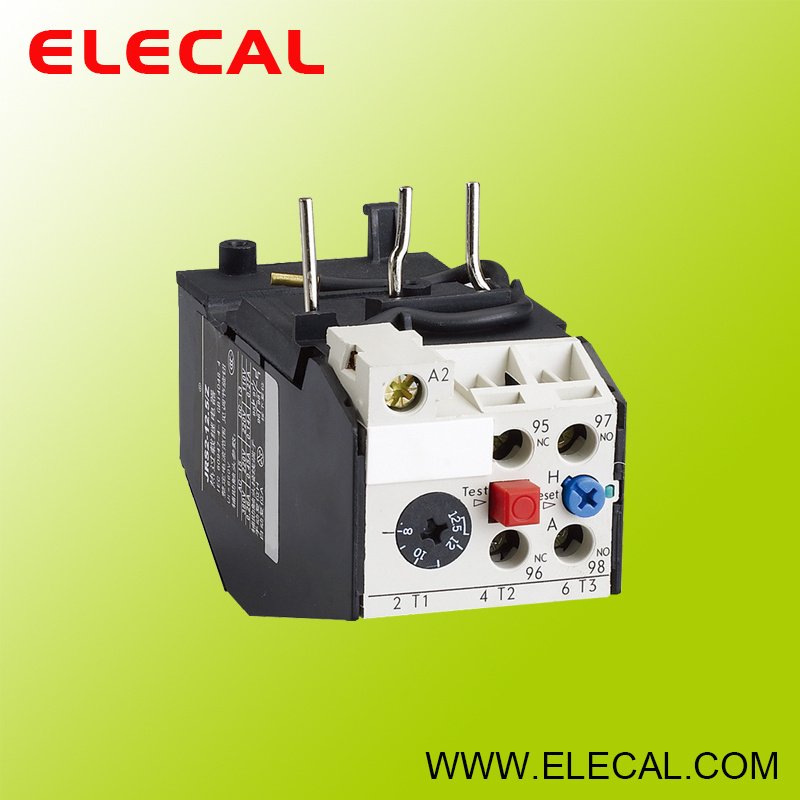

Jrs2 Series Thermal Relay

Name: Jrs2 Series Thermal Relay
Brand: all-electronics-online.com
SKU: 765825475
Availability: InStock
Rating: 4.5 (29 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JRS2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
JRS2 thermal relay is suitable for AC 50/60Hz, voltage up to 660V and current up to 630A,general AC motor of long or discontinuous long operation, used as overload protection and hasthe functions of breaking phase protection, temperature compensation, and trip indication. Itcan automatically and manually get back. It can be fixed with contactor CJX1 together, also beindependtly fixed. The product conforms to IEC60947-4-1 stardand.

2. Motion Characteristic: Three-phase Balance Motion Time

No	Times of the setting current	Motion time			Start condition	Ambient temperature
1	1.05	>2h			Cold state	20±5^oC
2	1.2	<2h			Heat state(Following the No.1 test)
3	1.5	<4min
4	7.2	10A	2s< Tp≤10s	≤63A	Cold state
		10	4s< Tp≤10s	>63A

3. Phase-losing Motion Characteristic

No	Times of the setting current		Motion time	Start condition	Ambienttemperature
	Any two phases	Another phase
1	1.0	0.9	>2h	Cold state	20±5^oC
2	1.15	0	<2h	Heat state(Following the No.1 test)

Type	Number	Setting range(A)	For contactor	Type	Number	Setting range(A)	For contactor
JRS2-12.5/Z	0A	0.1~0.16	CJX1-09 CJX1-12	JRS2-25/Z	0A	0.1~0.16	CJX1-16 CJX1-22
	0C	0.16~0.25			0C	0.16~0.25
	0E	0.25~0.4			0E	0.25~0.4
	0G	0.4~0.63			0G	0.4~0.63
	0J	0.63~1			0J	0.63~1
	0K	0.8~1.25			0K	0.8~1.25
	1A	1~1.6			1A	1~1.6
	1B	1.25~2			1B	1.25~2
	1C	1.6~2.5			1C	1.6~2.5
	1D	2~3.2			1D	2~3.2
	1E	2.5~4			1E	2.5~4
	1F	3.2~5			1F	3.2~5
	1G	4~6.3			1G	4~6.3
	1H	5~8			1H	5~8
	1J	6.3~10			1J	6.3~10
	1K	8~12.5			1K	8~12.5
	2S	10~14.5			2A	10~16
					2B	12.5~20
					2C	16~25
Type	Number	Setting range(A)	For contactor	Type	Number	Setting range(A)	For contactor
JRS2-32/Z	1G	4~6.3	CJX1-32	JRS2-63/F	0K	0.8~1.25	CJX1-09~63
	1J	6.3~10			1A	1~1.6
	2A	10~16			1B	1.25~2
	2B	12.5~20			1C	1.6~2.5
	2C	16~25			1D	2~3.2
	2D	20~32			1E	2.5~4
	2Q	25~36			1F	3.2~5
JRS2-45/Z	0A	0.1~0.16	CJX1-32 CJX1-38		1G	4~6.3
	0C	0.16~0.25			1H	5~8
	0E	0.25~0.4			1J	6.3~10
	0G	0.4~0.63			1K	8~12.5
	0J	0.63~1			2A	10~16
	0K	0.8~1.25			2B	12.5~20
	1A	1~1.6			2C	16~25
	1B	1.25~2			2D	20~32
	1C	1.6~2.5			2E	25~40
	1D	2~3.2			2M	32~45
	1E	2.5~4			2T	40~57
	1F	3.2~5			2P	50~63
	1G	4~6.3		JRS2-135	2H	55~80	CJX1-85 CJX1-110
	1H	5~8			2W	63~90
	1J	6.3~10			2X	80~110
	1K	8~12.5			3H	90~120
	2A	10~16			3J	110~135
	2B	12.5~20		JRS2-150	2H	55~80	CJX1-140
	2C	16~25			2W	63~90
	2D	20~32			2X	80~110
	2Q	25~36			3H	90~120
	2R	32~40			3J	110~135
	8M	36~45			3K	120~150
JRS2-80/Z	1G	4~6.3	CJX1-45 CJX1-63 CJX1-75 CJX1-85	JRS2-180/F	2H	55~80	CJX1-170CJX1-205
	8A	11~17			2W	63~90
	2B	12.5~20			2X	80~110
	2C	16~25			3H	90~120
	2D	20~32			3J	110~135
	2E	25~40			3K	120~150
	2F	32~50			3L	135~160
	2T	40~57			3M	150~180
	2P	50~63		JRS2-400	2K	80~125	CJX1-110~400
	2V	57~70			3B	125~200
	2U	63~80			3C	160~250
	8W	70~88			3D	200~320
JRS2-63/F	0A	0.1~0.16	CJX1-09~63		3E	250~400
	0C	0.16~0.25		JRS2-630	3F		CJX1-400
	0E	0.25~0.4			3G
	0G	0.4~0.63
	0J	0.63~1

5. Outline and Mounting Dimension

Type	JRS2-400	JRS2-630
a	50	52
b	146	156
c	70	71
Φ	11	11
e	171	186
f	25×4	30×5

6. Accessories

Pic
Description	JRS2 mounting base	JRS2 mounting base	JRS2 mounting base	Terminal block box
Application	Assembled withJRS2-12.5/Z to form a complete set	Assembled withJRS2-80/Z to form a complete set	Assembled withJRS2-45/Z to form a complete set	Assembled withJRS2-135/Z to form a complete set
