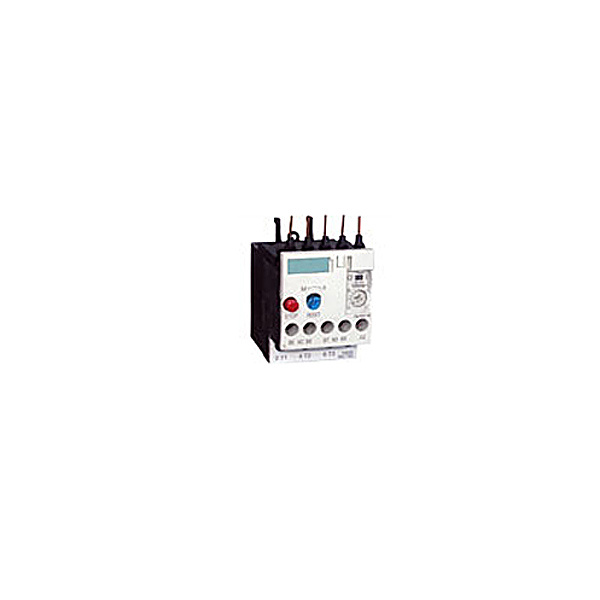

Jrs3 Series Thermal Relay

Name: Jrs3 Series Thermal Relay
Brand: all-electronics-online.com
SKU: 765825775
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
CJX7 Series AC contactors are suitable for frequency of 50/50Hz,rated insulation voltage up to 690-1000V,rated operational current up to 7A-95A at rated operational voltage up to 380V under the utilization category AC-3, They are mainly used for making breaking electric circuits at a ling distance and for frequent staring stopping and reversing control of AC motos,They comply witch IEC947,VDE0660, GB14048.

2.Motion characteristic:three-phase balance motion time

NO	Set current cinles	Notion time			Start conidition	Temperature
1	1.05	>2h			cold state	20±5C
2	1.5	<2h			heat state (following the NO.1 test)
3	2.2	<4min
4	7.2	10A	2s	≤63A	cold state
		10A	2s	>63A

3.Phase-losing motion characteristic

NO	Set current cinles		Notion time	Start conidition	Temperature
1	Arbitrary two phase	Three phase	Notion time	Start conidition	Temperature
2	1.0	0.9	>2h	cold state	20±5C
	1.15	0	<2h	heat state (following the NO.1 test)	20±5C

4.Specifications

type	Power controllable motor(kw)	setting range(A)	contactors insert
JRS3-12	0.04	0.11-0.16	CJX-1015 (3RT-1015) CJX-1016 (3RT-1016) CJX-1017 (3RT-1017)
	0.06	0.14-0.2
	0.06	0.18-0.25
	0.09	0.22-0.32
	0.09	0.28-0.4
	0.12	0.35-0.5
	0.18	0.45-0.63
	0.18	0.55-0.8
	0.25	0.7-1
	0.37	0.9-1.25
	0.55	1.1-1.6
	0.75	1.4-2
	0.75	1.8-2.5
	1.1	2.2-3.2
	1.5	2.8-4
	1.5	3.5-5
	2.2	4.5-6.3
	3	5.5-8
	4	7-10
	5.5	9-12
JRS3-25	0.75	1.8-2.5	CJX7-1023 (3RT-1023) CJX-1024 (3RT-1024
	1.1	2.2-3.2
	1.5	2.8-4
	1.5	3.5-5
	2.2	4.5-6.3
JRS3-25	3	5.5-8	CJX-1025 (3RT-1025) CJX-1026 (3RT-1026)
	4	7-10
	5.5	9-12.5
	7.5	11-16
	7.5	14-20
	11	17-22
	11	20-55
JRS3-50	3	5.5-8	CJX-1034 (3RT-1034) CJX-1035 (3RT-1035) CJX-1036 (3RT-1036)
	4	7-10
	5.5	9-12.5
	7.5	11-16
	7.5	14-20
	11	18-25
	15	22-32
	18.5	28-40
	22	36-45
	22	40-50
JRS3-100	11	18-25	CJX-1044 (3RT-1044) CJX-1045 (3RT-1045) CJX-1046 (3RT-1046)
	15	22-32
	18.5	28-40
	22	36-50
	30	45-63
	37	57-75
	45	70-90
	45	800-100
