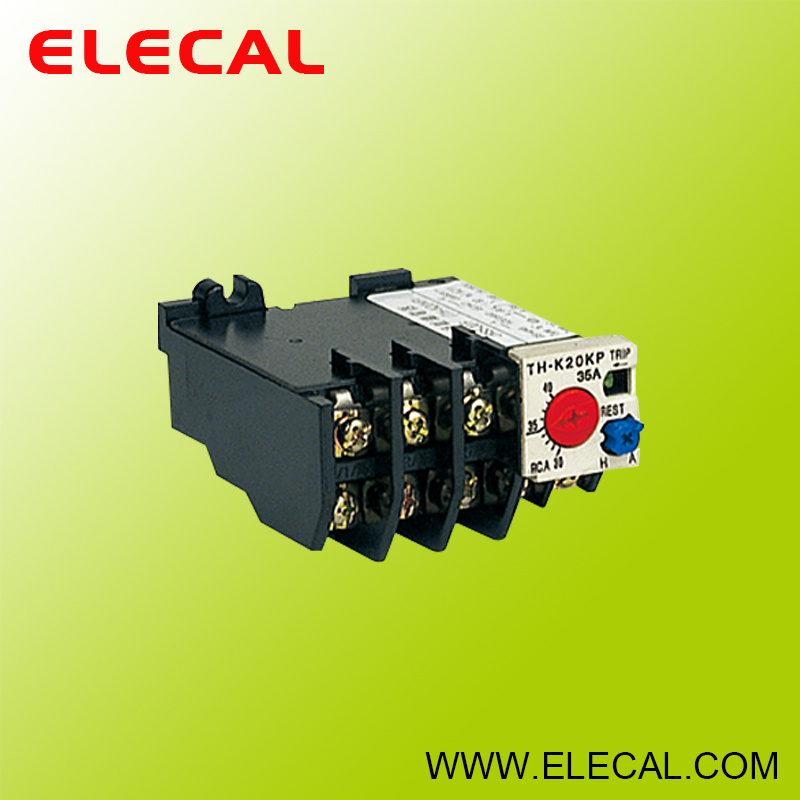

Jrs5 Series Thermal Relay

Name: Jrs5 Series Thermal Relay
Brand: all-electronics-online.com
SKU: 765826115
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JRS5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1.Application
JRS5 thermal relay is suitable for overload protection of AC motor operated on 8-houres dutyor uninterupted duty. The overload protected AC motor with frequency 50Hz, voltage up to660V, current up to 105A. Several functions provided by these relays are: phase-failure protection,temperature compensation, ON/OFF indication and manual/automatic reset. The product con-forms to IEC60947-4-1 stardand.

2. Motion Characteristic: Three-phase Balance Motion Time

No	Times of thesetting current	Motion time			Start condition	Ambienttemperature
1	1.05	>2h			Cold state	20±5^oC
2	1.2	<2h			Heat state (Following the No.1 test)
3	1.5	<4min
4	7.2	10A	2s < Tp≤10s	≤63A	Cold state
		10	4s < Tp ≤10s	>63A

3. Phase-losing Motion Characteristic

No	Times of the setting current		Motiontime	Start condition	Ambient temperature
	Any two phases	Another phase
1	1.0	0.9	>2h	Cold state	20±5^oC
2	1.15	0	< 2h	Heat state(Following the No.1 test)

4. Specification

Type	Setting range(A)	Forcontactor
JRS5-12/Z	0.2~0.28	S-K10 S-K11 S-K12 S-K18 S-K20 S-K21
	0.4~0.6
	0.55~0.85
	0.7~1.1
	1~1.6
	1.4~2
	1.7~2.5
	2~3
	2.8~4.4
	4~6
	5.2~8
	7~11
	9~13
JRS5-20/F	0.2~0.28	S-K18 S-K20 S-K21 S-K25 S-K35
	0.28~0.42
	0.4~0.6
	0.55~0.85
	0.7~1.1
	1~1.6
	1.4~2
	1.7~2.5
JRS5-20/F	2~3	S-K18 S-K20 S-K21 S-K25 S-K35
	2.8~4.4
	4~6
	5.2~8
	7~11
	9~13
	12~18
	16~22
	18~26
	24~34
	30~40
JRS5-60/F	12~18	S-K50 S-K65 S-K80 S-K95
	16~22
	18~26
	24~34
	30~40
	34~50
	43~65
	54~80
	65~93
	85~105

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
