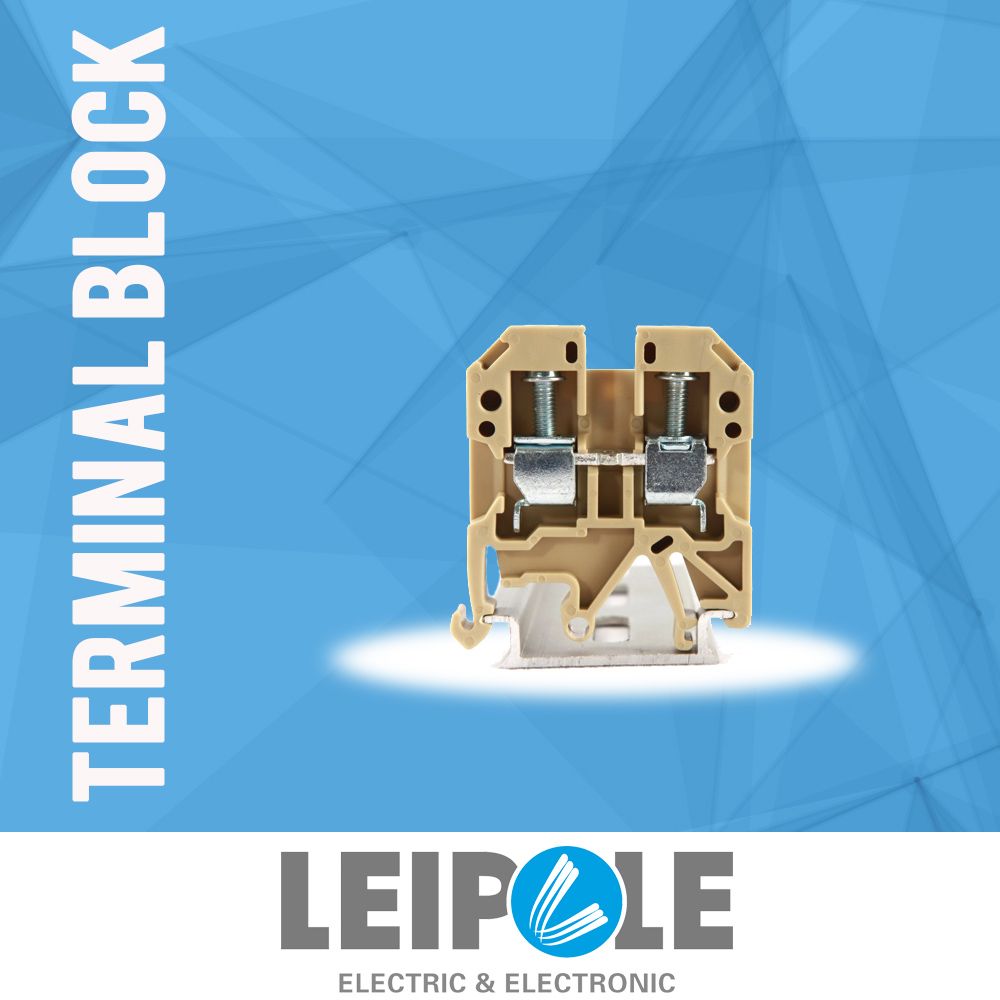

Jsak6en Economic Terminal Block Wiring Connector
| Price: |
US $ 0.1-0.12/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
JSAK6EN |
| Inflammability Class: |
UL94V0 |
| Insulating Material: |
PA66 |
| Connection Standard: |
IEC 60947-7-1 |
| Application: |
Wiring Connector |
| Environmental Protection: |
General |
| Connection Mode: |
Threaded Connection |
| Shape: |
Rectangle |
| Contact Termination Form: |
Screws Fixed |
| Brand: |
Leipole |
Product Description
Technical Data| Connection Standard | IEC60947-7-1 |
| Rated current | 41A |
| Rated voltage | 800V |
| Cross section | 0.2-6mm2 |
| Packing | 50 |
| Connection type | Screw connection |
| Width | 42mm |
| Height | 48mm |
| Thickness | 8mm |
| Inflammability class | V0 |
| Accessories | Model | Order Code |
| End cover :thickness 1.5mm | AP4-10 | 1011.023 |
Centre type jumper bar:
10 potential,separable
3/5/10 potential | 6EN | |
| Q 2 poles,3 poles,10 poles | |
| End clamp | JEW35 | 1011.037 |
| Continuous number of printing | DEK6(1...10) | 1011.045 |
| Din rail type | NS35/7.5 | 1016.002 |
| NS35/15 | 1016.003 |
| NS32 | 1016.004 |
Company Profile
WHO ARE WE?
Our company, Leipole was established in June 2001 as a manufacturer that producing plastic parts of electrical products for ABB, Siemens, and Schneider. Years later, Leipole was engaged in the design and sale of Terminal blocks, which provide interconnection of electrical systems. In 2004, we registered LEIPOLE brand to distribute terminal blocks, fan filters, transformers and panel accessories all over the world. As reputation grows by high quality and customer service from feedbacks of end users, Leipole become a well-know brand in its industrial field.
ACHIEVE TO SUCCESS
Leipole believes QUALITY is critical. We committed ISO9001 from paper to real work in each position in the company. From supplier audits and incoming material inspection to quality control and final packing, we take each step very carefully to assure our product quality.
FIND WHERE WE ARE

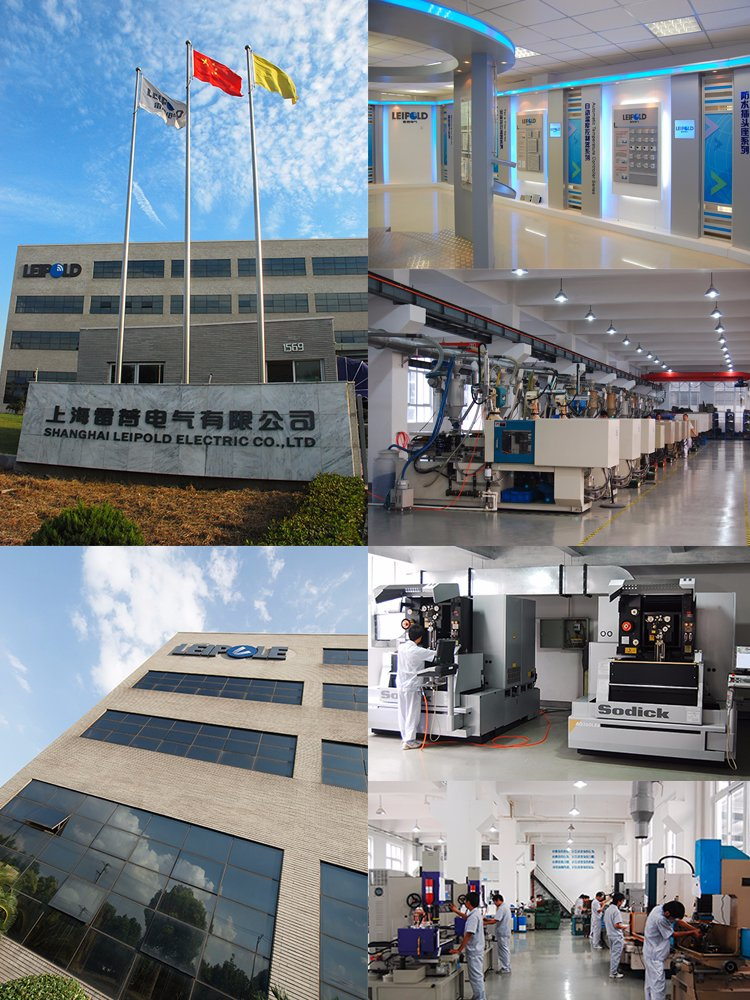

Our own 15,000 square meter factory strategically located in Shanghai. We have widely located our distribution offices in 34 cities in China and 10 cities or countries worldwide such as Singapore, Ho Chi Minh, Kuala Lumpur, Hong Kong, Johannesburg, Istanbul, Dubai, Ecuador, Sao Paulo, Poland and Denmark. Our talented, committed and globally-connected team of associates collaborate with our clients, and with each other, to understand and respond to our customers' needs. Our warranty policy is the better proof of our commitment to make things every day better.
FAQsWhy should we choose Leipole products?
A: LEIPOLE is a leading manufacture produce terminal blocks, fan filters, thermostats, heaters, and transformer. It also provides other panel accessories such as cabinet lighting, bus bar system, distribution boxes and cable glands to meet various customers from different industry fields.
How can we ensure product quality from Leipole?
A: LEIPOLE believes QUALITY is critical. We committed ISO9001 from paper to real work in each position in the company. From supplier audits and incoming material inspection to quality control and final packing, we take each step very carefully to assure our product quality. We also provide 12 months warranty into operation.
Where can we buy Leipole products?
A: LEIPOLE has been building its sales network throughout the world. You can buy from your local distributors from our 11 partners in different countries and regions. For those clients who are unable to buy in their local, we can provide direct sales from our office in China or nearest distributor.
I am interested in becoming a distributor of Leipole Electric, how can I apply?
A: LEIPOLE welcomes every potential customers to work together in the future, please apply for the distributor by sending email
WHO ARE WE?
Our company, Leipole was established in June 2001 as a manufacturer that producing plastic parts of electrical products for ABB, Siemens, and Schneider. Years later, Leipole was engaged in the design and sale of Terminal blocks, which provide interconnection of electrical systems. In 2004, we registered LEIPOLE brand to distribute terminal blocks, fan filters, transformers and panel accessories all over the world. As reputation grows by high quality and customer service from feedbacks of end users, Leipole become a well-know brand in its industrial field.
ACHIEVE TO SUCCESS
Leipole believes QUALITY is critical. We committed ISO9001 from paper to real work in each position in the company. From supplier audits and incoming material inspection to quality control and final packing, we take each step very carefully to assure our product quality.
FIND WHERE WE ARE
Our own 15, 000 square meter factory strategically located in Shanghai. We have widely located our distribution offices in 34 cities in China and 10 cities or countries worldwide such as Singapore, Ho Chi Minh, Kuala Lumpur, Hong Kong, Johannesburg, Istanbul, Dubai, Ecuador, Sao Paulo, Poland and Denmark. Our talented, committed and globally-connected team of associates collaborate with our clients, and with each other, to understand and respond to our customers' needs. Our warranty policy is the better proof of our commitment to make things every day better.
WHO ARE WE?
Our company, Leipole was established in June 2001 as a manufacturer that producing plastic parts of electrical products for ABB, Siemens, and Schneider. Years later, Leipole was engaged in the design and sale of Terminal blocks, which provide interconnection of electrical systems. In 2004, we registered LEIPOLE brand to distribute terminal blocks, fan filters, transformers and panel accessories all over the world. As reputation grows by high quality and customer service from feedbacks of end users, Leipole become a well-know brand in its industrial field.
ACHIEVE TO SUCCESS
Leipole believes QUALITY is critical. We committed ISO9001 from paper to real work in each position in the company. From supplier audits and incoming material inspection to quality control and final packing, we take each step very carefully to assure our product quality.
FIND WHERE WE ARE
Our own 15, 000 square meter factory strategically located in Shanghai. We have widely located our distribution offices in 34 cities in China and 10 cities or countries worldwide such as Singapore, Ho Chi Minh, Kuala Lumpur, Hong Kong, Johannesburg, Istanbul, Dubai, Ecuador, Sao Paulo, Poland and Denmark. Our talented, committed and globally-connected team of associates collaborate with our clients, and with each other, to understand and respond to our customers' needs. Our warranty policy is the better proof of our commitment to make things every day better.
