Changzhou Jinsanshi Mechatronics Co., Ltd. >> Jss NEMA 8 Small Lead Stepper Motor with 100mm Lead Screw From China Factory

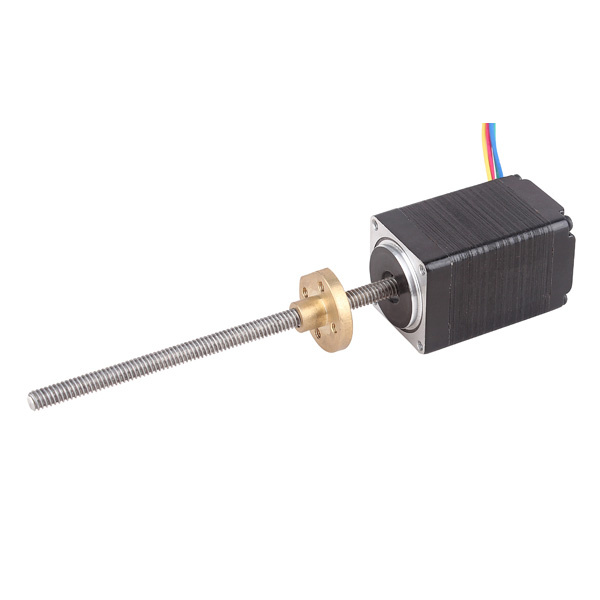

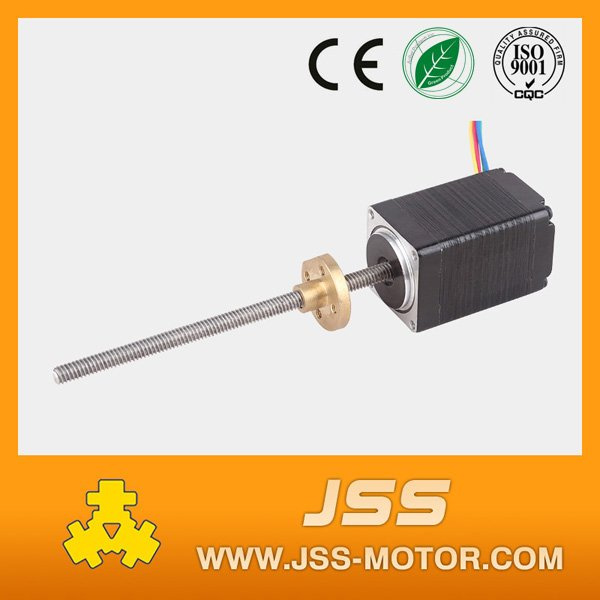

Jss NEMA 8 Small Lead Stepper Motor with 100mm Lead Screw From China Factory

Jss NEMA 8 Small Lead Stepper Motor with 100mm Lead Screw From China Factory
Price: US $ 35/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 28HSL30-0604-A05-E100
Holding Torque: 0.2kg.Cm
Rated Current: 0.6A
Phase Resistance: 6.5 Ω
Voltage: 3.9V
Phase Inductance: 1.7mh
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Electromechanical
Operate Mode: Driver
Certification: Ce
Brand: Jss

Product Description

Products Description

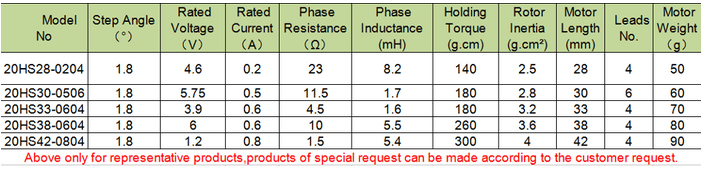

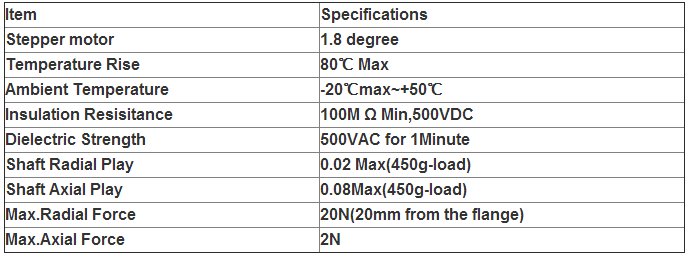

Specification

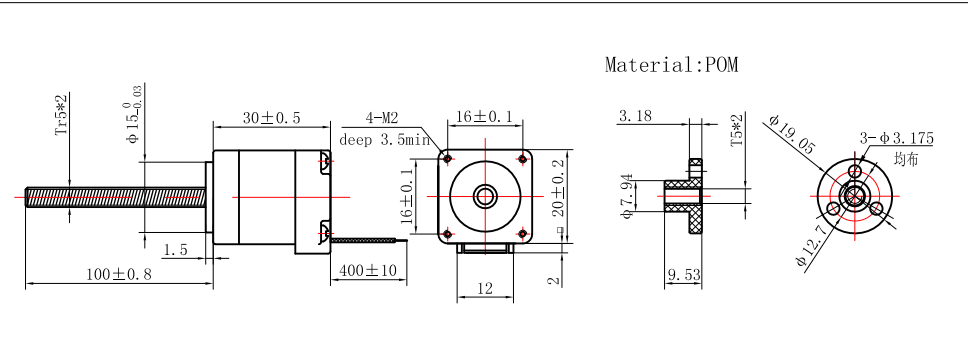

Drewing-100mm standrad

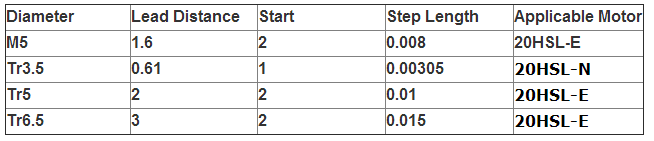

Lead screw specification


Certifaication

Our service
FOQ

1.Q:Can I get some samples?

   A:We are honored to offer you samples for quality check.

2.Q:Do you have the products in stock?

   A:Our products are manufactured according to your order except the normal products.

3.Q:What's the delivery time?

   A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

   A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.

5.Q:What's your warranty terms?
   A:  We offer different warranty terms for different products. Please contact with us for details.



Name:Tony zheng



Phone: +86-18896754675



Our website :www.jss-motor.com



Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as the guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.
