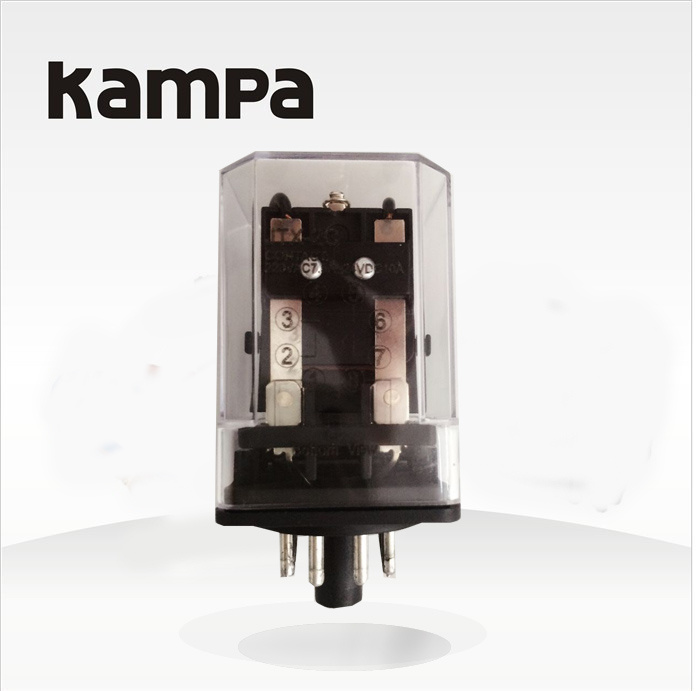

Jtx-2c 2z 8 Pins 10A 24V DC General Purpose Power Relay

Name: Jtx-2c 2z 8 Pins 10A 24V DC General Purpose Power Relay
Brand: all-electronics-online.com
SKU: 818675235
Availability: InStock
Rating: 4.3 (92 reviews)

Price:	US $ 6.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JTX-2C
Contact Type:	2z,2h,2D
Contact Overload:	10A
Rated Coil Power:	DC2.0W,AC3.5va
Coil Specification:	DC6V~220X AC6V~380V

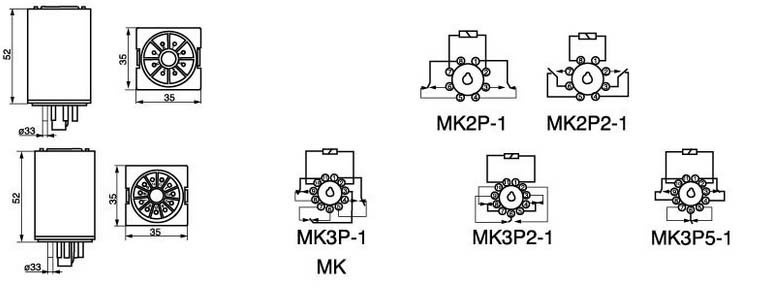

Dimension:	35.5X35.5X55.5mm

Product Description

Contact	Contact form	2C 3C
	Rated load	10A/250V 28VDC(resistance) 7A/250VAC 28VDC
	Chargepower	2500VA,280W
	Contact resistance	≤50mΩ
	Material	Siliver Alloy
	Electrial life	≥100000 Time
	Mechanical	≥1000000 Time
Plok up voltage (at 25ºC)		≤80%Un
Drop out voltage(at 25 ºC)		DC:≥15%Un.AC:≥30% Un
Max continuous voltage		110%
Insulation resistance		≥100MΩ(500VDC)
Coil normal power	DC(W)	1.5
	AC(VA)	2.7
Operate time		≤30ms
Release time		≤20ms
Dielectric Strength	Between open contact	1200VAC/1min (leak the electric current 1MA)
	Beteween contact circults	1200VAC/1min (leak the electric current 1MA)
	Between contact andcil	2500VAC/1min (leak the electric current 1MA)
Ambient temperature		-10~+40ºC
Ambient pressure		35%`85%RH
Atmospheric		86~106KPa
Shock resistance		10G (half a wave of pulses od sine:11ms)
Vibration resistance		10~50HZ 1.5mm Double Amplitude 1.5mm
Layout style		insert type
Weight		75g

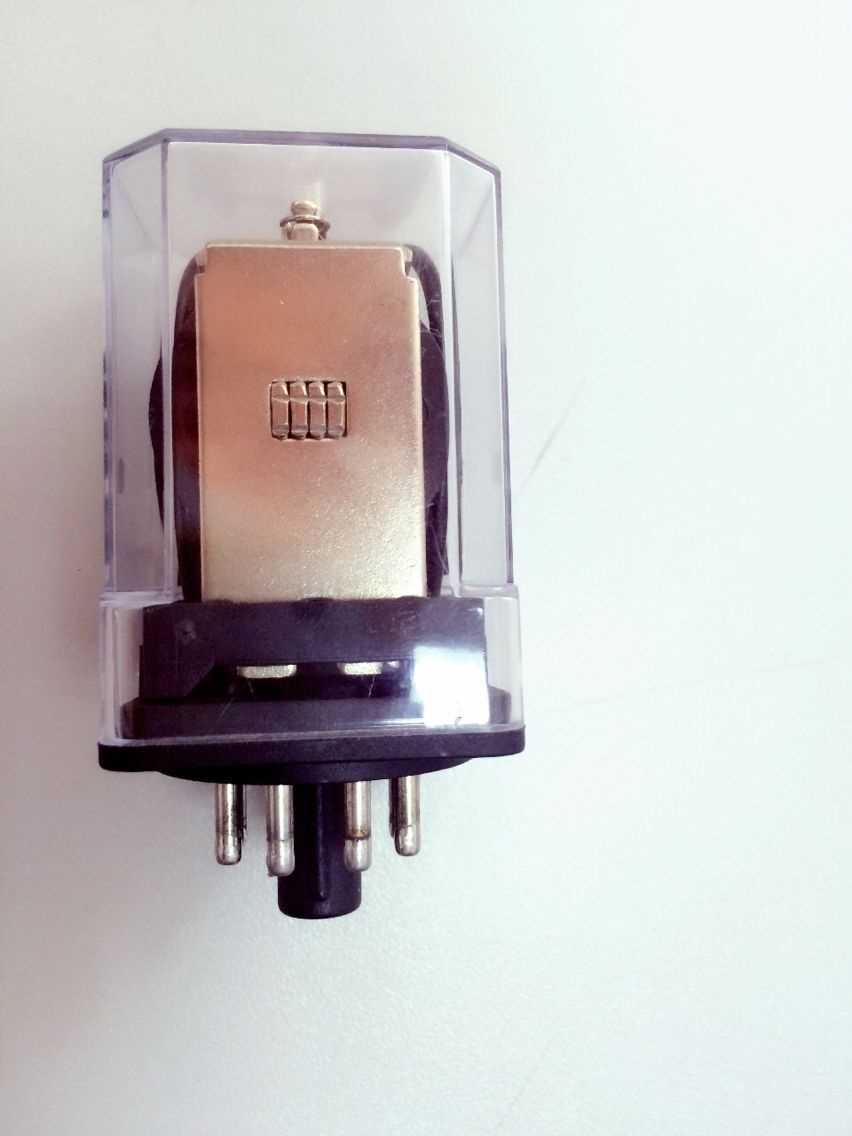

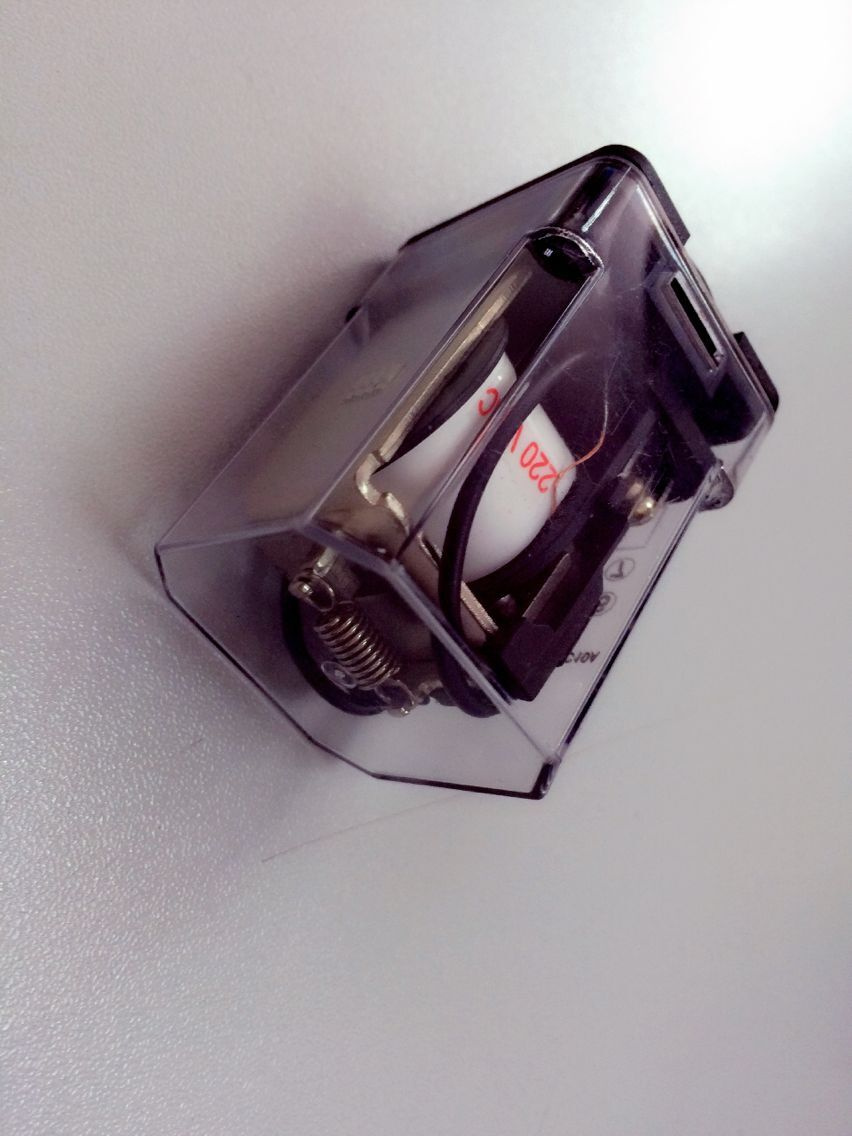

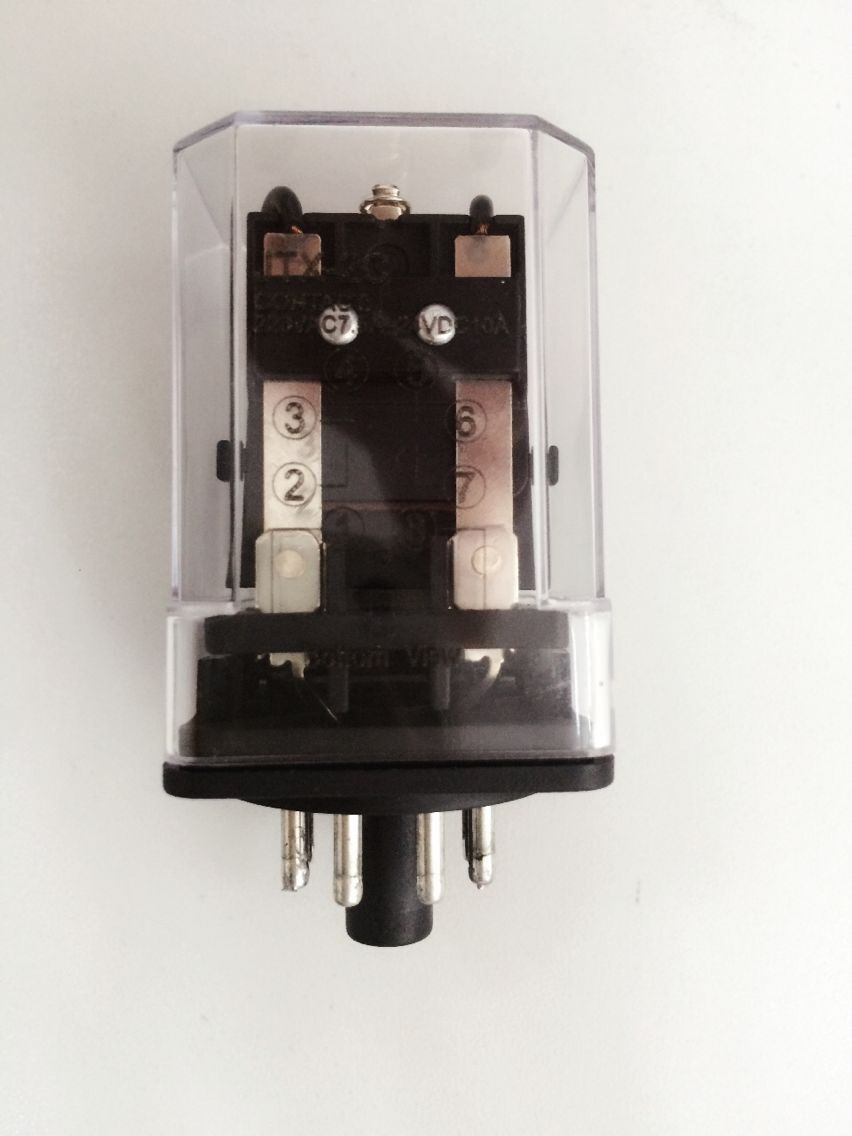

2.Picture
