Jtx-3c 10A Coil 220VDC Miniature General Purpose Electrical Relay

Name: Jtx-3c 10A Coil 220VDC Miniature General Purpose Electrical Relay
Brand: all-electronics-online.com
SKU: 818506605
Availability: InStock
Rating: 4.8 (50 reviews)

Price:	US $ 2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JTX-3C
Contact Type:	2z,2h,2D
Contact Overload:	10A
Rated Coil Power:	DC2.0W,AC3.5va
Coil Specification:	DC6V~220X AC6V~380V
Dimension:	35.5X35.5X55.5mm

Product Description

JTX-3C 3PDT 11 Pin 10a 220VAC power protection relay with socket
1.Specification
Contact Form: 3Z (3C)
Initial Contact Resistance:100mΩ(1A 6VDC)
Contact Material:Silver alloy  AgCdO
Contact Rating(Res. Load):10A 250VAC/30VDC
Coil Voltage:3VDC/5VDC/6VDC/9VDC/12VDC/18VDC/24VDC/48VDC
Max. Switching Voltage:250VAC/30VDC
Max. Switching Current:10A
Max. Switching Power:300W 2500VA
Mechanical life:1×107 times
Electrical life:1×105 times
Initial Insulation Resistance:100mΩ,500VDC
Dielectric Strength: Between coil contacts  1500VAC 1min.
   Between open contacts  1000VAC
     Electric contact group   1500VAC 1min.
Operate Time (at nomi. Volt):10ms
Release Time (at nomi. Volt):5ms
Temperature rise:40º
Impact Resistance: Stability  100m/s2 ; Intensity  1000m/s2
Vibration Resistance:1mm 10~55Hz
Humidity:35%~95%R.H
Temperature:-40º ~ +70º
Termination:PCB and Plug type leading-out terminal
Construction: Dust cover
Coil power:DC:1.5W    AC:2.5VA

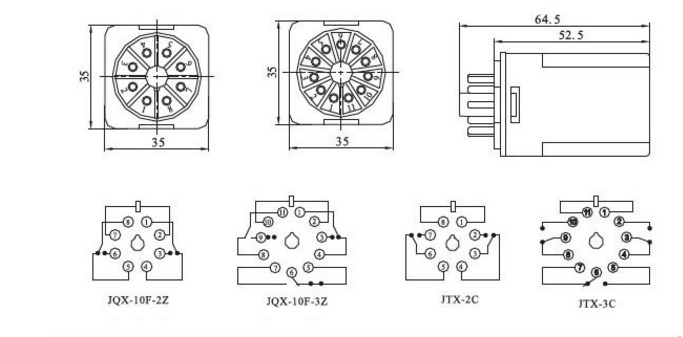

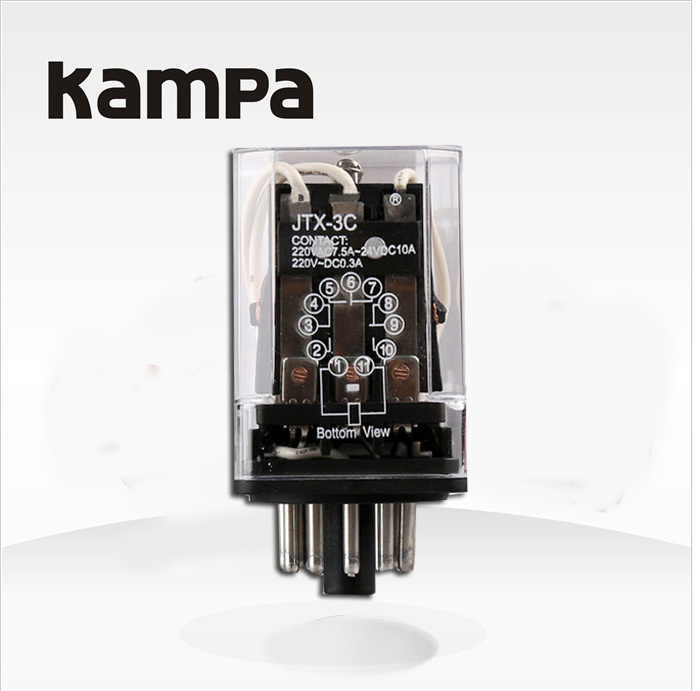

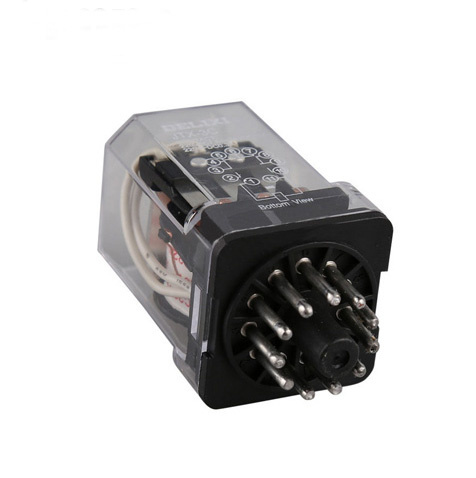

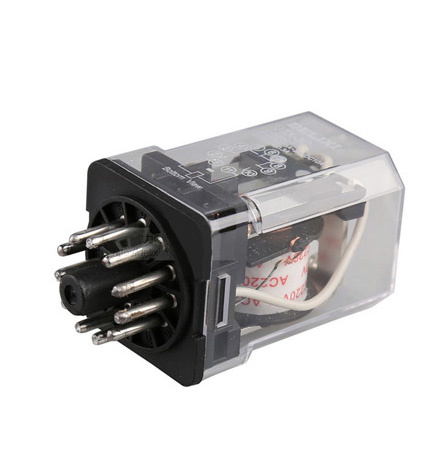

2.PICTURE
