Utility Electrical Co., Ltd. >> Jut2-10 Sak 10entype Wire Connector Terminal Weidmuller Terminal Blocks Screw Type

Jut2-10 Sak 10entype Wire Connector Terminal Weidmuller Terminal Blocks Screw Type

Jut2-10 Sak 10entype Wire Connector Terminal Weidmuller Terminal Blocks Screw Type
Price: US $ 0.334/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: JUT2-10
Application: Conduct Electricity
Type: Screw Type Terminal Blocks
Material: PA66,Copper,Brass
Certification: TUV Ce
Brand: Utl

Product Description

Din Rail Terminal Connector

PHOENIX CONTACTUTL MODEL WEIDMULLERUTL MODEL
UK 1.5NJUT1-1.5SAK 2.5ENJUT2-2.5
UK 2.5N/UK 3NJUT1-2.5SAK 4ENJUT2-4
UK 2.5BJUT1-2.5BSAK 6ENJUT2-6
UK 5NJUT1-4SAK 10ENJUT2-10
UK 6NJUT1-6SAK 16ENJUT2-16
UK 10NJUT1-10SAK 35ENJUT2-35
UK 16NJUT1-16SAK 70/35JUT2-70
UK 35N/UKH 25JUT1-35EK 2.5/35JUT2-2.5PE
UKH 50JUT1-50EK 4/35JUT2-4PE
UKH 70/UKH 95JUT1-95EK 6/35JUT2-6PE
UKH 150JUT1-150EK 10/35JUT2-10PE
UKH 240JUT1-240EK 16/35JUT2-16PE
USLKG 1.5NJUT1-1.5PEEK 35/35JUT2-35PE
USLKG 2.5JUT1-2.5B/PEASK 1/ENJUT2-4RD
USLKG 2.5N/USLKG 3JUT1-2.5PEEW 35E/2
USLKG 4/USLKG 5JUT1-4PEAKB 2.5JUT2-2.5E



Parameter


Thickness10mm
Width42mm
Height52mm
current57

Voltage

800
AWG20-6
IEC60947-7-1

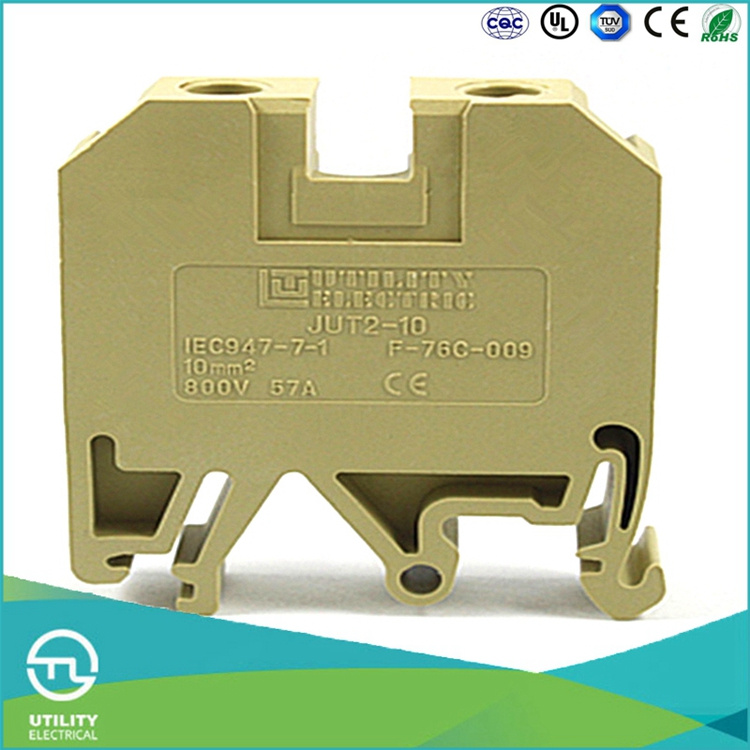

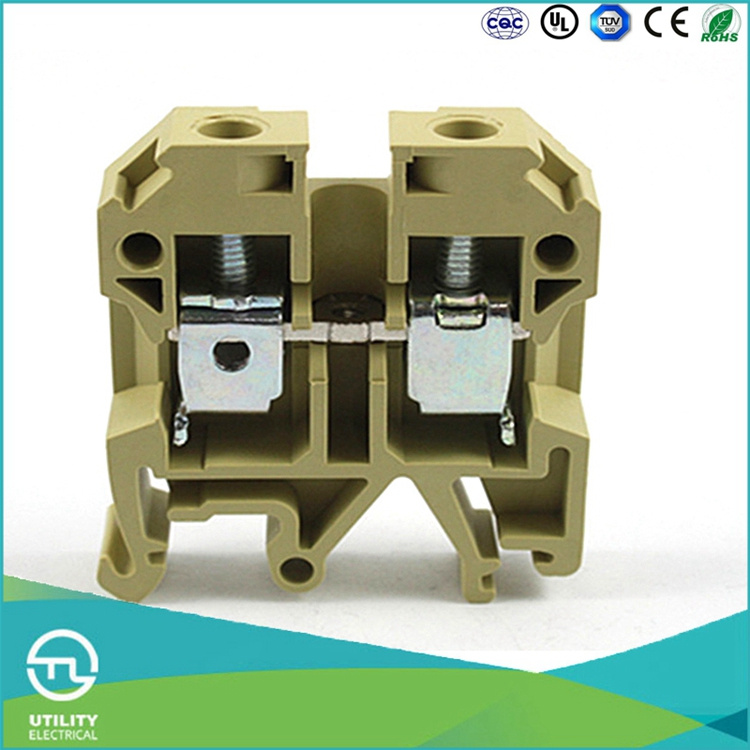

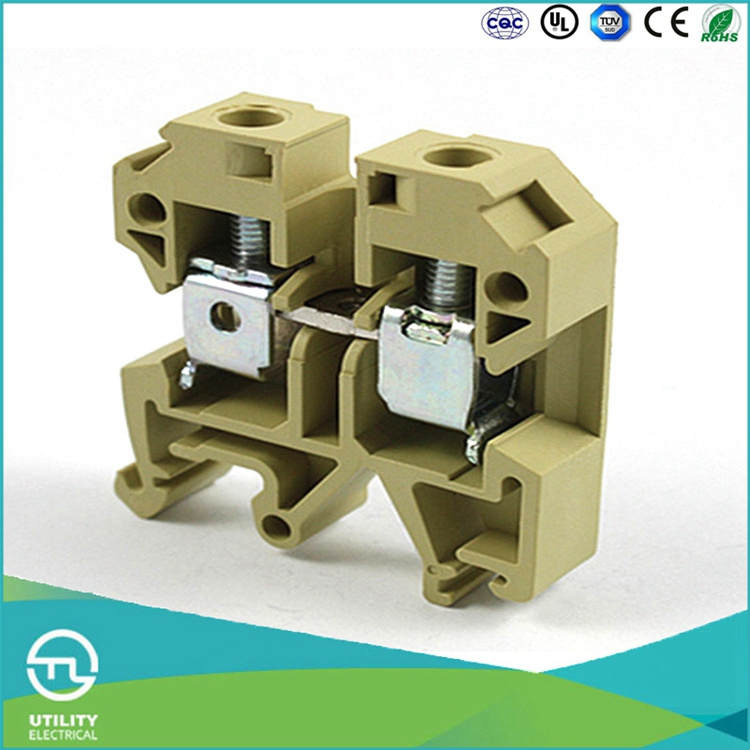

UTL terminal blocks JUT2-10 Weidmuller type Din Rail Terminal Connector with UL


UTL ELECTRICAL CO,. LTD. is a PROFESSIONAL MANUFACTURE of all kinds of terminal blocks, which was founded in 1990. Through persistent research and development, we have grown into a leading manufacturer of this field. The main products have gained the certifications, such as VDE, UL, CE, RoHS, ISO9001, CCC and CCS etc.





Brief Introduction

1. Terminals with universal mounting feet which can be installed on the U- rails NC 35 and

    G -type rail NC32 .

2. Closed screw pilot holes to ensure ideal screwdriver operation .

3. For a plurality of cross-sectional level of terminals equipped with a unified attachments,

    such as the end plates, packet separator.

4. Potential distribution through a fixed bridge or insert line access terminals central cavity

    side plug -in bridge .




Ivy Huang
Sales Manager
Utility Electrical Co.,Ltd


Mob:+86 13758875733
Tel: +86 577 62658507
Web: www.china-utl.com

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
