Jw-126 Outdoor Mounted Three - Poles High Voltage Isolating Switch

Name: Jw-126 Outdoor Mounted Three - Poles High Voltage Isolating Switch
Brand: all-electronics-online.com
SKU: 721339112
Availability: InStock
Rating: 4.5 (55 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JW-126
Rated Current:	200~600A
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	ISO
Brand:	Yongde

Product Description

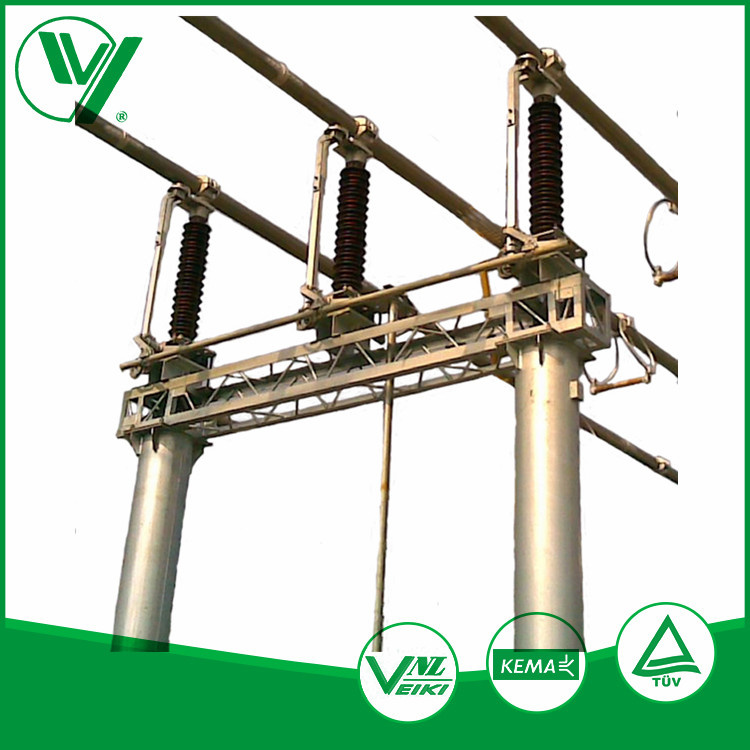

JW-126 Outdoor Mounted Three - poles High Voltage Isolating Switch

No	Item			Technical parameter
1	Rated Voltage kV			72.5	123	145	245
2	Rated Current A			1250 1600 2000 2500 3150 4000
3	Rated Short Time withstand current and Time kA/s			25~50/4
4	Rated Peak withstand current kA			63~125
5	1min power frequency withstand voltage (effective value) kV		To earth	140	230	275	460
			To phase	140	230	275	460
			Across Isolating DS	180	300	315	605
6	Lightning Impulse wishstand voltage (peak value) kV		To earth	325	550	650	1050
			To phase	325	550	650	1050
			Across Isolating DS	405	650	750	1200
7	Rated mechanical terminal load N		Level of lateral load	750	1500	1500	2000
			Level of vertical load	500	1000	1000	1500
			Vertical	750	1000	1000	1250
8	Capacity and Inductive Ability (open and close)	Capacity Current A		1
		Inductive Current A		0.5
9	Max Man Operative Moment N. m			200
10	Motor Drive operating mechanism control voltage V			AC220; DC110, 220
11	Motor Drive operating mechanism motor voltage V			AC220, 380; DC110, 220

Hangzhou Yongde Electric Appliances Ltd Company was founded in 1993. As a high-new-tech enterprise in Zhejiang province, it is about 15 kilometers from downtown area.

Our Company is one of the recommended model companies for national power grid construction and transformation. We specialized in manufacturing of 0.22-500kV metal oxide arrester of all types and applications and 10-220kV outdoor high-voltage disconnecting switch.

Currently, our company employs 150 Staffs, with 23 technically-titled and 15 senior technical title holders, who organize a high standard scientific research and development team. Every year we invest many research funds for new product development and acquiring advanced production and testing equipment each month.

Through developing new generations of high-tech products, the technology and production level maintains a leading position in the national level.

The newly developed GW37, GW38 series outdoor high-voltage disconnecting switch have been proved by authorities, which has achieved ideal operating results and won high praise from users.

Our company has a variety of CNC equipments of over a hundred units. In 2001, our company passed the ISO9001 quality inspection, and in August 2010 adopted itself to the ISO9001-2008 version of reinspection.

The annual production capacity of the company is about 6, 000, with well equipped means of inspection for raw materials and purchased spare parts. Each procedure in the manufacturing process is under strict control and supervision. The inspection equipments and instruments are advanced and reliable which effectively guaranteed our product quality.

Yongde holds the quality policy of being 'the technical forerunner, supreme in quality, supremacy of customers, and innovative progressing', so that our products and services successfully satisfied our users. We warmly welcome friends and customers from home and abroad to contact for exchanges and corporations. We also welcome feedbacks from our user communities.
