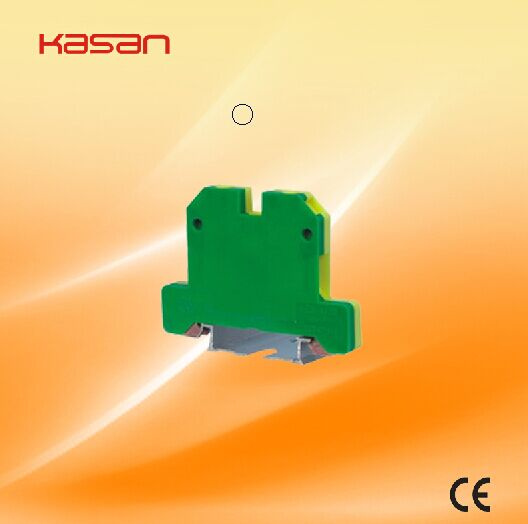

Jxb, Jb Series Earthing Terminal Blocks

Name: Jxb, Jb Series Earthing Terminal Blocks
Brand: all-electronics-online.com
SKU: 703887002
Availability: InStock
Rating: 4.9 (83 reviews)

Price:	US $ 0.1-0.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	jxb
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current(a):	16A
Type.:	Screw,Terminal Block
Application:	Battery
Shape:	Rectangle
Brand:	Kasan

Product Description

Jxb terminal block
Product Features:
SUT2 combination-type wiring terminal series product owns following practical properties.
Terminals with general-purpose mounting feet, which enables quick installation on U shaped track NS35 and G shaped track NC32.
Closed bolt leading hole will not only facilitate operation of screwdrivers, also prevent the bolt from dropping out.
General auxiliaries, such as end platem, segment spacer, and spacer, are attached for terminal with multiple sections;
The insulating shell is made if imported engineering plastic-polyamide(Nylon)66, which is of high mechanical intensity,
Good electric property, and super flexibility; Jxb terminal block
Two ends on the top with white marking system to realize uniformed sign. Jxb terminal block

Model	SUT2-10
Thickness(mm)	10
Width(mm)	42
NS32 Height(mm)	47.5
NS35 Height(mm)	52
Rated Section(mm 2 )	10
AWG	20-6
Current(A)	57
Voltage	800V

jxb terminal block

Part	Specification
End Plate
Insulating Spacer	For visual and electric separation between neigh-boring terminal groups
Insulating spacer	For electric separation of two neighboring adaptors;they may be inserted afterwards, and not occupy any space of track
Central Adaptor	Used at the center terminal for transverse bridge connection, and screw head with insulated ring,which is dived into:2-digit,3-digit,5-digit,and 10-digit
Cross connection adaptor	In 10 digit,detachable with 10 screws,for cross connection by overleaping some terminals
Marking bar	Two character styles,with horizontal and vertical arrangements,ten socket.
Terminal fixed component	mark clamp and marl strip could be blocked onto it to mark it,additionally,it could be used as fixed component to terminal row's termination
Installment Track	NS35/7.5

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
