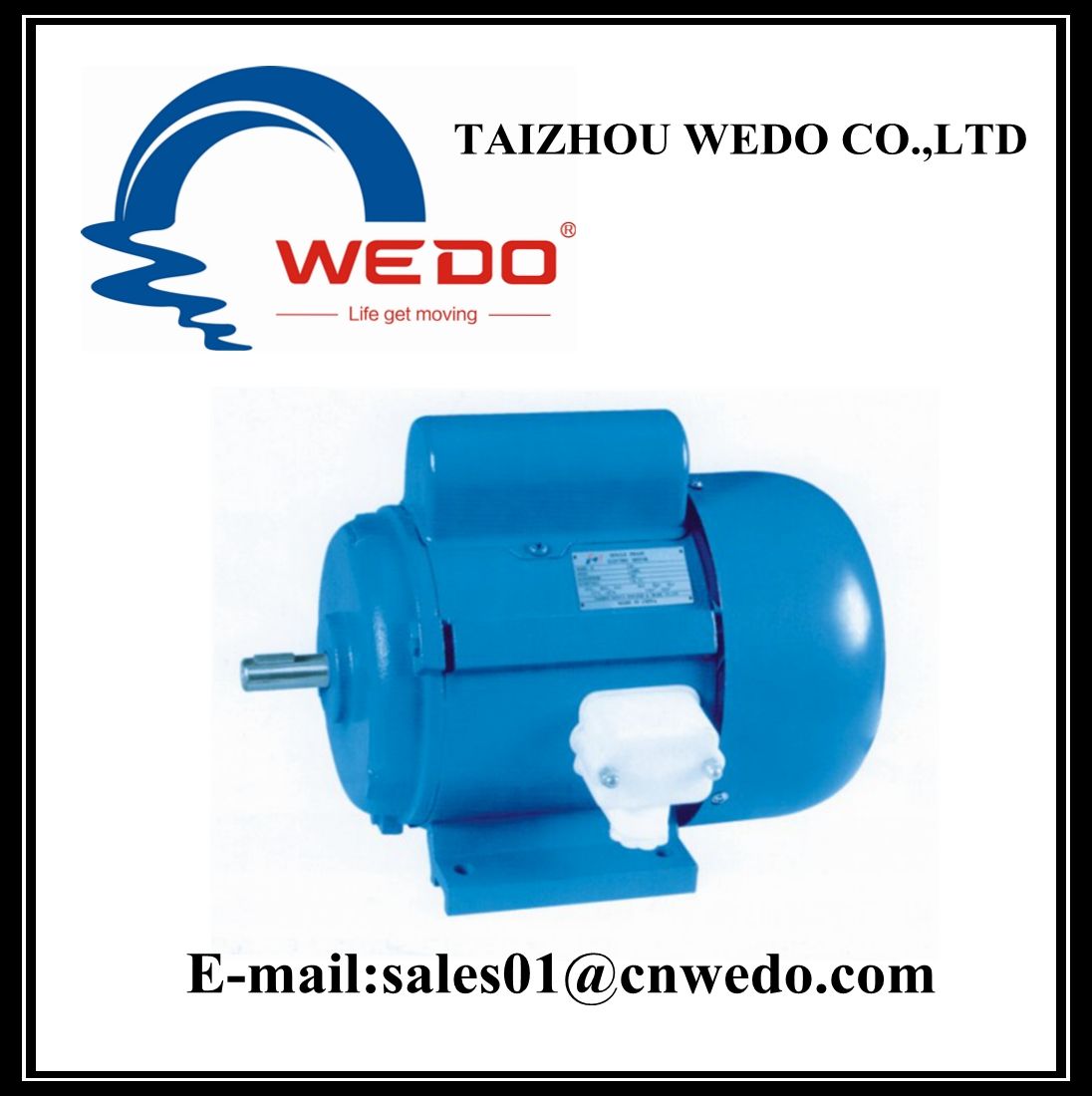

Jy1a-4 Single-Phase Capacitor Start Induction Motor

Name: Jy1a-4 Single-Phase Capacitor Start Induction Motor
Brand: all-electronics-online.com
SKU: 727993222
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 40/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY1A-4
Altitude:	Not Exceeding 1000m
Rated Voltage:	220V
Rated Frequency:	50Hz/60Hz
Protection Class:	IP44
Insulation Class:	B
Duty:	S1(Continous)
Cooling Method:	Ico141
Ambient Temperature:	-15~40 Degree Centigrade
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	Variable Frequency Starting
Species:	Jy Series Single-Phase
Number Of Poles:	2, 4
Certification:	Ce, CQC, ISO14001
Brand:	Wedo

Product Description

JY Series Single-phase Capacitor Start Induction Motor

JY series single-phase capacitor start induction motor is widely used in air compressors, refrigeretors, medical apparatus and other small machines which demand full-load starting, a large starting torque and limited starting current.
These series motors are of totally enclosed fan-cooled, and have three frame sizes, 09, 1, 2. The frames are made of cast iron or cast alminium according to the requests.

Technical Data:

Frame No.	Type	Output		Voltage (V)	Speed (r/min)	Power Factor	Efficiency (%)		Tstart/Tn
Frame No.	Type	HP	KW	Voltage (V)	Speed (r/min)	Power Factor	Efficiency (%)		Tstart/Tn
2#	JY2A-2	1.5	1.1	220	2850	0.77	71	1.8-2	2-3.5
	JY2B-2	1	0.75	220	2850	0.75	70
	JY2A-4	1	0.75	220	1400	0.68	69
	JY2B-4	0.75	0.55	220	1400	0.68	67
1#	JY1A-2	0.75	0.55	220	2800	0.72	66	1.8-2	2-3.5
	JY1B-2	0.5	0.37	220	2800	0.72	66
	JY1A-4	0.5	0.37	220	1400	0.62	64
	JY1B-4	0.33	0.25	220	1400	0.62	60
09#	JY09A-2	0.33	0.25	220	2800	0.72	63	1.8-2	2-3.5
	JY90B-2	0.25	0.18	220	2800	0.72	60
	JY90A-4	0.25	0.18	220	1400	0.62	56

FAQ:
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.

Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.

Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: How long is your warranty?
A: One year after receive B/L.

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

Founded in 2000, WEDO located in DAXI Town, Wenling, the country of water pumps and motors in China.

Our company is devoted to development, manufacture and sales of different types of agricultural pumps, household pumps, project construction pumps and GPD, GP Series single-phase and three-phase canned circulating electric pumps, central air-conditioning pumps, chemical canned pumps, and ship pumps...

The company owns total industrial area reaching 4000 square metres, more than 300 staff and annual revenue of 100 million RMB. With more than 2000 sales and service agencies in China,

WEDO's sales network has spread out to more than 58 countries and regions around the world as well. WEDO's trademark has also been registered patent in more than 20 countries such as Italy, Holand, Germany, Thailand, which is the best approval and award from our customers for our sincere service.

WEDO, all the time, has been trying best to be and has been the most professional and faithful manufacturer of pumps in China. If you, our friends, offer us a chance to serve you, you will find us, WEDO, your best choice.

History: 15 years professional manufacturer of water pumps and motors.

Scale: Covers a more than 40, 000 square meters working area, with more than 300 employees.

Technology: A strong team of international and professional technical engineers.

Management & QC: Technology-research and development center, test center, we test each pump and motor to guarantee the quality, including water-testing, electrical test during production and factory acceptance test when left factory.

Equipment: 6 production installation lines, 1 electrophoresis automatic production line, and 3 set inserting winding production line, 260 skilled workers are expert in assembling exported products.

Production Capacity: 300, 000 PCS/year.

Marketing network: 200 cities of over 300 wholesales, more than 2000 dealers in domestic exported to Europe and America, Southeast Asia and Africa, etc.

Certificates: ISO9001: 2000 quality system authentication and CCC, CE certification authority.
