K J Thermocouple Extension Wire or Cable

Name: K J Thermocouple Extension Wire or Cable
Brand: all-electronics-online.com
SKU: 755347525
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 0.3/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	thermocouple wire
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thermocouple Wire Diameter:	7*0.52mm, 18AWG, 16AWG, etc
Thermocouple Wire Insulation:	FEP, Silicone Rubber, PVC, XLPE, etc
Thermocouple Wire Jacket:	Fiberglass
Thermocouple Wire Color:	Standard, or You Customize
Thermocouple Wire Length:	1000m, 2000m, or 5000m Per Spool
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Silicone Rubber
Certification:	ISO9001
Application:	Testing Temperature
Conductor Material:	Nicr-Nial
Brand:	Reou

Product Description

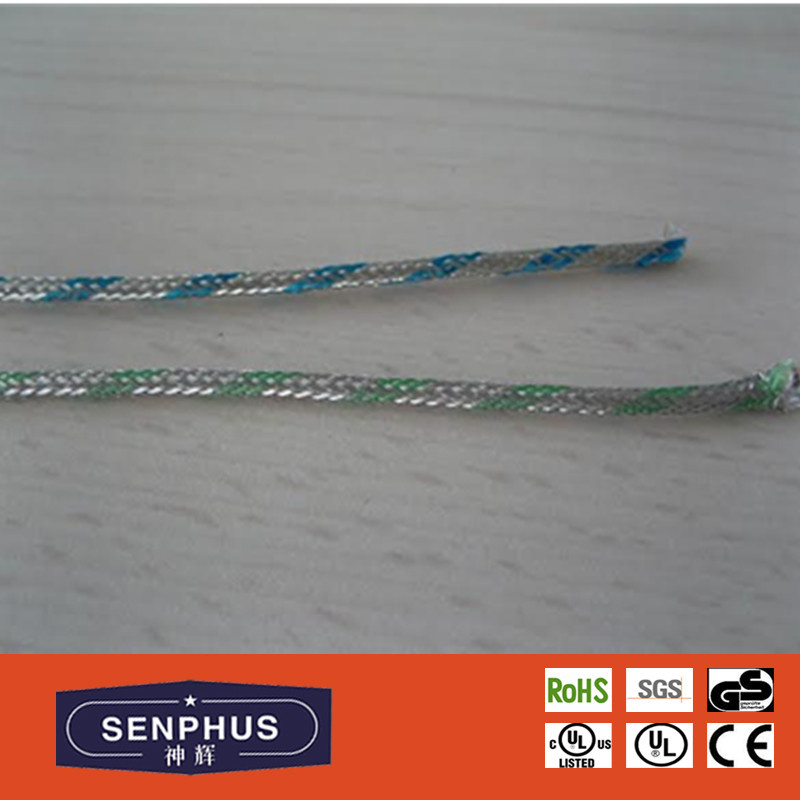

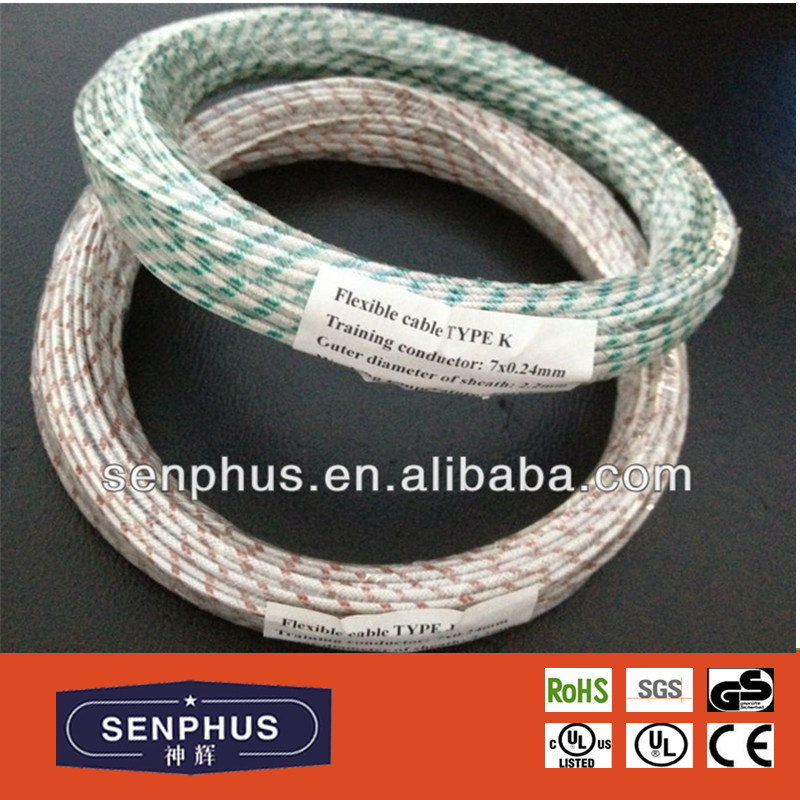

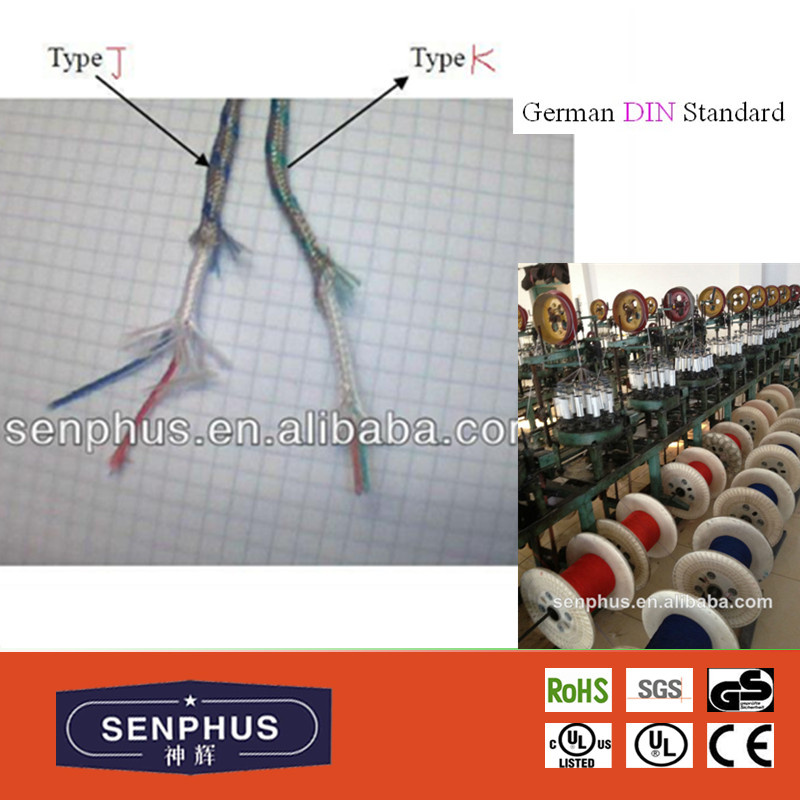

Thermocouple extension wire

As one of the professional alloy manufacturer, we can supply all kinds of Thermocouple Wire /Chromel/Alumel/Copel according to customer request.

Thermocouple Type:
Type B, Type R, Type S, Type K, Type N, Type E, Type J, Type T.

Top quality and Best service!
Name and code of alloy wires Diameter of wires mm Maximum temperature degree c

Jingyin chengxin alloy material co, . Ltd is specialized in producing high / low resistance electric heating alloy in the form of wire, strip, bar, coil, including Ni-Cr-Fe, Ni-Cr, Cu-Ni, Manganin, Pure Nickel, Kama, Thermistor & Thermocouple compensation alloy wire.

We are the only manufacturing enterprise which gathers electrical heating alloy wire & strip and heating cable in China.

Welcome to email and call inquiry from our new and regular customer.

Delivery: Normally 10-15 days after receive deposit, rely on quantity
Trade terms: FOBshanghai
Payment: T/T, L/C
Min. Order: 1kg

Name and code of alloy wires				Diameter of wires mm	Maximum temperature º C
Anode		Cathode			Maximum temperature º C
Name	Code	Name	Code		Long-time	Short-time
PtRh30	BP	PtRh6	BN	Φ 0.5	1600	1800
PtRh13	RP	Pt	RN	Φ 0.5	1400	1600
PtRh10	SP	Pt	SN	Φ 0.5	1300	1600
PtRh10	KP	NiSi3	KN	Φ 0.3	700	800
				Φ 0.5	800	900
				Φ 0.8 Φ 1.0	900	1000
				Φ 1.2 Φ 1.6	1000	1100
				Φ 2.0 Φ 2.5	1100	1200
NiCr-NiSi	NP	NiSi4	NN	Φ 3.2	1200	1300
NiCr-CuNi (constantan)	EP	CuNi45	EN	Φ 0.3 Φ 0.5	350	450
				Φ 0.8 Φ 1.0 Φ 1.2	450	550
				Φ 1.6 Φ 2.0	550	650
				Φ 2.5	650	750
				Φ 3.2	750	900
Fe-CuNi (constantan)	JP	CuNi45	JN	Φ 0.3 Φ 0.5	300	400
				Φ 0.8 Φ 1.0 Φ 1.2	400	500
				Φ 1.6 Φ 2.0	500	600
				Φ 2.5 Φ 3.2	600	750
Cu-CuNi (constantan)	TP	CuNi45	TN	Φ 0.2 Φ 0.3	150	200
				Φ 0.5 Φ 0.8	200	250
				Φ 1.0 Φ 1.2	250	300
				Φ 1.6 Φ 2.0	300	350

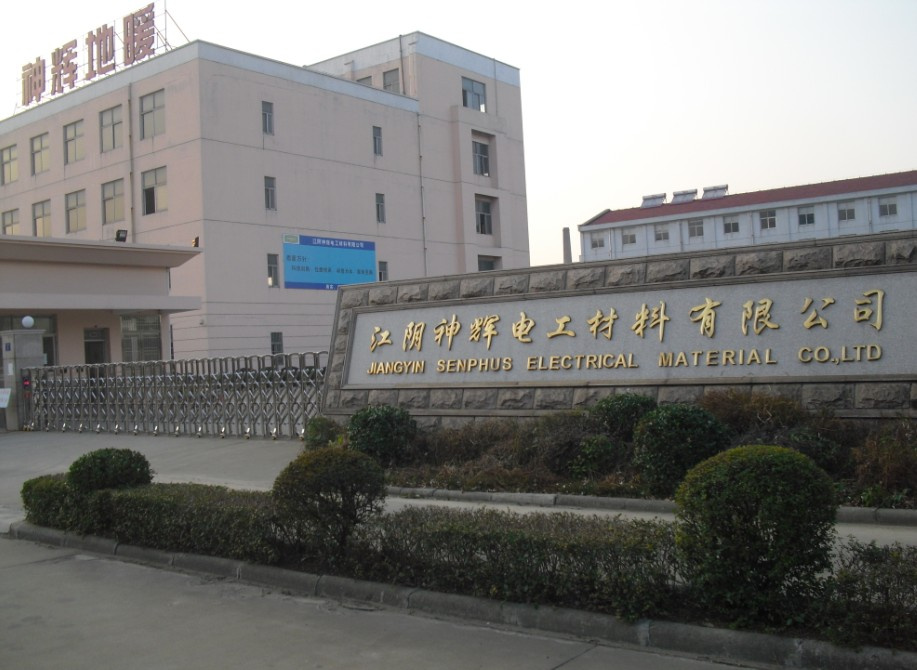

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
