| Prod Model: |
SYAD08T |
| Communication Port: |
RS232/RS485 |
| Output: |
RS232/RS485 |
| Input: |
J/K/T/E/R/S/B Type Thermocouple Signal |
| Channels: |
6 (2-8 Channels Option) |
| Power: |
+8 ~ 50 VDC |
| Isolation Voltage: |
3000V |
| Weight: |
120g |
| Operation Temperature: |
45 ~ +80centigrade |
| Dimension: |
101 mm X 23 mm X 116.5 mm |
| Installation Type: |
DIN Rail-Mounted |
| Material: |
Plastic |
Product Description

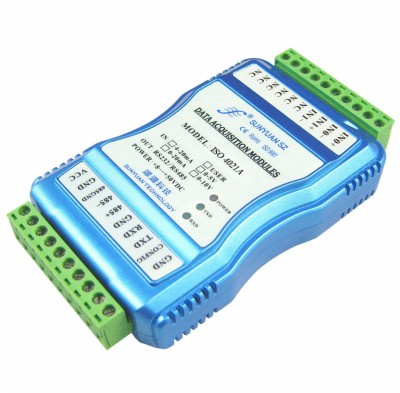

6-Channel Thermocouple analog signal to RS232 RS485 digital signal converter
SYAD 08T
The model selection of SYAD08T series is just initial type of thermocouple which supports by the module. User can change the types of thermocouple by re-configurating the module through ASCII character command, then calibrate it. SYAD08T series modules support both RS232 and RS485 communication interface. User can choose the communication interface according to the application environment, and at the same time only one interface works,otherwise it may interference with each other.
Themalcouple A-D Converter Technical Parameter:
(typical @ +25ºC,Vs is rated value)
Input: Thermocouple: J type: 0ºC~760ºC,K type: 0ºC~1000ºC,T type:-100ºC~400ºC,
E type:0ºC~1000ºC,R type: 500ºC~1750ºC,S type:500ºC~1750ºC,B type: 500ºC~1800ºC
(Input type can be set through software)
Accuracy: @+25ºC as shown in Table 1.
Input Imbalance: ±0.02 uV/ºC
Temperature Drift: ±1 ppm/ºC(±3 ppm/ºC, Max.)
Input Resistance: 100 M Ω
Band width: thermocouple -3 dB 3.27 Hz
Switching rate: thermocouple 3.76 Sps
Common mode restraint (CMR): 120 dB(1kΩ Source Imbalance @ 50/60 Hz)
Normal mode restraint (NMR): 60 dB (1kΩ Source Imbalance @ 50/60 Hz)
Input terminal protection: 240Vrms, sustainable
ANSI/IEEE C37.90.1-1989 transient protection
Cold Junction Compensation Sensor
Accuracy: @+25ºC ±0.25ºC (±0.75ºC, Max.)
Accuracy: +5ºC~+45ºC ±0.5ºC (Non-linearity ±0.0125ºC/ºC)
Communication: RS-485 interface or RS-232 interface;ASCII character protocol and MODBUS RTU communication protocol. Baud rage(300bps,600 bps,1200 bps,2400 bps,4800 bps,9600 bps,19200 bps,38400bps)(can be set through software).
Address (00H~FFH)can be set through software
Response time: 100 ms Max.
Operation Power Supply:+8 ~ 50 VDC wide range power,internal anti-inverse connection and over-voltage protection circuit.
Power Consumption:≤1W
Operation Temperature:- 45 ~ +85ºC
Operation Humidity:10 ~ 90% (no dew)
Storage Temperature:- 45 ~ +85ºC
Storage Humidity:10 ~ 95% (no dew)
Isolation Withstand Voltage: 3KVDC between input and output,1 minute,stray current 1mA, Output and power are common-ground
Endure Impact Voltage: 3KVAC, 1.2/50us(peak value)
Dimension:101 mm x 23 mm x 116.5 mm
Weight:about 120g
