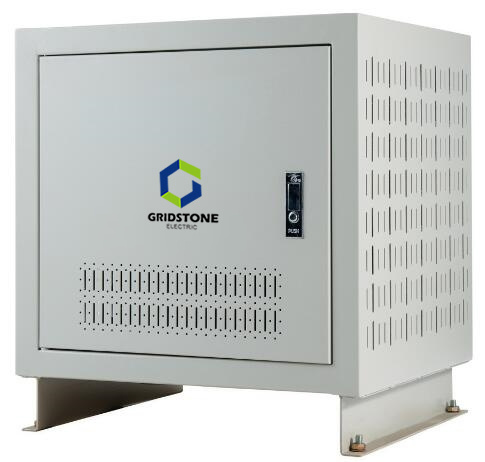

K Transformer for Non-Linear Load
| Price: |
US $ 100-50000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Usage: |
Isolation Transformer |
| Brand: |
Gridstone |
Product Description
FeaturesThe K-rated transformers are isolation transformers specifically designed to withstand the phenomena due to the fact that non-linear loads generate high levels of harmonic distortion. Typical non-linear load are computers, variable speed drives, inverters, welders and so on. Harmonic generation results in increased current absorption and therefore higher losses. In order to ensure that the thermal class temperature limit is respected, the transformer design must keep into consideration the presence of said harmonics. The K factor is an indication of how much the harmonic distortion affects the system: the higher is K, the higher is the harmonic content that the transformer must withstand without any damage. It is worth reminding that a K-rated transformers does not cancel the harmonics in the system (except for third and triplen harmonics), but is able to tolerate their effects. In order to reduce or eliminate the harmonic content, it is necessary to arrange suitable filtering equipment.
Specification | Capacity | 1KVA-3000KVA |
| Voltage Grade | <= AC1140V |
| Input Voltage range | Rated voltage ±10% |
| Output Voltage | Rated voltage ±3% when input voltage is at the rated voltage. |
| Frequency | 50Hz or 60Hz |
| Dielectric Strength | 3500V / 10mA / 60s |
| Loading capability | When the transformer is 100% loaded, it can take 3 times current in short time. |
| Insulation | ≥100MΩ ( DC 500V ) |
| Insulation Grade | F |
| Working Temperature | -15°C--+45°C |
| Humidity | <95℅ |
| Temperature increase | <100K |
| Noise | <55db |
Company Profile:
Founded in 1983, GridStone Electric is a leading manufacturer of automatic voltage stabilizer and transformer. The products currently include digital static voltage stabilizer, digital servo voltage optimizer, power factor correction units, LV and MV transformers and reactors, UPS, Variable Frequency Power Source, Oil Immersed Induction Voltage Regulator. Thanks to over 30 years in the business and on going technical research, GridStone have become a competitive high-tech company, and meet the requirements of a constantly growing number of customers through design, production and service.
Besides standard production, GridStone is flexible and strong at custom design and production according to the customers' specification. Expert training and technical support are available to serve the customers quickly and professionally.
GridStone factories are ISO9001 and ISO14001 certified.
Founded in 1983, GridStone Electric is a leading manufacturer of automatic voltage stabilizer and transformer. The products currently include digital static voltage stabilizer, digital servo voltage optimizer, power factor correction units, LV and MV transformers and reactors, UPS, Variable Frequency Power Source, Oil Immersed Induction Voltage Regulator. Thanks to over 30 years in the business and on going technical research, GridStone have become a competitive high-tech company, and meet the requirements of a constantly growing number of customers through design, production and service.
Besides standard production, GridStone is flexible and strong at custom design and production according to the customers' specification. Expert training and technical support are available to serve the customers quickly and professionally.
GridStone factories are ISO9001 and ISO14001 certified.
Watch 360 degree video of GridStone factory on computer: http://www.is360.com/GridStone/index.html
(Click mouse on the video and drag the mouse at the same time, the video will turn to different angle and show 360 degree of GridStone factory. )
Our History
1983, GridStone factory for automatic voltage stabilizer was started, and the First servo voltage Stabilizer in China was successfully produced.
1985. Gridstone factory for transformer was started
1998. New office and factory of voltage stabilizer were started in Shanghai, China.
2002. The first static voltage stabilizer was released, and massive production Started at end of the Year.
2008. Brand name "Shanghai Voltage Regulator" was started in China.
2009. New types digital voltage stabilizers were released. These new Products are more fast, More reliable and more intelligent.
2010. The first frequency and voltage regulator with IGBT is released.
2014. New factory for transformer was started.
2016. GridStone brand name is started to be used for all voltage Stabilizers and transformers to Sold abroad.
