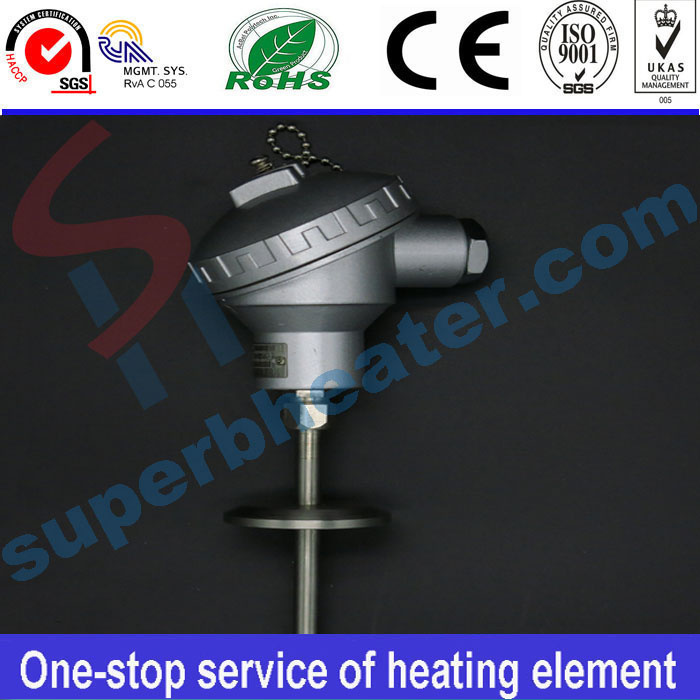

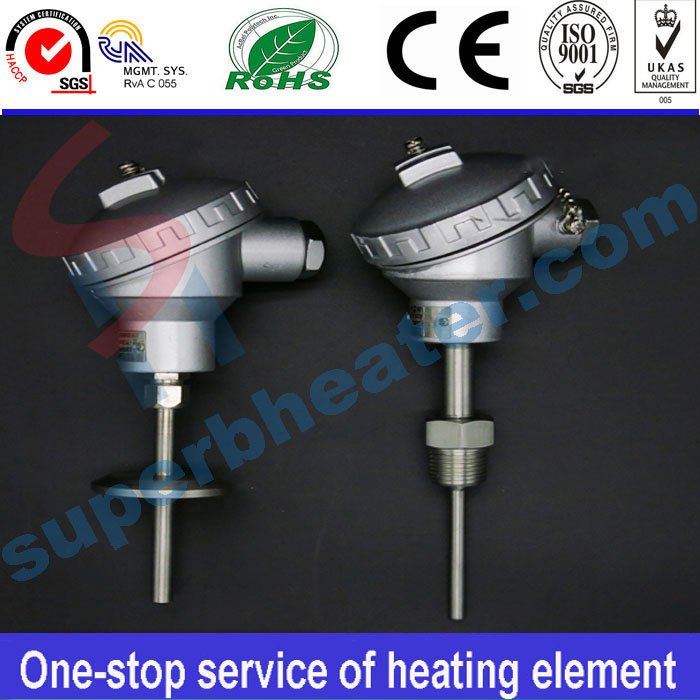

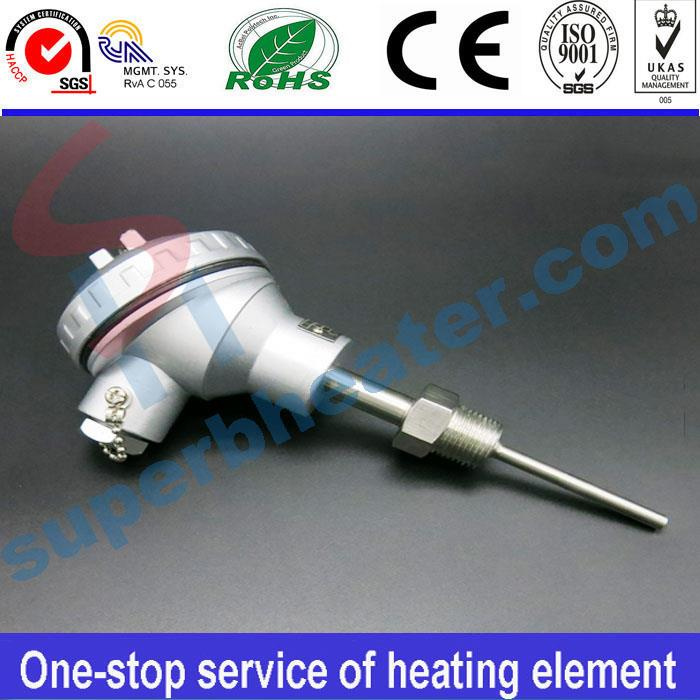

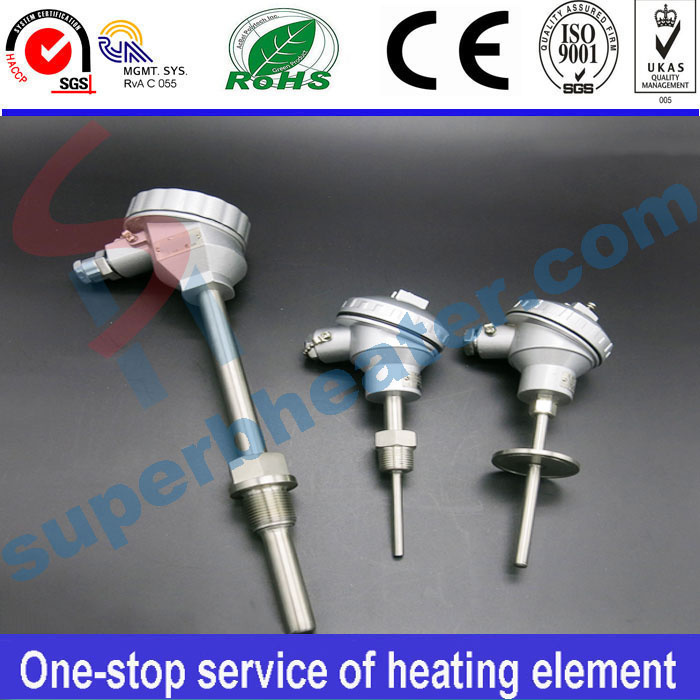

K Type Thermocouple Heating Element

Name: K Type Thermocouple Heating Element
Brand: all-electronics-online.com
SKU: 690712501
Availability: InStock
Rating: 4.4 (109 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	customize

Product Description

Temperature Sensor

Product Description

Application:gas and liquid

Housing Materials: 304 sst ,316L sst, titanium (Ti),PTFE, Optional

Process Connect: G1/2'' male, G1/4'' male, 1/4''NPT,1/2"NPT,1/2"BSP,etc. (Option)by customized

Electrical connect:Hirschmann

Diameter:6~16mm

Probe Length:20~10000mm

Type:PT100

Profiles

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.

Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.

It has a variety of advantages, such as: easy assembly and convenient for replacement, high mechanical strenghth, good pressure-resistant, good shock-proof permance. It is usually connected with displaymeter, recording meter and computer, etc. To directly measure temperature of liquid, vapor, gas, and solid surface ranging from 0 °C to 1300 °C during various production processes. Besides, it widely measuring range

Technique Target

Temperature sensor category	Model	TYPE	Temp Range	Allowable error value ºC
Single Pt Rh 30-Pt Rh6	WRR	B	0-1600ºC	±2.5ºC OR 0.25ºCt
Single Pt Rh 10-Pt	WRP	S	0-1300ºC	±2.5ºC OR 0.25ºCt
Single Ni Cr-Ni Si	WRN	K	0-1100ºC	±2.5ºC OR 0.25ºCt
NiCr-konstantan	WRE	E	0-600ºC	±2.5ºC OR 0.25ºCt
Cu-konstantan	WRC	T	-200 ~400ºC	±1.0ºC OR 0.75ºCt
Fe-konstantan	WRF	J	40-750ºC	±1.0ºC OR 0.75ºCt
Thermal Resistance	WZP	PT100	-200~450ºC	±0.3ºC + 0.005t

Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.

Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.

We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers

After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
