K Type Thermocouple with 0.5mm Diameter for Glow Wire Tester

K Type Thermocouple with 0.5mm Diameter for Glow Wire Tester
Price: US $ 170-300/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: PG-A2
Standard: IEC60584
Material: Nichrome

Product Description

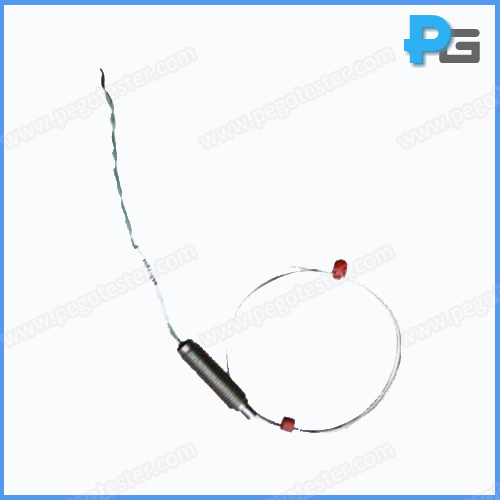

High-precision K typeThermocouple with 0.5mm Diameter used for Glow Wire Tester
1. Introduction
Insulating and heat resistance thermocouples (443-7939, 443-7951, 443-7919, 443-7921), special for glow-wire test apparatus, needle flame test apparatus, horizontal and vertical flammability test chamber and wire cable vertical flammability test chamber. The temperature detect part is bendable stainless steel 310 sheath with excellent oxidation resistance, it is suitable for the occasion of high-voltage and corrosive medium.

2. Parameter


Length500mm
Diameter0.5mm
Temperature-40ºC~1100ºC
Fixation sitesM8 thread (BS)
Applicationspecial for glow-wire test apparatus, needle flame test apparatus, horizontal and vertical flammability test apparatus, wire and cable vertical flammability test apparatus
StandardIEC60584

 3. Relative Products
Glow Wire Tester
Introduction:
The equipment is designed according to IEC60695-2-10, UL746 and GB/T5169.10. The specific material and sharp heating wire is heated to specific temperature (550 ºC~960 ºC) for 1 min by max current, then vertical burns the EUT with certain pressure (1.0N)  for 30s, then check if the test specimen and bedding material are burning, and count the burning time to judge the dangerousness of the specimen. Generally it is applied to test flammability, GWIT and GWFI of lighting lamps, electronic products and household appliances The equipment is applicable to flame resistance test of all levels of QC departments and corresponding enterprises.
Glow wire temperature500~1000ºC±2ºC
Glow time0-999.9s±0.1s (auto record)
Burning time0-999.9s±0.1s (auto record)
Flame Chilling time0-999.9s±0.1s (auto record)
ThermocoupleΦ0.5mm, K type
Glow wireΦ4mm nichrome wire
Pressure on test specimen1N±0.2N
Depth7mm±0.5mm
Test speed14mm/s
Pego Tester (Jiangxi) is founded by PEGO GROUP in 2011, a professional high-tech enterprise engaged in developing, marketing and service for electronic test equipment. Our business scope includes IEC60061-3 gauges for lamp caps and holders, UL498/VDE0620/BS1363-1 gauges for plug and socket, IEC61032 IP code probes, UL probes, flame test apparatus, glow-wire test apparatus, tracking index apparatus, needle flame test apparatus, ground resistance tester, insulating resistance tester, hipot tester, temperature chamber, waterproof test equipment, dust chamber, spring hammer, pendulum hammer, tumbling barrel test equipment, test vessels, ESD gun, surge generator, goniophotometer, integrating sphere, spectroradiometer, power supply and etc. Besides, we can provide customized service.

Nowadays, we have several production lines in China, we imported advance technology and machines to make the gauges to keep high precision, and use the world famous-brand components to make the equipment more reliable. We promise the customers can get the high quality products during the shortest lead time, and we can provide the third-lab calibration certificates if customer request. The Pego's products have been sold to the world wide, and widely used in labs, production line, QC and R&D departments with the features of high precision, simple operation, humanization design and good performance.

To Provide better user experience with better quality and better price is the motto of Pego. With the growth of test items, PEGO hope to grow with our users, and search for better test solution for our users.
