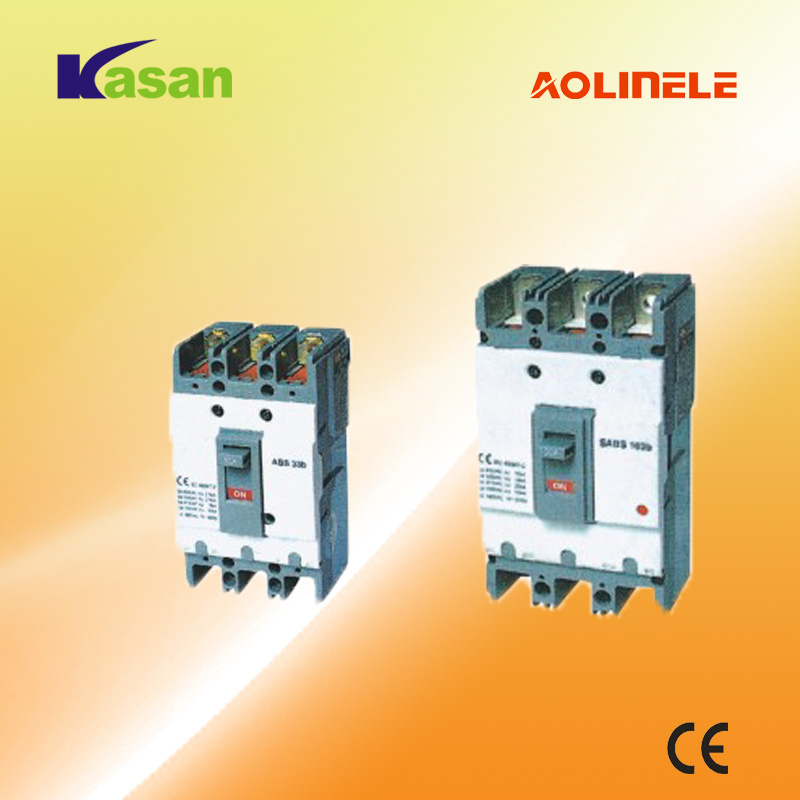

Kabe/S Series Moulded Case Circuit Breaker

Name: Kabe/S Series Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 690489572
Availability: InStock
Rating: 5 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole Number.:	2.3p
Type.:	Moulded Case
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

Product Description
MCCB SBE LG CE marked 3p, high quality, lower price, good service.
1. Application
ABS&ABE series MCCB is suitable for industrial or commercial power and lighting with AC 50/60Hz, rated working voltage up to AC 600V/DC250V, rated current up to 63A. Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can be attached to install the accessories which have protection function for avoiding loss-voltage, undervlotage. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

2. The rated insulation voltage for this series of circuit breaker is 690V, the rated operating voltage is 600Vmthe rated frequency is 50Hz, the other values for the main circuit.

Type	2 pole	ABS-32E	ABS-52E	ABS-52S	ABS-62E	ABS-62S
	3pole	ABS-32S	ABS-53E	ABS-53S	ABS-63E	ABS-63S
		30	50		60
		5,10,15,20,30	5,10,15,20,30,40,50		60
		600	600	600	600	600
		690	690	690	900	900
		6	6	6	6	6
Uitimate breaking capacity (KA,lucAC50/60Hz)	220V/240V	10	10	25	10	25
	380V	7.5/5	7.5/5	14/10	7.5/5	14/10
	415V	7.5/5	7.5/5	14/10	7.5/5	14/10
	440/460V	5	5	10	5	10
	480/500V	2.5	2.5	7.5	2.5	7.5
	600V	2.5	2.5	5	2.5	5
Utilisation category		A	A	A	A	A
Endurance	Mechnical	8500	8500	8500	8500	8500
Endurance	Electrical	1500	1500	1500	1500	1500
