Kabel Nym Nym-J 300/500V Copper PVC Insulation PVC Sheath Electrical Power Cable

Name: Kabel Nym Nym-J 300/500V Copper PVC Insulation PVC Sheath Electrical Power Cable
Brand: all-electronics-online.com
SKU: 795050755
Availability: InStock
Rating: 4.9 (118 reviews)

Price:	US $ 0.6/Meter
Min Order:	300/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	nym, nym-j, nym-o
Armour:	Steel Wire Armour, Steel Tape Armour
Voltage Grade:	300/500V
Standards:	ASTM, AS/NZS, BS, CSA, DIN, IEC, Sans, Iram,...
Size:	1.5sqmm-25sqmm
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Certification:	VDE
Current:	Nominal Voltage U0 300 V, Nominal Voltage U 500 V
Model:	Nym
Brand:	Jytop

Product Description

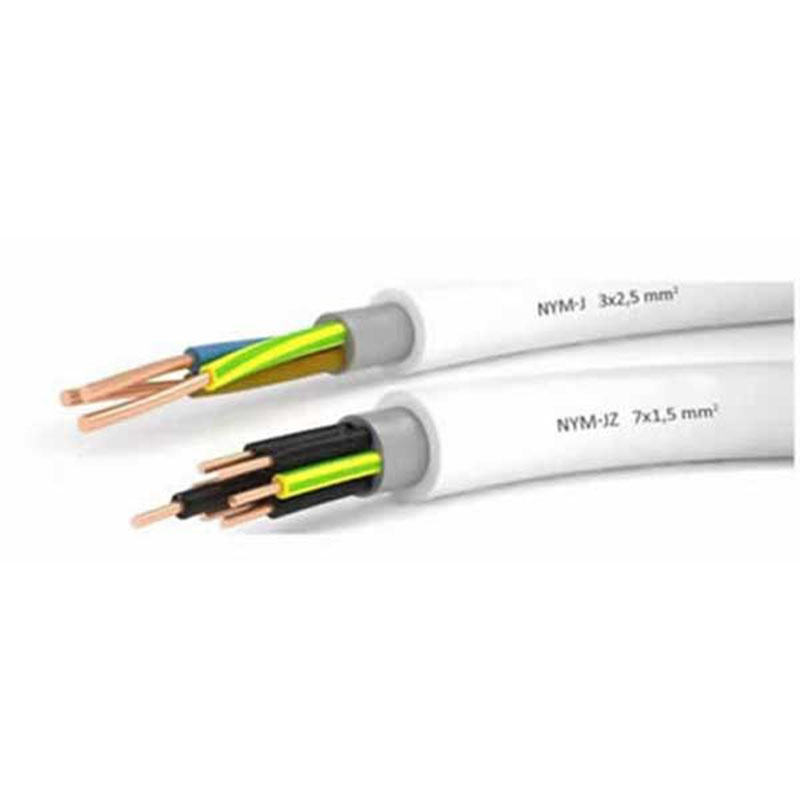

Nym Nym-J 300/500V Copper PVC Insulation PVC Sheath Electrical Power Cable

NYM,NYM-J,NYM-O (300/500V PVC Insulation PVC sheath Power Cable) manufactured by JYTOP meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

Application of Kabel NYM :
House wiring cable. Installation cable. wiring cable for installation in dry and wet rooms under, in and above plaster, also for installation outdoors but with UV protection.

NYM Kabel Construction:

Conductors:	Conductor material Cu, bare.class1 or class2 acc to VDE0295(IEC60228/HD 383) Solid or stranded Green and Yellow available please see table below.
Core colours:	1 core: Green / Yellow 3 core: Green/Yellow, Blue, Brown 4 core: Green/Yellow, Brown, Black and Grey 5 Core: Green/Yellow, Blue, Brown, Black and Grey 7 core: Numbered
Insulation:	PVC
Sheath/Jacket:	PVC
Colour:	-O: without yellow/green core ; -J: with yellow/green core
Voltage:	Nominal voltage U0 300 V, Nominal voltage U 500 V
Max. conductor temperature:	70 °C
Operating temperature:	Flexible: -5°C to +70 °C, Fixed: - 40°C to +70 °C
Minimum bending radius:	1 core: 15 x diameter 3 core and above: 4 x overall diameter
Max short circuit temp:	160 °C

Nym-j cable and Nym-o Specification Sheet:

Construction No. x mm2	Outer Diameter cca. mm	Cu Weight kg / km	Cable weight cca. kg / km
1 x 1.5	5,1	14,4	40
1 x 2.5	5,7	24	65
1 x 4	6,3	38	80
1 x 6	6,8	58	105
1 x 10	8	96	155
1 x 16	9,1	154	230
2 x 1.5	8,8	29	115
2 x 2.5	10	48	145
3 x 1.5	8,5	43	120
3 x 2.5	9,9	72	165
3 x 4	10,8	115	265
3 x 6	12,2	173	315
4 x 1.5	9,3	58	145
4 x 2.5	10,7	96	205
4 x 4	12,8	154	305
4 x 6	13,8	230	385
4 x 10	16,8	384	605
4 x 16	19,2	614	1025
4 x 25	24	960	1580
4 x 35	26	1344	2075
5 x 1.5	10,2	72	170
5 x 2.5	11,7	120	245
5 x 4	13,9	192	370
5 x 6	15,1	288	460
5 x 10	18,3	480	740
5 x 16	23,6	68	1275
5 x 25	28,5	1200	1945

We are NYM,NYM-J,NYM-O,300/500V PVC Insulation PVC sheath Power Cable Manufacturers and Suppliers,provide NYM,NYM-J,NYM-O wholesales ,300/500V PVC Insulation PVC sheath Power Cable price

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
