Kable N2xs2y Copper Power Cable XLPE Insulation PE Sheath with VDE 0276-620 Approved

Kable N2xs2y Copper Power Cable XLPE Insulation PE Sheath with VDE 0276-620 Approved
Price: US $ 0.5/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T
Prod Model: N2xs2y
Size: 35-500mm2
Standard: ASTM/BS/GB/IEC
Certificate: CCC/Ce/SGS
Insualtion Color: Black, Red
Rated Voltage: Max. DC Resistance @ 20 Degree 7.41 Ohm/Km
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: XLPE
Certification: CE
Sheath Material: PVC/PE
Model: Cu/XLPE/PVC
Brand: Jytop

Product Description

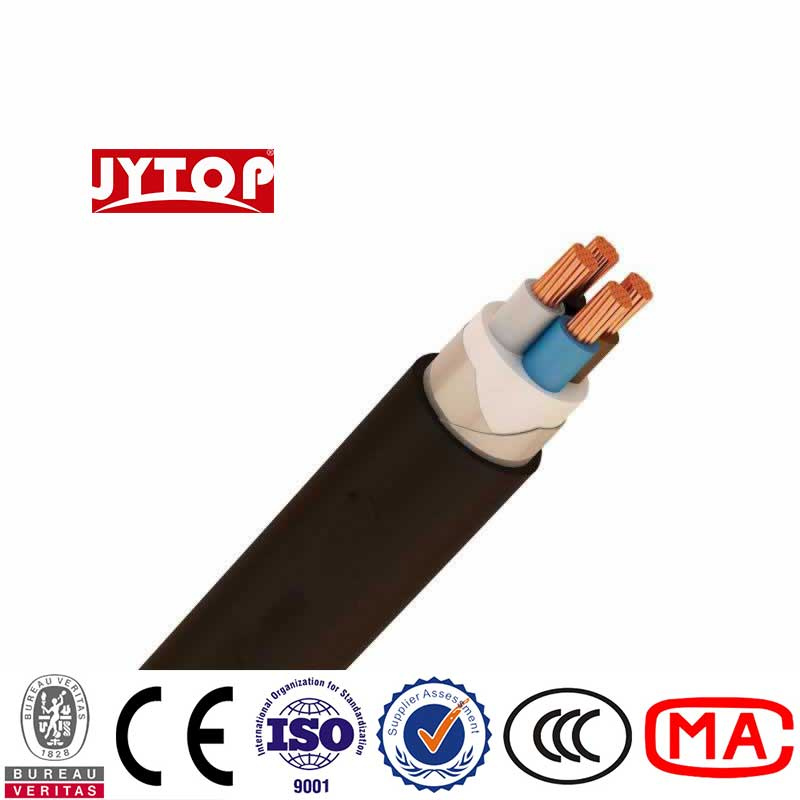

Kable N2XS2Y Power Cable, Copper Cable, Xlpe Insulation, PE Sheath, VDE 0276-620 Approved

Application:
To be laid directly in ground, outdoors, indoors and in cable ducts.

Standards:
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)

Construction:
Conductor:Copper or Aluminium
Insulation:XLPE/PVC
Inner sheath:PVC or PE
Outer Sheath:PVC or PE
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
Characters:
a.Max Long-time operating temperature of PVC insulated cable is 70°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 160°C,Not more than5 Sec.
d.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)

Description & Application:

Number of cores and cross-section
Shape of conductorConductor diameter (approx.)Nominal insulation thicknessDiameter over insulation (approx.)Nominal thickness sheathOuter diameter (approx.)Bending radius (min.)Cable mass (approx.)
mm2 mmmmmmmmmmmmkg/km
1x35/16RM7.23.415.32.524360803
1x50/16RM8.23.416.32.525375928
1x70/16RM9.83.417.92.5263901154
1x95/16RM11.33.419.42.5284201410
1x120/16RM12.83.420.92.5304501682
1x150/25RM14.23.422.32.5314652025
1x185/25RM15.83.423.92.5324802383
1x240/25RM18.33.426.42.5355252965
1x300/25RM20.73.428.82.5375553624
1x400/35RM23.33.431.42.5406004574
1x500/35RM26.53.434.62.5436455597

 Advantages:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure
d. Convenient to use
e. Light weight,perfect bending properties


Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
