Kag-05 Push Button Switch of Household Appliances

Name: Kag-05 Push Button Switch of Household Appliances
Brand: all-electronics-online.com
SKU: 748008705
Availability: InStock
Rating: 4.4 (22 reviews)

Price:	US $ 0.39-0.4/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KAG-05
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Circuit Diagram 1:	Normally Open
Circuit Diagram 2:	Normally Colse
Color:	Black
Go Out Highly:	34.5
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch

Product Description

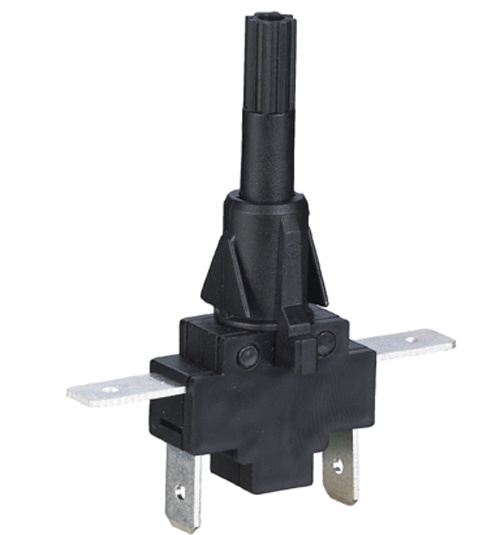

KAG-05C11S1 Push-Button Switch
The switches we manufactured such as power switch, micro switch, gating switch and voltage select switch, are widely used in TV, computer, micro-oven, display, electric cooker, electric device and family appliance. Most of our products have got VDE, UL, cUL, NEMKO, SEMKO, FIMKO, DEMKO, CQC safe approvals.

power rating:16(4)A 125/250vAC 12(10)A 125VAC/250VAC

contact resistance:≤50mΩ

insulation resistance≥100MΩ

Dielectric strength:and pole 1500VAC ,pole and housing 3000VAC

ambient temperature:T125

Electrical:5E4

. Dongguan Avoa Electric Co., Limited located on the China guangdong, is specialized in producing electronics components, power switch, plugs & sockets, connectors applied to Household appliances, vacuum cleaners, sound sets. In addition, the company produces plastic-pressing (big, MID or small) and metallic-pressing parts, and may design all kinds of plastic die sets for our numerous customers also.

With a plant area of 5000 square meters and a building area of 5500 square meters, our company owns fully reinforced strength, complete test equipment inspecting methods and perfect quality system. Our products have passed the, CQC certificates of China Quality Certification center. Some products also passed UL Approbation of U. S. A or TUV Approbation of German Rheinland Technical Co., Ltd.

Our products are on sales everywhere domestically and are exported to Hong Kong, Taiwan, Europe and U. S. A For instance, the power switch of KBQ02B, KAG01A series of vacuum cleaner gain the UL certificate for the first time in the manufactory of China. So, the power switches were preferred by broad customers.

Our companys' essential principle is "Quality First and Reputation First", we will meet our customers' needs by the best quality and after-sales service. We cordially welcome the clients home and abroad to correspond and discuss with us and create the splendid enterprise hand by hand.
