Kampa 4p 6ka 25A Residual Current Circuit Breaker

Name: Kampa 4p 6ka 25A Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 734617332
Availability: InStock
Rating: 4.3 (98 reviews)

Price:	US $ 3-8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	F204AC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	4
Certification:	CCC

Product Description

Kampa 4P 6ka 25a Residual Current Circuit Breaker

1.Application

The RCCBs are mainly used in varieties of factories; enterprises and building construction, 1 phase 230V and 3 phase 400V 50/60Hz, rated Current(A): 16, 20, 25, 40, 50, 63. They are not suitable for use in DC pulse system. They can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk, thus, it is suitable to avoid the shock hazard and fire caused by earth leakage. They are in conformity with the standard of IEC61008.

2.Merits

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Number of poles	4P
Breaking capacity	6KA
Rated current(A)	16,25,40,63,80,100A
Rated voltage(V)	AC 2P 230/240V 4P 400/415V
Rated residual operating current(mA)	30,100,300,500mA
Rated residual non-operation current(In)	0.5In
Residual operating current scope	0.5In~In
Residual current breaking time	≤0.3s
Residual current trip characteristics	A,AC
Ultimate short-circuit breaking capacity	6000A
Endurance	≥4000
Connection Capacity	≤25mm2
Degree of protection	IP20
Standard	IEC/EN610018
Standard	IEC/EN610018

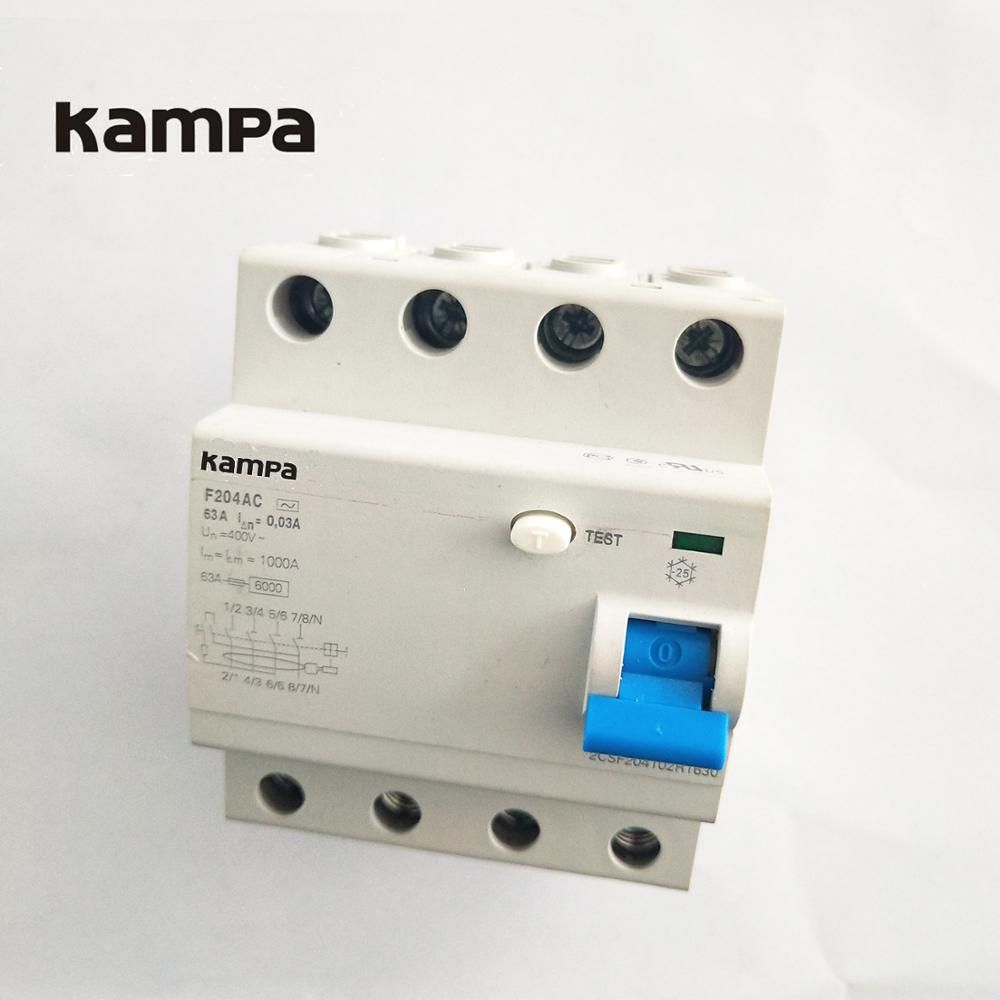

2.the picture

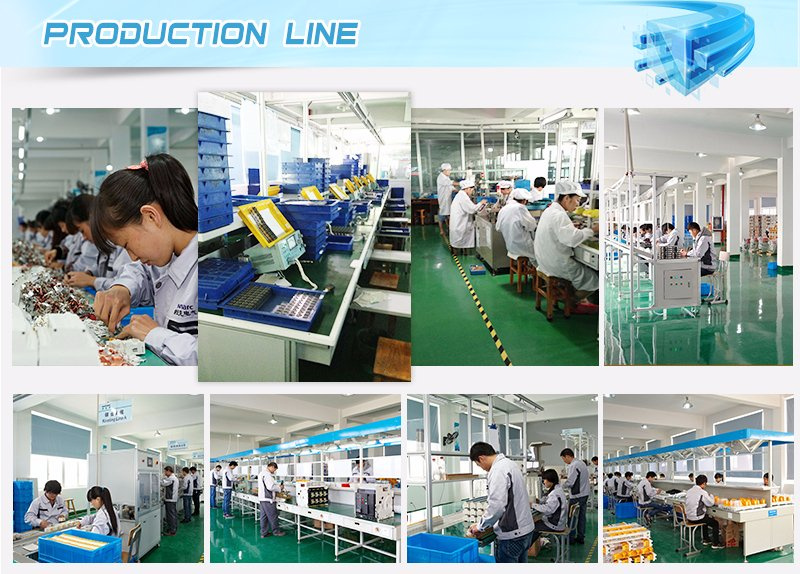

3.production photo of rccb

3.COMPANY INFORMATION

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as

Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,

Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.

We are manufacturer and have ten years experience in Electrical industry.

4. OUR SERVERCE

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

5. OUR ADDRESS

YUEQING KAMPA ELECTRIC CO.,LTD
ad#666,FeiLong Electric,LiuShi Town,YueQing City,ZheJiang,China
Tel:0086-577-62729846
Fax:0086-577-62780320
Website:www.china-kampa.com

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
