| Prod Model: |
R9428A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Enig Au:0.05-0.13um,Ni:2-6um |
| Layers: |
2 |
| Cover Layers 1: |
1mil Adh/1mil Pi |
| Cover Layers 2: |
1.2mil Adh/1mil Pi |
| Other Material: |
3m467/3m467+0.50mm Fr4+3m467 |
| Dimensions: |
17.32 X 35.66mm |
| Line Impedance: |
14+/-1ohm(W=14.8mil) |
| Structure: |
Multilayer FPC |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Digital Products |
| Conductive Adhesive: |
Conductive Silver Paste |
| Material: |
1oz Cu(Ra) 2mil Cu-Ni/1mil Adh/1mil Pi |
Product Description

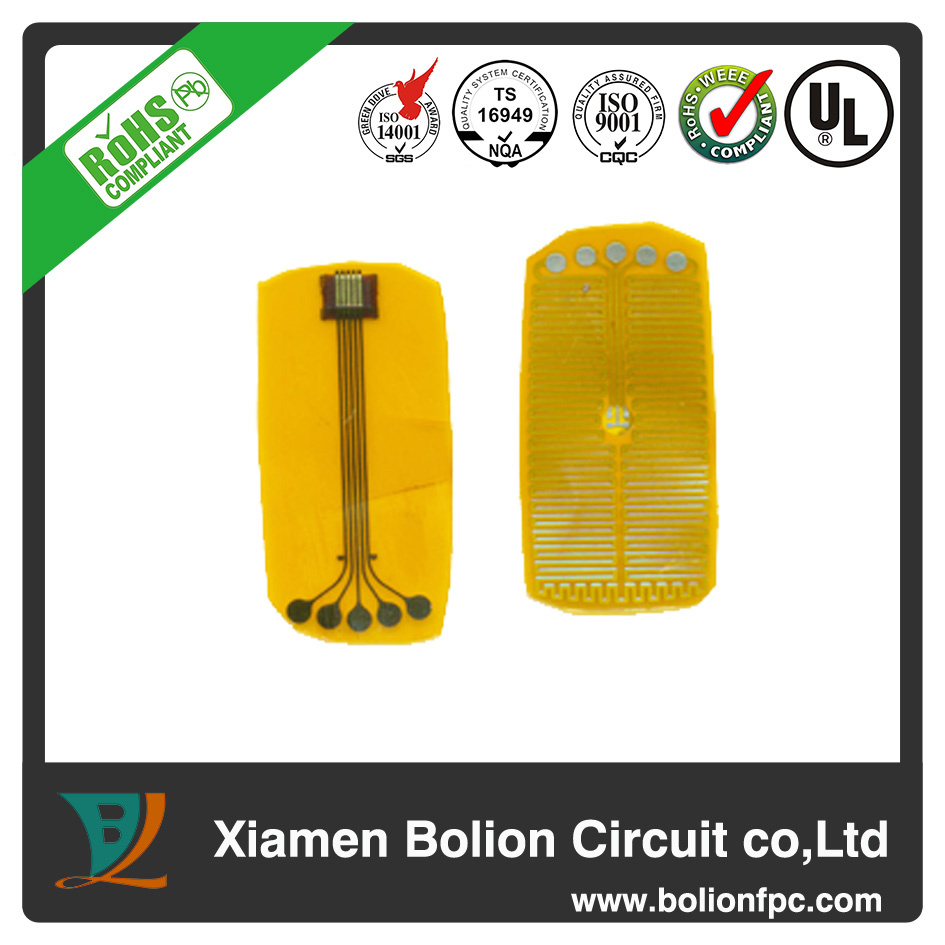

Kapton is a clear, amber colored polyimide film. The process for making Kapton heaters is similar to that of Etched Foil Silicone heaters. The desired circuit pattern is etched onto the bottom layer of Kapton then another layer of Kapton is added to the top to complete the heater. The result is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -300°F (-185°C) and 392°F (200C).
Primary Features:
High tensile strength
Low outgassing
Excellent dimensional stability
Thin, lightweight profile
High watt densities
Transparent material
Kapton Heaters can easily be designed to accommodate a variety of components such as thermostats, thermal fuses, thermocouples, thermistors, RTDs, or specialty wiring harnesses. Typical applications for Kapton heaters include medical diagnostic instruments, LCDs, analytic test equipment and military equipment.
thermo's Kapton heaters have been safety tested and approved, and they are UL recognized under the UL file number E228871.
Kapton is a registered trademark of E.I. du Pont Nemours and Company.
| Main Technique Index |
| Description | Parameters |
| Polyimide | Polyester |
| Base film Thickness (um) | 12.5,25,35,50 | 12.5,25,35,50 |
| Copper Thickness (um) | 12,17.5,35,50,70,105 |
| Min. Line Width/Line Space (mm) | 0.075/0.075 |
| Min. Hole Size (mm) | 0.15 |
| Tolerance (mm) | Outline:+/-0.05; Coverlay: +/-0.2 |
| Peel Strength (kgf/cm) | Above 1.0 | Above 0.8 |
| Solder Resistance | 260C 10 seconds | 204C 5 seconds |
|
|
|
| Surface Treatment |
| Content | Normal coating thickness | Normal PNL size |
| Plating nickel gold (In house) | Ni:2-9um;Au:0.03-0.09um | 300mm×400 MM |
| Plating hard gold (In house) | Ni:2-9um;Au:0.1-1.0um | 300mm×400 MM |
| Plating soft gold (In house) | Ni:2-9um;Au:0.03-0.09um | 300mm×400 MM |
| Plating pure tin (In house) | 2.0-8.0um | 300mm×400 MM |
| Immersion Tin (In house) | 0.3-0.6um | 300mm×400 MM |
| OSP (In house) | N/A | 300mm×400 MM |
| ENIG (Hard Nickel) (In house) | Ni:2-6um;Au:0.03-0.10um | 300mm×400 MM |
| ENIG (Soft Nickel) (In house) | Ni:2-6um;Au:0.03-0.10um | 300mm×400 MM |
| ENEPIG (Hard Nickel) (In house) | Ni:2-6um;Au:0.03-0.10um | 300mm×400 MM |
| HASL (Outsource) | Cover the pads with min thickness 1~2 um | 300mm×400 MM |
| Immersion silver (Outsource) | Per standand creteria | 300mm×400 MM |

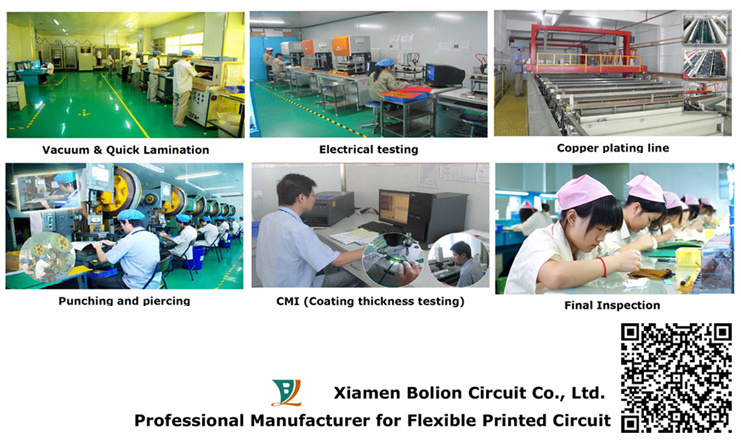

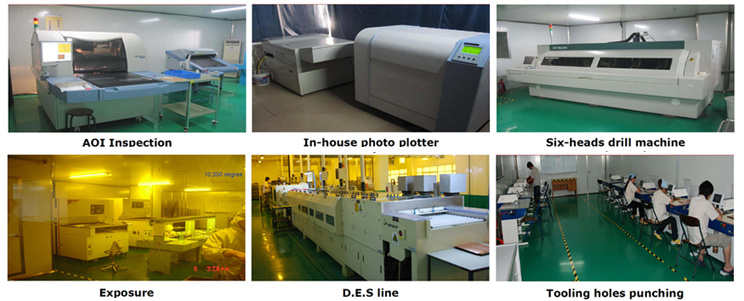

Xiamen Bolion Ciruit Co., Ltd is an expert manufacturer that specializes in flexible Circuit boards & Rigid-Flex PCB based in China since 2003.
All of our facilities are ISO 9001, ISO 13485(Medical decices), ISO 14001, TS 16949(Automotive) RoHS, and UL(E228871) certified. This investment into equipment and training has transformed Bolion into a global supplier of Ultra-High Quality flexible and rigid-flex boards.
The key markets we serve are primary located in North America and Europe include Top 500 companies in the Medical, Automotive, Wearable, and CM/EMS industries.
Bolion Tech major in High-mix Low volume production, provide quality, cost-effective solution, on time for our customers.
Quick lead-times:
-Single layer Flex: 2~5 days
-Double layer Flex: 2~5 days
-Multi-layer Flex(Max. 12 layers): 4~8 days
-Rigid Flex: 5~8 days
Bolion's commitment to you is that we will strive to become a full member of your engineering and manufacturing team focused on delivering you high quality products and service, on time, while achieving your stated technical and cost goals.
Bolion Business extends: With more than 13 years developing, Bolion now add in house SMT line, devoted to provide one-step service for our customers.
If you are interested in finding an FPC/Rigid-Flex PCB and SMT supplier in China, please freely contact us, I do believe Bolion will be your good choice.
