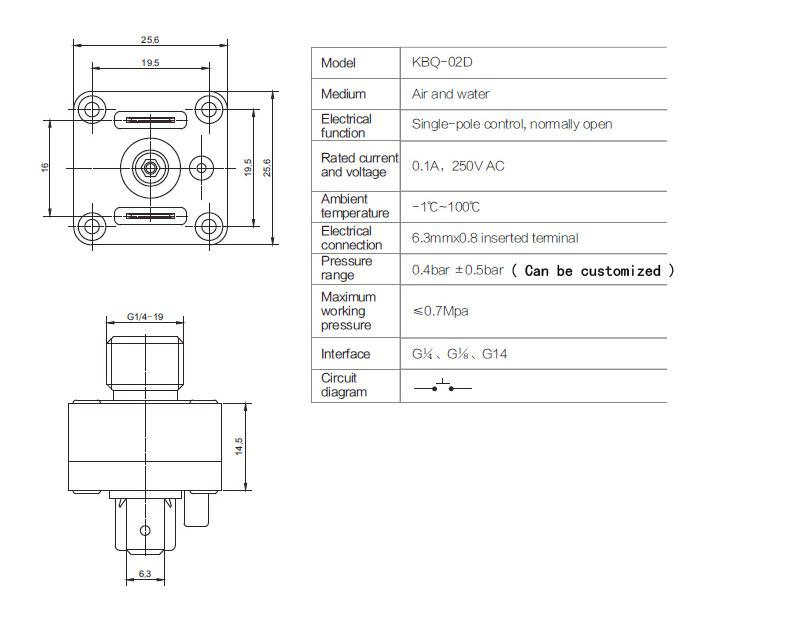

Kbq-02D Water Pressure Switch

Name: Kbq-02D Water Pressure Switch
Brand: all-electronics-online.com
SKU: 826320955
Availability: InStock
Rating: 4.4 (69 reviews)

Price:	US $ 1.3-1.5/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	kbq02D
Colour 1:	White
Colour 2:	Clear
Contactor 1:	Golden
Contactor 2:	Silver
Contactor 3:	Normally Close

Product Description

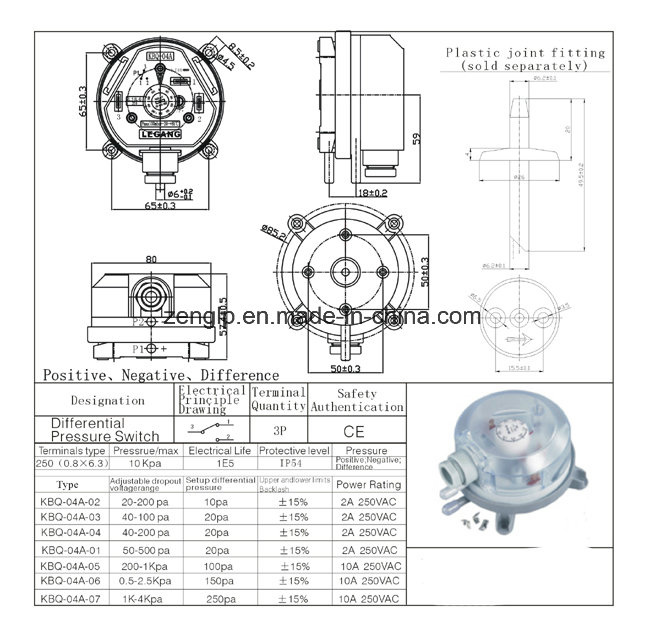

KBQ-04A series pressure difference switches can sense micro pressure change to conduct on-off action. This type of pressure difference switches is widely applied to flow control filters, air blowers and air valves of ventilating systems. It can also be applied to heater coil overheat protection and industrial cooling circuit frost protection. The product is visible and adjustable, and can visibly adjust the operation value of the pressure difference switch.

medium	Non-corrosive gas
Electrical function	single-pole control,nomally open
Rated current and voltage	20ma 250V AC
Temperature range	-10ºC to -90ºC
Electrical connection	Diameter of welding foot 1.0mm,spacing 10mm or configuring wining and inserted teminal
Pressure range	Negative pressure:-1 to -80kpa
Maximum working pressure	-100KPA
Interface	outer diameter 4mm or 5mm
Circuit diagram	Normally open
Circuit diagram	Normally colse
