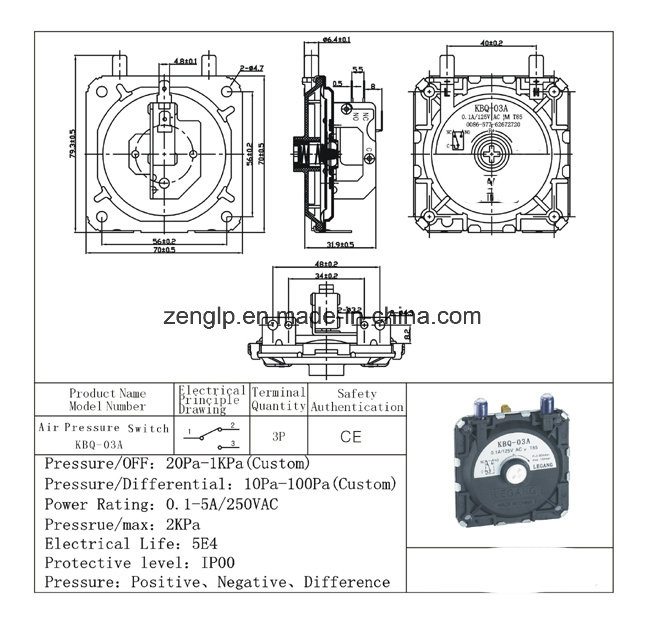

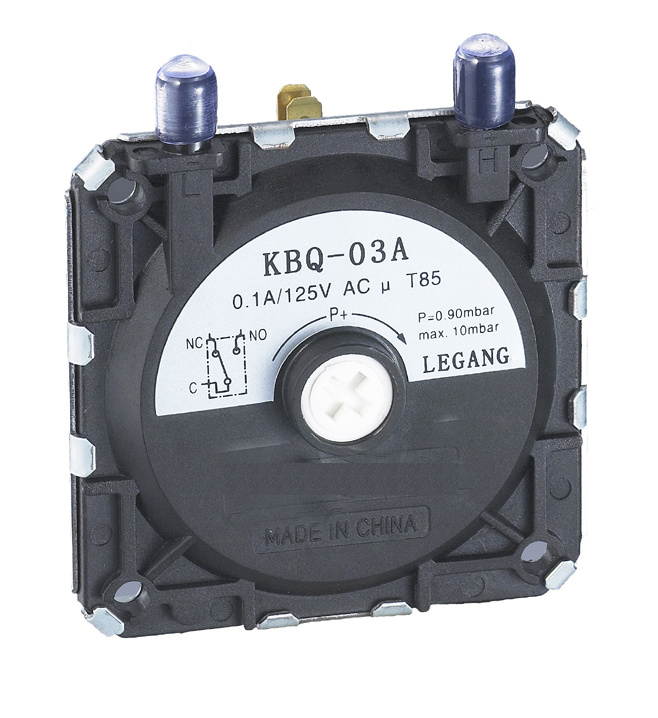

Kbq-03A Micro Pressure Switch

Name: Kbq-03A Micro Pressure Switch
Brand: all-electronics-online.com
SKU: 826305165
Availability: InStock
Rating: 5 (150 reviews)

Price:	US $ 2-2.3/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	kbq03a
Colour 1:	White
Colour 2:	Clear
Contactor 1:	Golden
Contactor 2:	Silver
Contactor 3:	Normally Close

Product Description

KBQ-03A series wind pressure switches take use of pressure difference to facilitate the precise operation of microswitches under the setting pressure. The pressure difference comes from the atmosphere and positive pressure or negative pressure or any 2 different given pressures. If the positive pressure chamber and the negative pressure chamber change, the primary diaphragm will activate the micro-switch at the preset value.
Application: it can detect the air flow in strong traction equipments and give the signal of positive and negative zero air motion; it can automatically turn off the blocked heating pipe and air conditioner; it can supervise weak or dangerous burning; it can give indication if the filter is too dirty, blocked, etc.

medium	Non-corrosive gas
Electrical function	single-pole control,nomally open
Rated current and voltage	20ma 250V AC
Temperature range	-10ºC to -90ºC
Electrical connection	Diameter of welding foot 1.0mm,spacing 10mm or configuring wining and inserted teminal
Pressure range	Negative pressure:-1 to -80kpa
Maximum working pressure	-100KPA
Interface	outer diameter 4mm or 5mm
Circuit diagram	Normally open
Circuit diagram	Normally colse
