Yueqing Jinshenghua Electronic Co., Ltd. >> Kcd1-106-N Spst Red Illuminated Rocker Switch 6A 250V

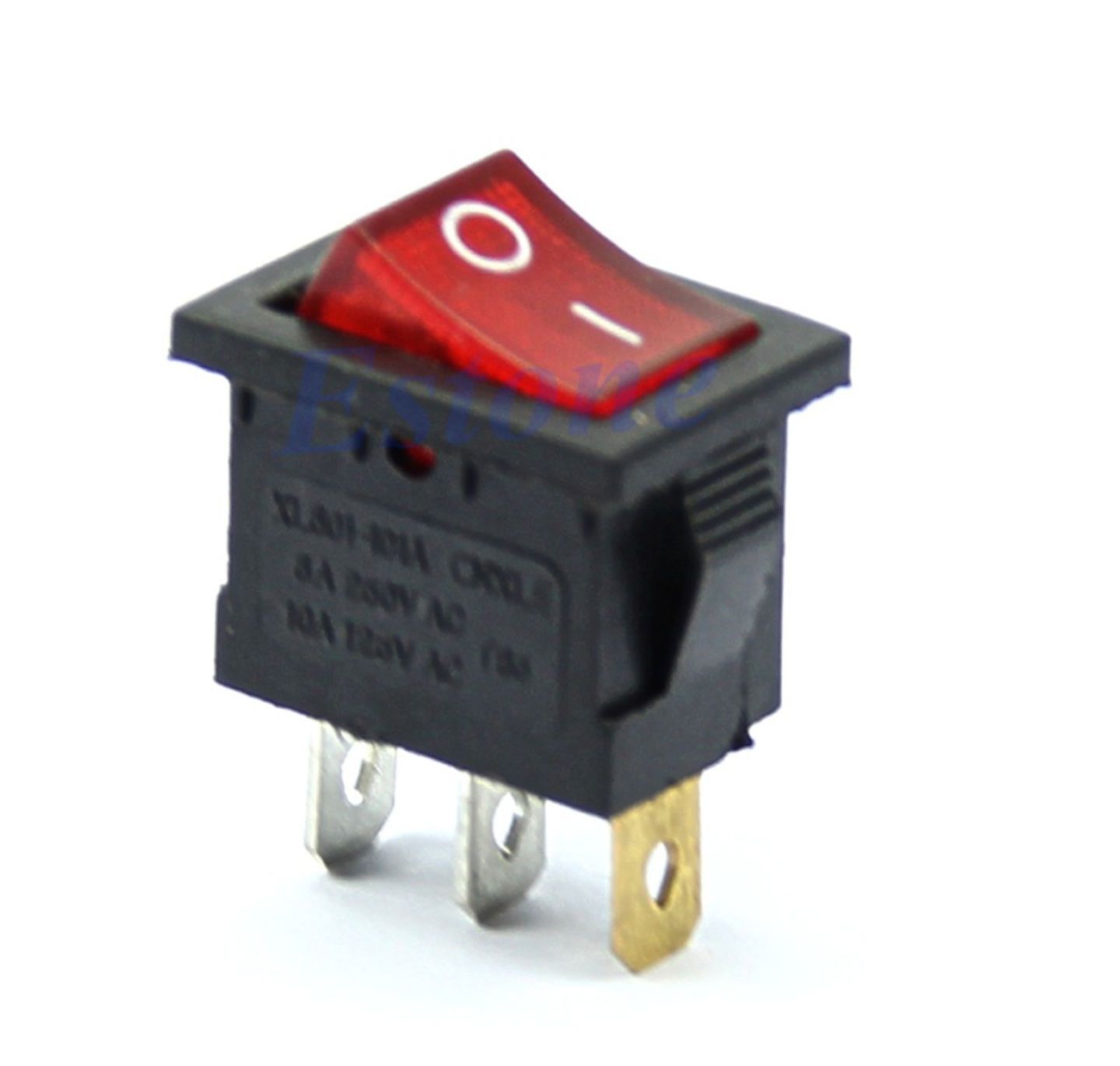

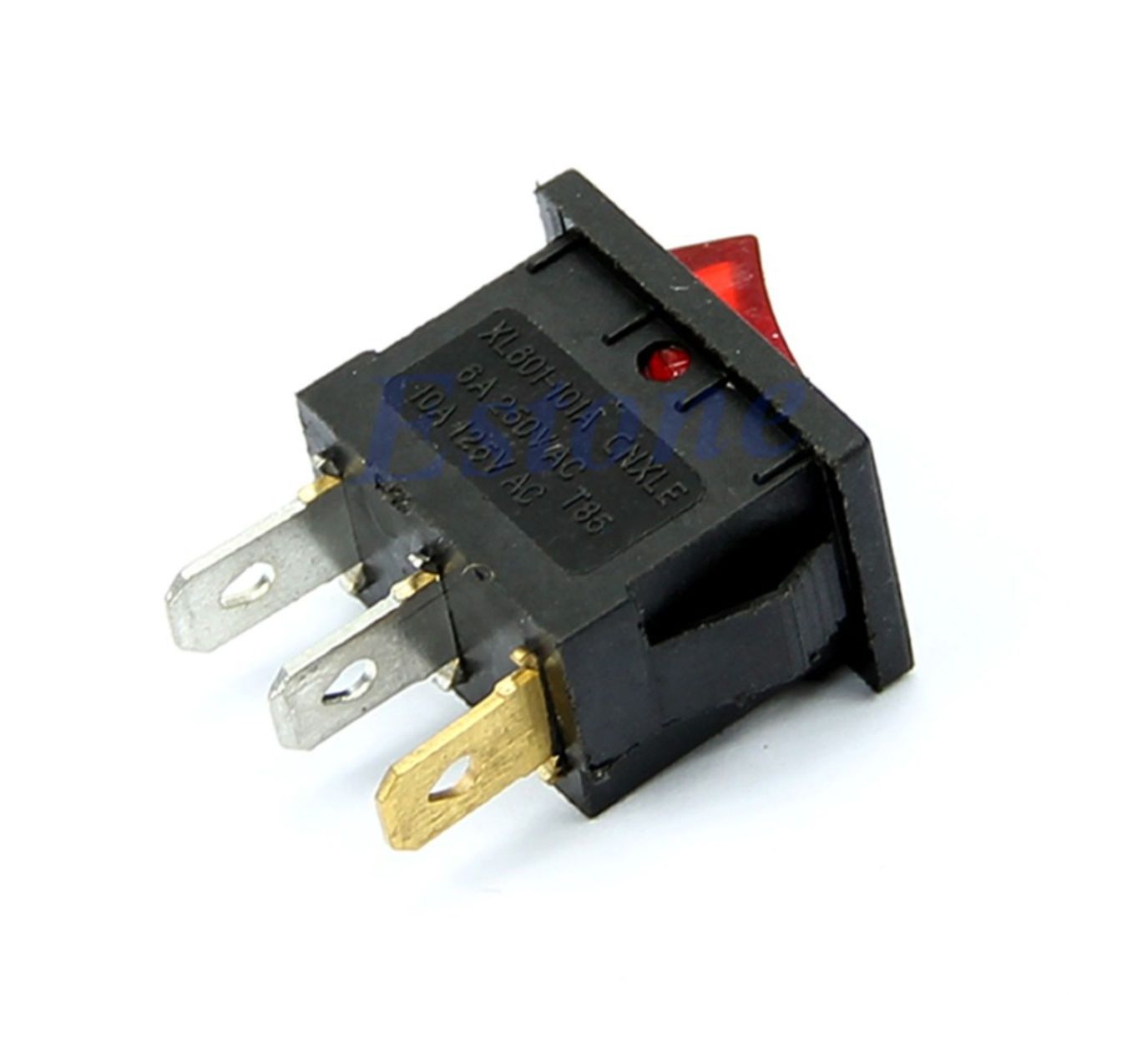

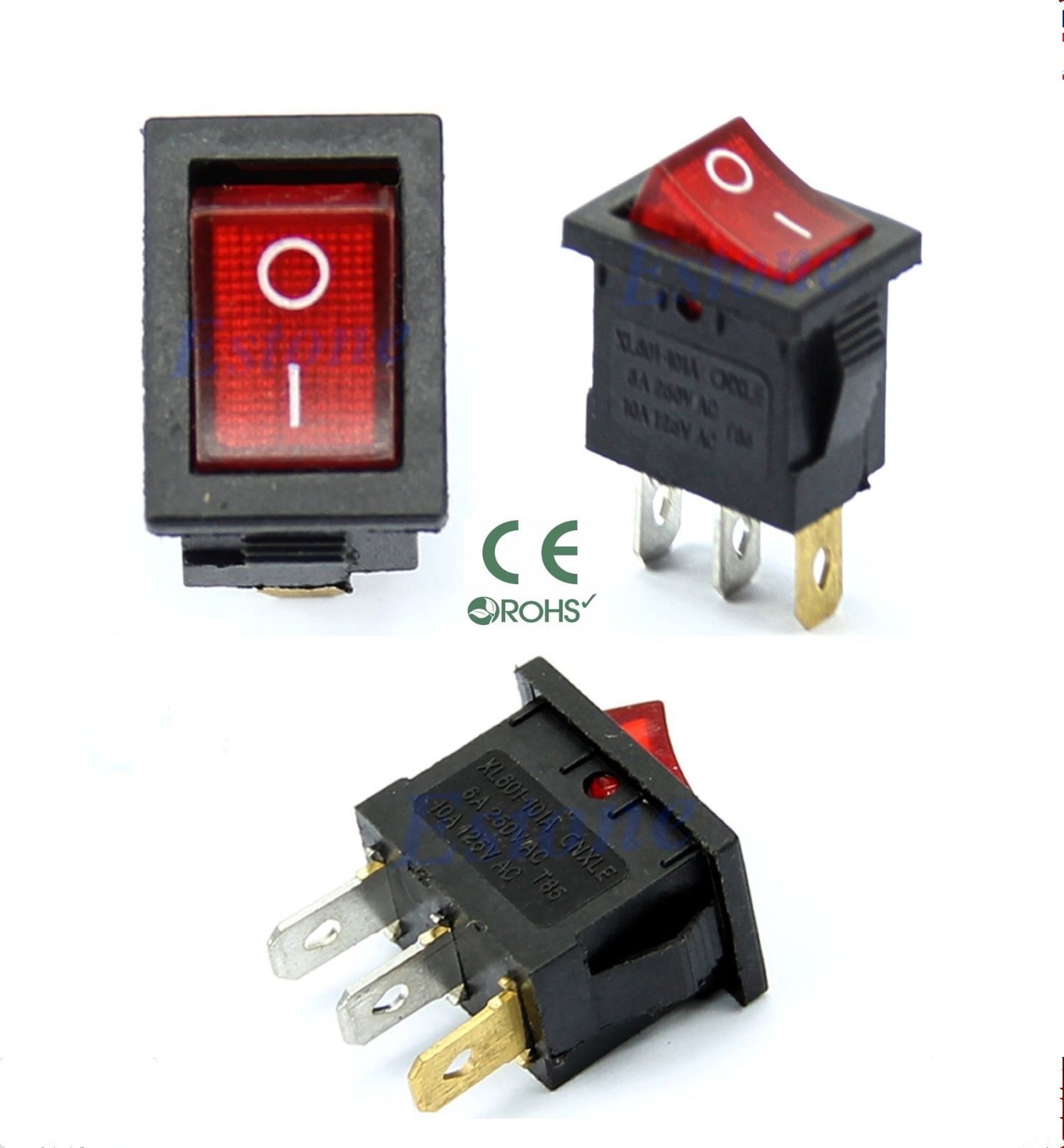

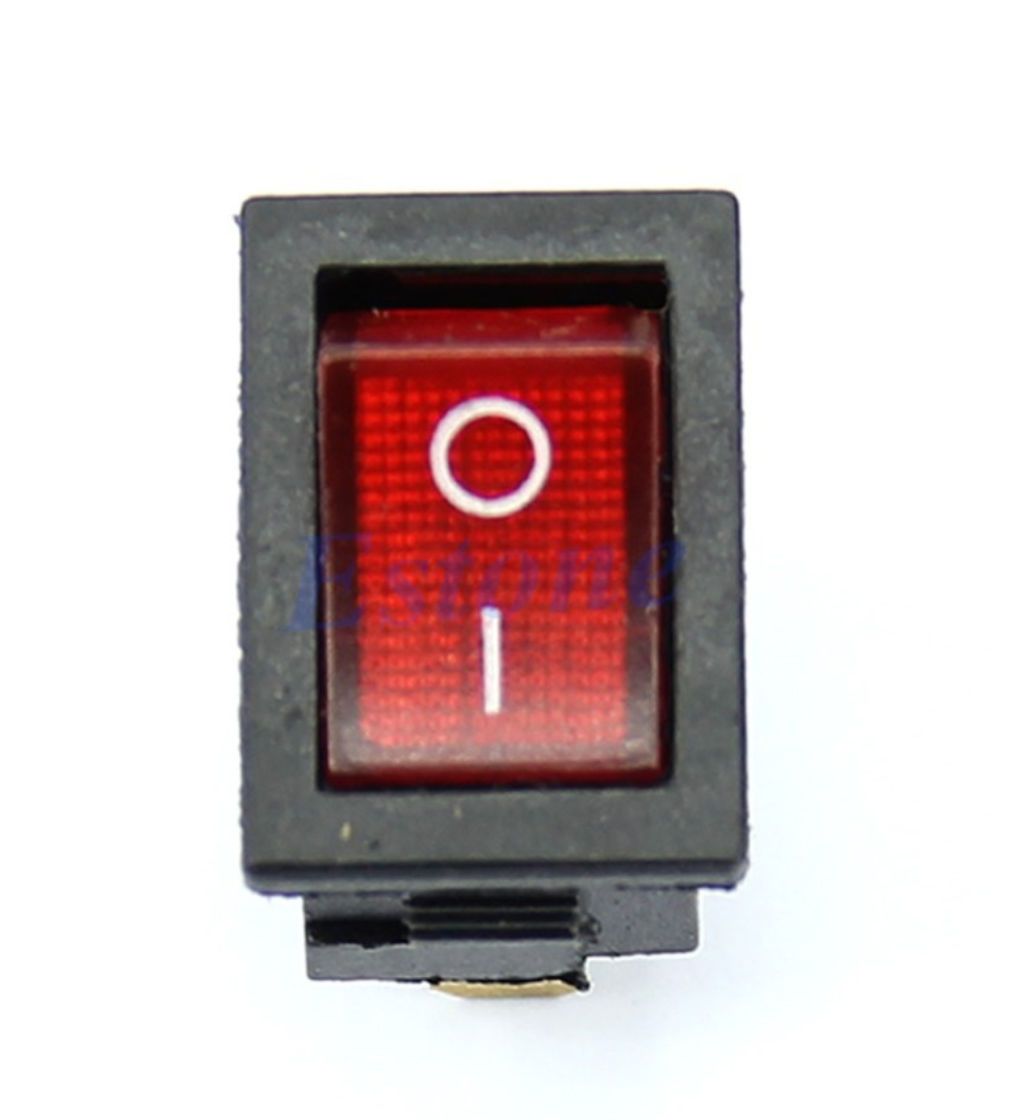

Kcd1-106-N Spst Red Illuminated Rocker Switch 6A 250V

Kcd1-106-N Spst Red Illuminated Rocker Switch 6A 250V
Price: US $ 0.11-0.15/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KCD1-106
Usage: Electrical Appliance
Standard: Standard
Lamp: With Lamp
Color: Red
Certification: TUV UL
Condition: New

Product Description


The Main Technical Parameters

ItemMini ON OFF Rocker Switch
MterialPA66 /PC
Rating10A 125VAC/6A 250VAC
Contact Resistance≤50MΩ
Insulation Resistance≥500VDC100mΩ
OperatingTemperature-25C~+85C
Ambient Temperature-10ºC~+85 ºC
Dielectric Strength1500VAC,1 Minute
TypeROCKER SWITCH
Elactric life>10000 Cycles
Electrical Life>50000 Cycles
Terminals & Mid pinsCopper with silver plated
ContactsCopper with compound silver
Terminals & Mid pinsCopper with silver plated
