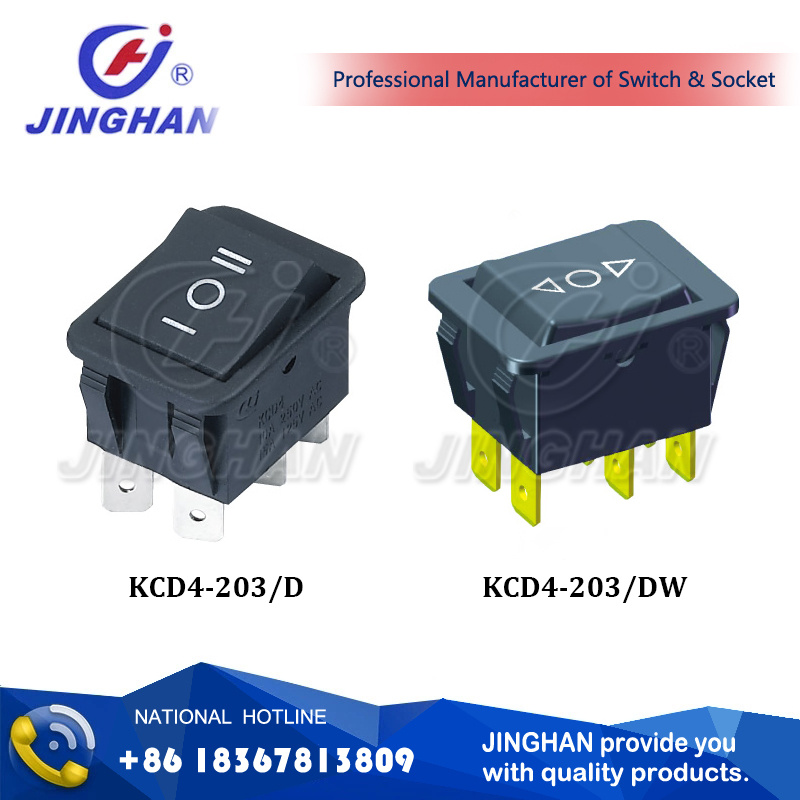

Kcd4-203 on-off Switch/ on-on Switch/Rocker Switch

Prod Model:	KCD4-203
Max. Current:	16A
Protection Level:	V0
Max. Voltage:	250V
Standard:	Standard
Certification:	CQC,TUV,UL
Condition:	New

Product Description

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: JINGHAN
Model Number: KCD4-203/D
Protection Level: V0
Max. Current: 16A
Max. Voltage: 250V
Mechanical Life: 10000-50000
Button Color: black and other
Housing: black
Materia: PA66
Insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
Ambient temperature: T85
Safely approvals: CQC,RoHS,CE,TUV
Packaging & Delivery

Packaging Details:	Cartons and plastic bags,depends on the customer's demand


Product Description

Main technical characteristics


Rocker  Switch
Rating		16(10)A,250VAC;20A 125VAC		Operating Temp.	-25+85°C
Contact Resistance		50MΩ Max		Electrical life	10000 Cycles
Insulation Resistance		100MΩ Min		Withstand Voltage	1500VAC/5S
Material	Housing & Light bracket		PA66	Contacts	Copper with compound silver
	Push button		PC	Terminals & Mid pins	Copper with silver plated
	Waterproof cover(Optional)		PVC	Side pins	Brass with silver plated

FAQ
Application:  The products are widely used in electronic instruments, automatic machine controllers, electrical gardening engines, household appliances and electronic toys, etc.
Quality:   We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
