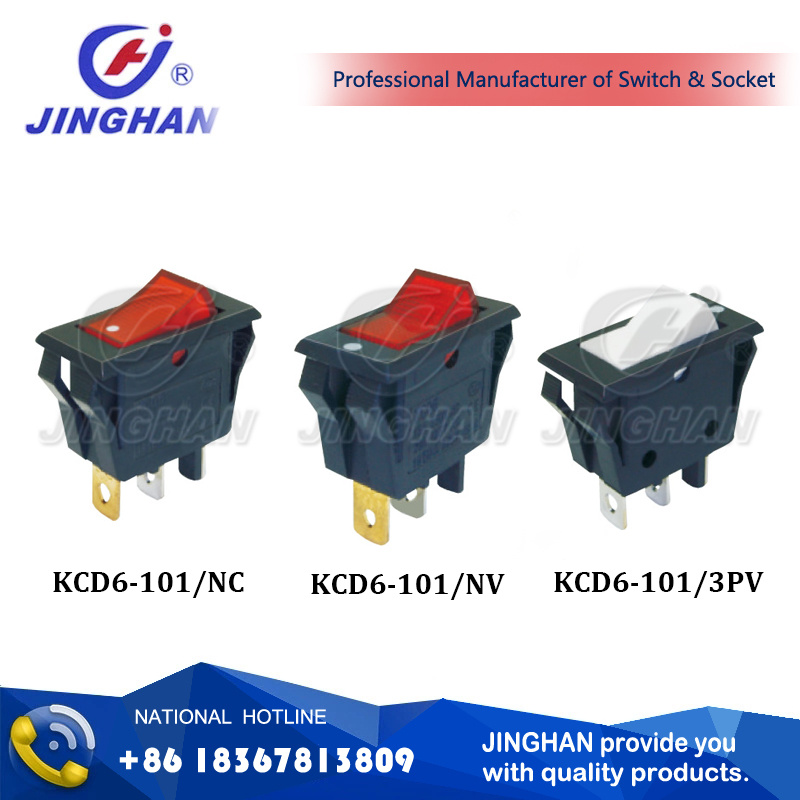

Kcd6-101 Single Pole Rocker Switch T85

Prod Model:	KCD6-101
Max. Current:	20A
Max. Voltage:	250V
Mechanical Life:	10000-50000cycles
Standard:	Standard
Certification:	CQC,TUV,UL
Condition:	New

Product Description

Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: JINGHAN
Model Number: KCD6-101
Max. Current: 20A
Max. Voltage: 250V
Mechanical Life: 10000-50000Cycles
COLOR: black .red.yellow.green.blue.gray.white
contact resistance: ≤50
insulation resistance: ≥100
glow-wire test: 750
contact points: sliver alloy
Safety certification: CQC CE TUV ROHS
Packaging & Delivery

Packaging Details:	rocker switch packed with export carton
Delivery Detail:	Shipped in 30 days after payment




Product Description

Main technical characteristics


Rocker  Switch
Rating		16A 250V AC 20A 125V AC		Operating Temp.	-25+85°C
Contact Resistance		≤50MΩ		Electrical life	≥10000 Cycles
Insulation Resistance		≥100MΩ		Withstand Voltage	1500VAC/5S
Material	Housing & Light bracket		PA66	Contacts	Copper with compound silver
	Push button		PC	Terminals & Mid pins	Copper with silver plated
	Waterproof cover(Optional)		PVC	Side pins	Brass with silver plated


 FAQ

Application:  The products are widely used in electronic instruments, automatic machine controllers, electrical gardening engines, household appliances and electronic toys, etc.
Quality:   We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
