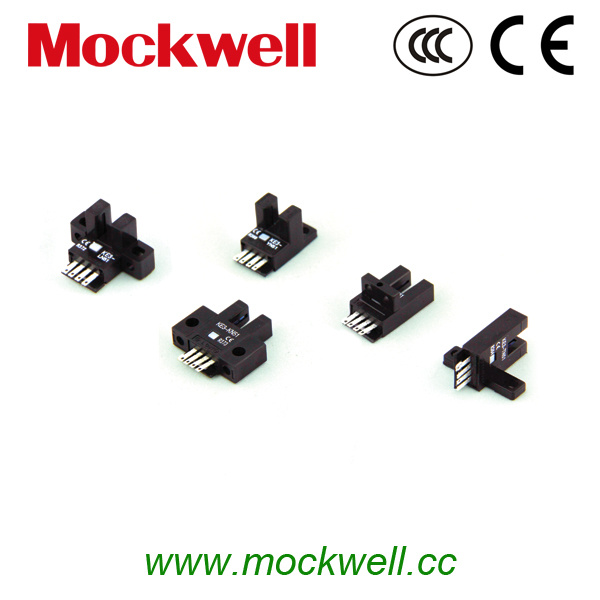

Ke3 Series Slot-Type Photoelectric Micro Sensor

Prod Model:	KE3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	One Year
IP Rating:	IP50

Product Description

Slot-type Photomicrosensor
Series includes models that enable switching between dark-ON and light-ON operation.
Response frequency as high as 1 kHz.
Easy operation monitoring with bright light indicator.
Wide operating voltage range: 5 to 24 VDC
Models in which the light indicator turns ON for dark-ON operation are also available.
A wide range of variations in five different shapes.
Flexible robot cable is provided as a standard feature.

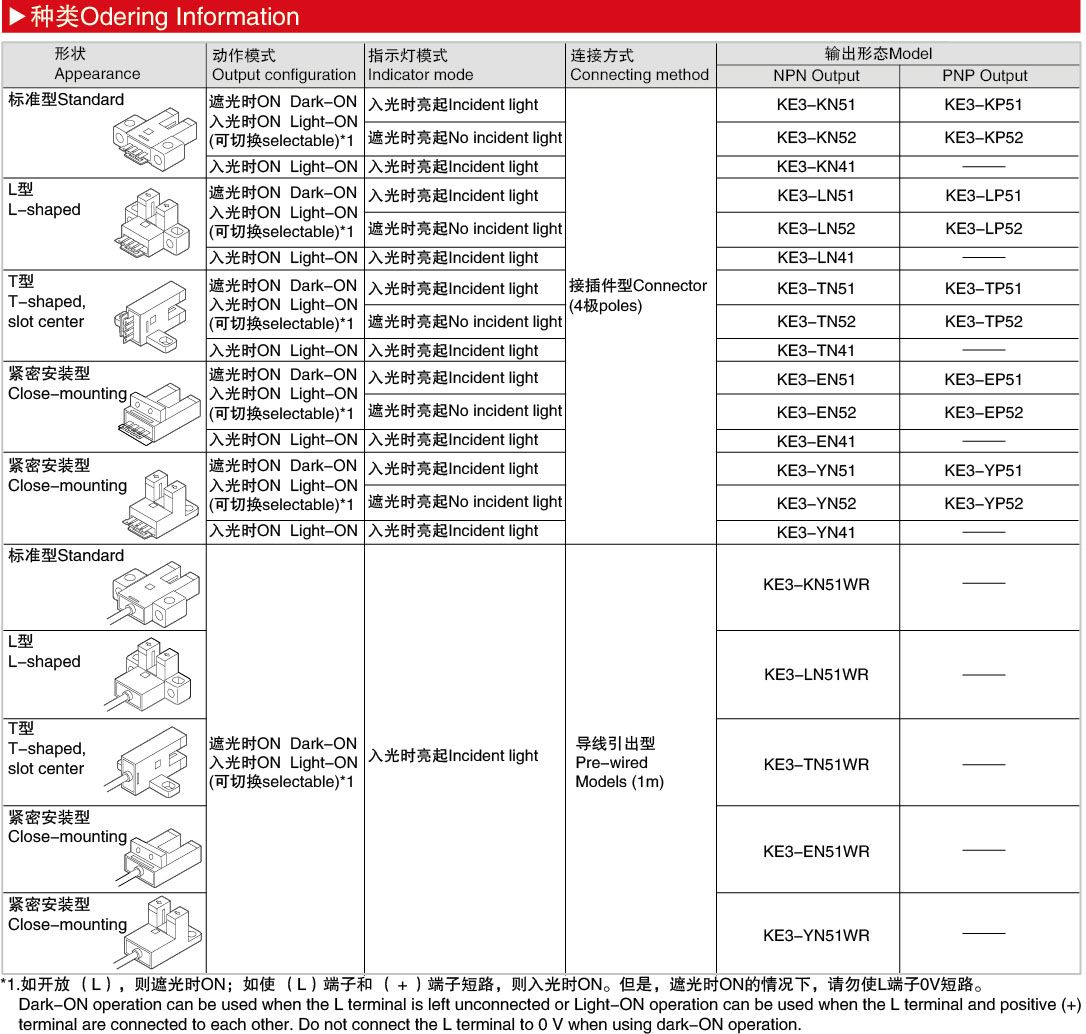

Ordering information:

Model	appearance	can be replacement of
KE3-KN51	Standard	EE-SX670
KE3-KP51	Standard	EE-SX670P
KE3-KN52	Standard	EE-SX670A
KE3-KP52	Standard	EE-SX670R
KE3-KN41	Standard	EE-SX470
KE3-LN51	L-shaped	EE-SX671
KE3-LP51	L-shaped	EE-SX671P
KE3-LN52	L-shaped	EE-SX671A
KE3-LP52	L-shaped	EE-SX671R
KE3-LN41	L-shaped	EE-SX471
KE3-TN51	T-shaped	EE-SX672
KE3-TP51	T-shaped	EE-SX672P
KE3-TN52	T-shaped	EE-SX672A
KE3-TP52	T-shaped	EE-SX672R
KE3-TN41	T-shaped	EE-SX472
KE3-EN51	Close-mounting	EE-SX673
KE3-EP51	Close-mounting	EE-SX673P
KE3-EN52	Close-mounting	EE-SX673A
KE3-EP52	Close-mounting	EE-SX673R
KE3-EN41	Close-mounting	EE-SX473
KE3-YN51	Close-mounting	EE-SX674
KE3-YP51	Close-mounting	EE-SX674P
KE3-YN52	Close-mounting	EE-SX674A
KE3-YP52	Close-mounting	EE-SX674R
KE3-YN41	Close-mounting	EE-SX474
KE3-KN51WR	Standard	EE-SX670-WR
KE3-LN51WR	L-shaped	EE-SX671-WR
KE3-TN51WR	T-shaped	EE-SX672-WR
KE3-EN51WR	Close-mounting	EE-SX673-WR
KE3-YN51WR	Close-mounting	EE-SX674-WR
