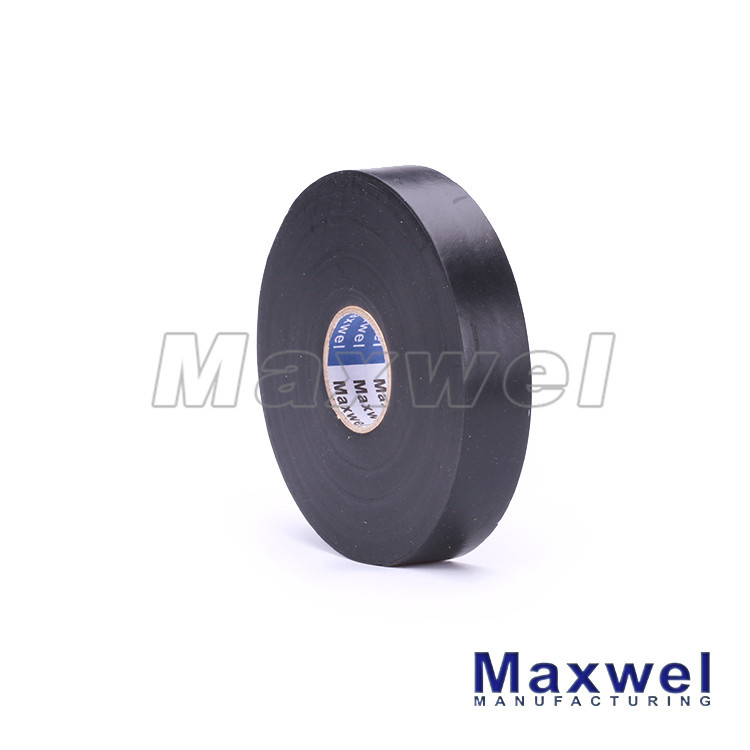

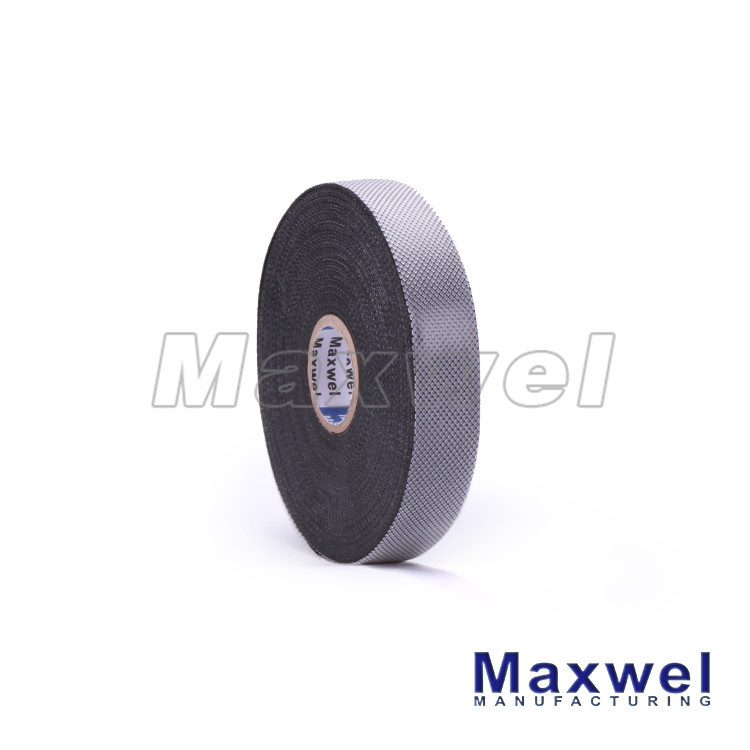

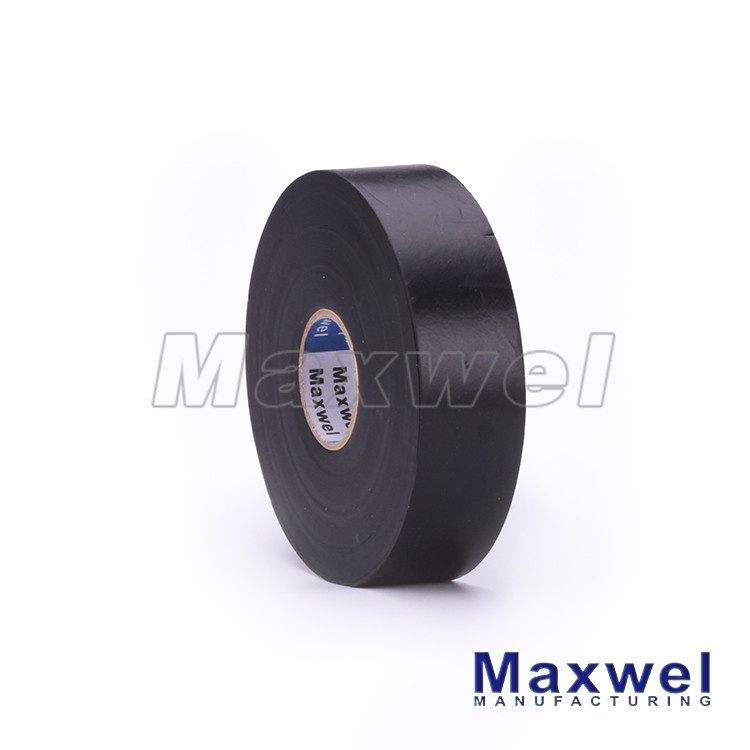

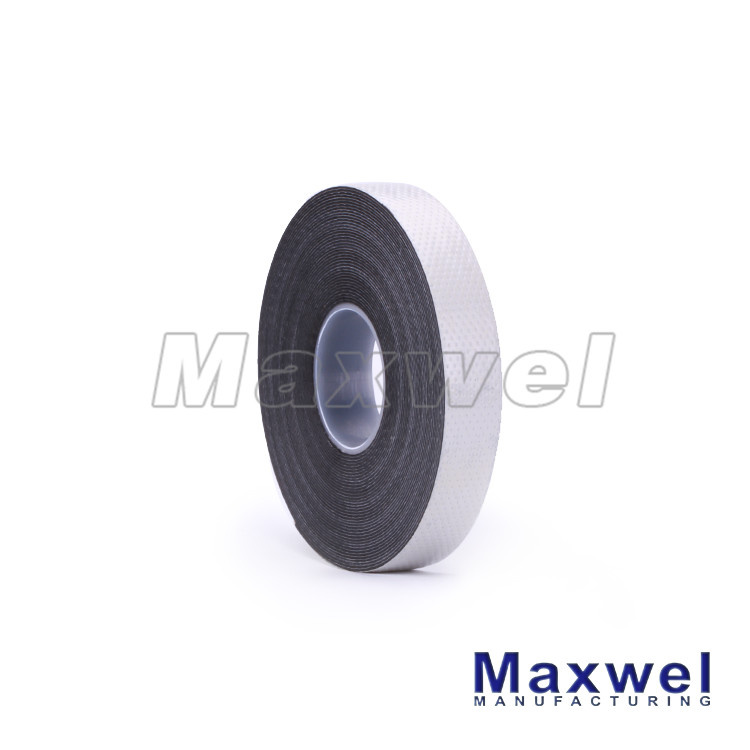

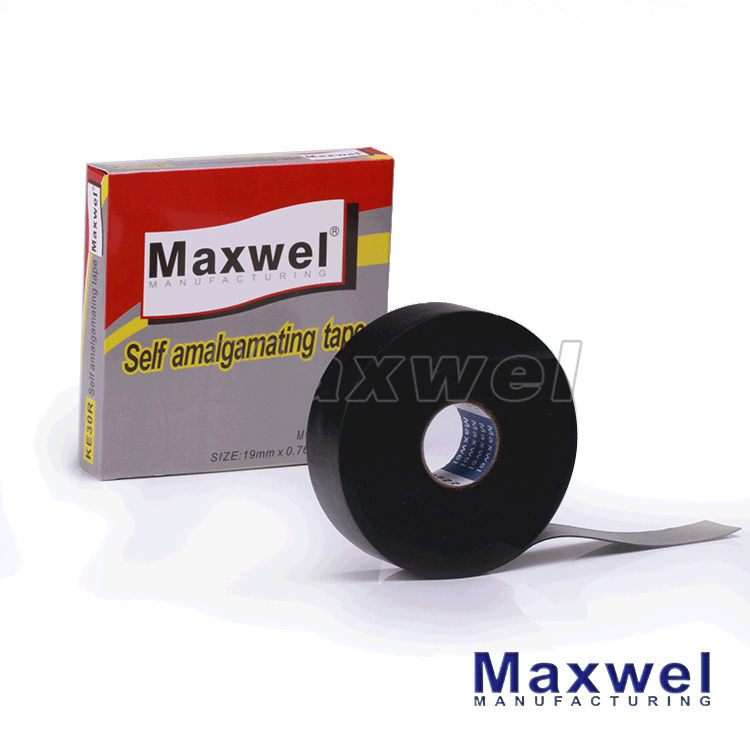

Ke30r High Voltage Insulation Self-Fusing Tape

Prod Model:	KE30R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	19mm*0.76mm*9.14
Colour:	Black
Elongation:	500%
Tensile Strength:	1.5MPa
Disruptive Voltage:	5kv/mm
Working Temperature:	-20 -90 Degree
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	250 250
Maximum Voltage:	>100KV
Material:	Epr Tape

Product Description

Self amalgamating, Insulating and Splicing Tape

1. KE30R tape is mainly made from EPR. They are non-vulcanizing and shelf-stable with excellent electrical features.
2. KE30R tape can be used as insulation for low voltage applications as well as insulation for cable joints up to 69kv.

Features:
Non-vulcanizing and highly conformable
Physical and electrical features are unaffected by the degree of stretch
Can be stretched up to 800% to make void-free
Moisture-resistant insulation, self-amalgamating tape
Excellent electrical properties

Application:
Primary insulation to make stress cones on cables up to 35kv
Primary electrical insulation for cable jointing and terminating up to 69kv with up to 90 degree continuous operating temperature and 130 degree emergency overload temperature

Model	Tensile Strength	Elongation	Disruptive Voltage
	(Mpa)	(%)	(KV/mm)
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35
