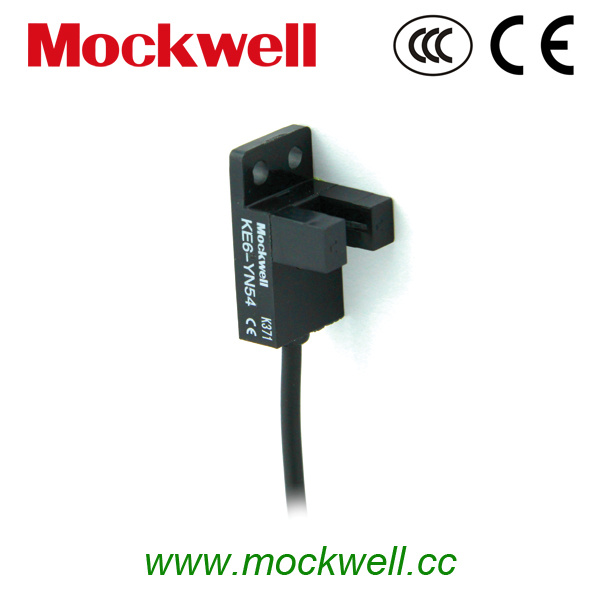

Ke6-Yn54 Series U-Type Photoelectric Micro Sensor

Prod Model:	KE6-YN54
Warranty:	One Year
IP Rating:	IP50

Product Description

U-type Photomicrosensor
Miniature Size.
Quick connection type available.
Dark-ON and Light-ON selectable.
Response frequency as high as 1kHz.
Wide operating voltage: 5 to 24VDC.


Model	Appearance	connecting method	can be replacement of
KE6-KN54	K-shaped	Pre-wired 1meter	PM-K44
KE6-TN54	T-shaped	Pre-wired 1meter	PM-T44
KE6-LN54	L-shaped	Pre-wired 1meter	PM-L44
KE6-YN54	Y-shaped	Pre-wired 1meter	PM-Y44
KE6-RN54	R-shaped	Pre-wired 1meter	PM-R44
KE6-KN54H	K-shaped	4poles connector	PM-K44
KE6-TN54H	T-shaped	4poles connector	PM-T44
KE6-LN54H	L-shaped	4poles connector	PM-L44
KE6-YN54H	Y-shaped	4poles connector	PM-Y44
KE6-FN54H	F-shaped	4poles connector	PM-F44
KE6-RN54H	R-shaped	4poles connector	PM-R44
