Gromy Industry Co., Ltd. >> Keli Load Cell Uda 50kg-800kg

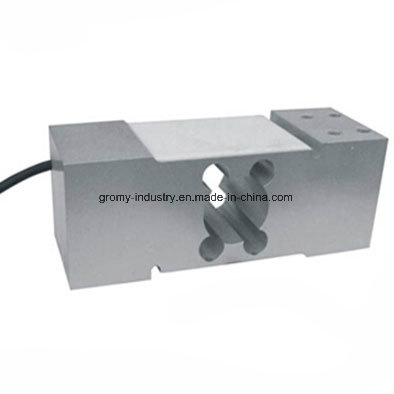

Keli Load Cell Uda 50kg-800kg

Keli Load Cell Uda 50kg-800kg
Price: US $ 1-100/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: UDA
Capacity: 50kg-800kg
Pattern: Single Point
Material: Steel

Product Description

FEATURES:

Capacity: 50kg to 1t
Compact structure,easy installation
OIML C3 approval


APPLICATION:

Big size platform scale
Variety kinds of press testing device

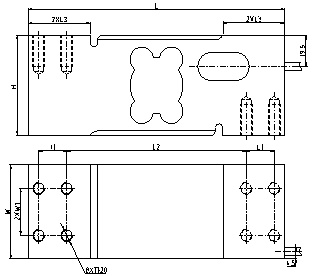

Outline Dimension:



Rated capacity

L

L1

L2

L3

H

W

W1

T



50,100,150,200,250,300,500,750,800kg,1t

174

19

122

42

63.5

59.5

30

M8






SPECIFICATION:

Rated capacity: 50kg to 1t

Recommended Excitation:10V DC

Rated output:2.0±0.2mv/v

Maximum Excitation:15V DC

Combined error: OIML C3

Environment protection: IP65

Zero balance: ±3%Emax

Input impedance: 404±15Ω

Creep error(30minutes):±166ppm

Output impedance: 350±3Ω

Temperature effect on zero: ±17.5ppm/ºC

Insulation resistance at 50V DC: ≥2000MΩ

Temperature effect on output:

+20ºC~+40ºC,±0.0175%F.S/10ºC

-10ºC~+20ºC,±11.67ppm/ºC"

Material: Aluminum

Compensated temperature range: -10ºC~+40ºC

cable length: 1.8meter, diameter Φ5mm

Operating temperature range: -20ºC~+50ºC

Max. platform size:600×600mm

Maximum safe overload:150%Emax

Installation torque, recommended:

25N.m(50kg~300kg),30N.m(500kg~1t)
