Keli OIML Approval S Type Load Cell Dee/Def 50kg-7.5t

Name: Keli OIML Approval S Type Load Cell Dee/Def 50kg-7.5t
Brand: all-electronics-online.com
SKU: 733091005
Availability: InStock
Rating: 4.5 (145 reviews)

Price:	US $ 30-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DEE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	50kg-7.5t
Accuracy Class:	C2-C5

Product Description

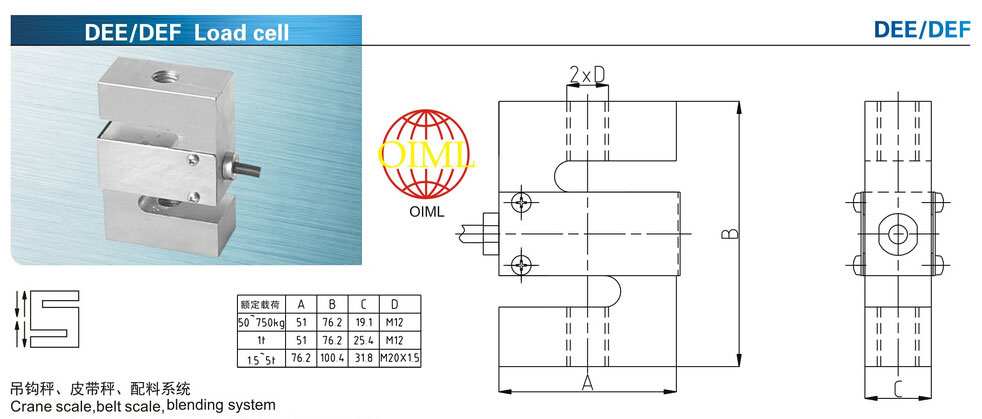

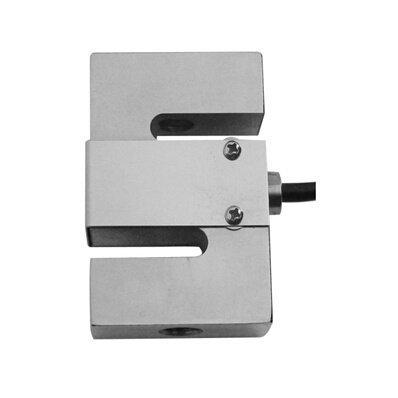

KELI Brand S type DEE/DEF

Special use for crane scale, belt scale, blending system.

Rated capacities: 50, 100, 150,200, 250, 300, 500, 750kg; 1, 1.2, 1.5, 2, 3, 5t, 7.5t.
Sensitivity: 2.0±0.003mV/V(DEE); 3.0±0.003mV/V(DEF)
Accuracy class: C2-C5

Specifications:
Zero balance: ±1%F.S
TCO(Temperature effect on zero): ±0.002%F.S/10ºC
TC SPAN: ±0.002%F.S/10ºC
Input impedance: 400±20Ω
Output impedance: 352 ±3Ω
Insulation impedance: ≥5000MΩ
Temperature range, compensated: -10ºC~+40ºC
Temperature range, operating -30ºC~+70ºC
Maximum safe overload: 120%F.S
Ultimate overload: 150%F.S
Excitation, recommend: 10-12V DC
Excitation maximum: 15VDC
Protection class: IP65(100~1000kg); IP68(1200~5000kg)
Construction: alloy steel, stainless steel
Cable: length 5m, diameter Φ5mm
