Keli OIML Approval Shear Beam Load Cell Sqb 3t-10t

Name: Keli OIML Approval Shear Beam Load Cell Sqb 3t-10t
Brand: all-electronics-online.com
SKU: 733090875
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 18-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SQB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	3t-10t
Accuracy Class:	0.03
Material:	Alloy Steel

Product Description

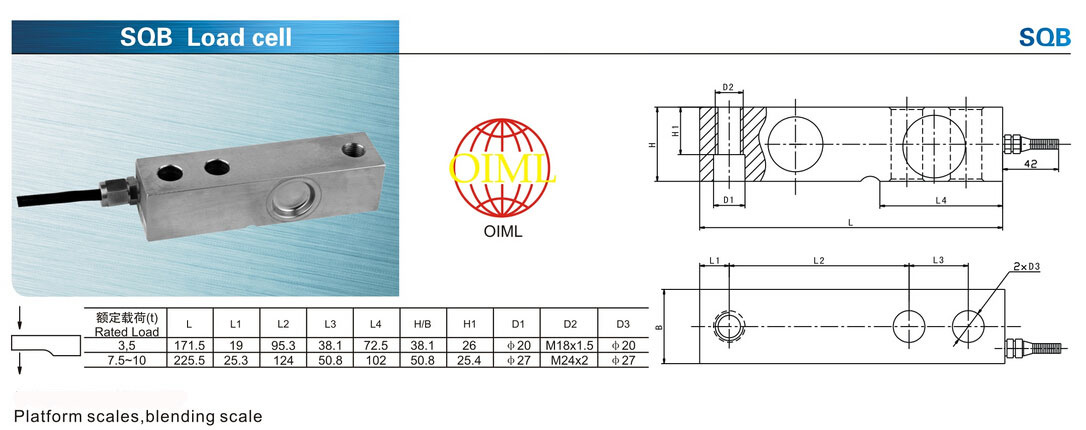

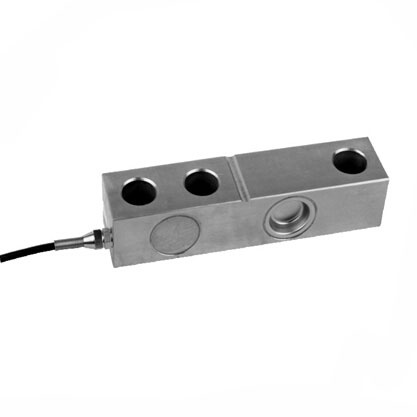

KELI Shear beam load cell SQB/SQB-A/SQB-SS

Special use for floor scale, blending scale, low platform scale.
1. OIML approval
2. Rated capacities: 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 5, 7.5, 10t
3. Sensitivity:3.0±0.003mV/V(0.5~10t); 2.0±0.002mV/V(0.25~0.3t)
4. Accuracy class: C2-C5

Specifications:
Zero balance: ±1%F.S
TCO: ±0.002%F.S/10ºC
TC SPAN: ±0.002%F.S/10ºC
Input impedance: 400±20Ω
Output impedance: 352 ±3Ω
Insulation impedance: ≥5000MΩ
Temperature range, compensated: -10ºC~+40ºC
Temperature range, operating -30ºC~+70ºC
Maximum safe overload: 150%F.S
Ultimate overload: 180%F.S
Excitation, recommend: 10-12V DC
Excitation maximum: 15VDC
Protection class: IP67(0.25~0.75t); IP68(1t~10t)
Construction: alloy steel, stainless steel
Cable: length, 3m(0.25~2.5t), 4.2m(3~5t), 5m(7.5t~10t)
Diameter: Φ5mm(alloy steel0.25t~5t; stainless steel0.25~0.3t);
Φ6mm(alloy steel7.5t~10t, stainless steel0.5~10t)
