Gromy Industry Co., Ltd. >> Keli S Type Load Cell Dee/Def 50kg-7.5t

Keli S Type Load Cell Dee/Def 50kg-7.5t

Keli S Type Load Cell Dee/Def 50kg-7.5t
Price: US $ 1-100/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: Dee/Def
Capacity: 50kg-7.5t
Material: Steel

Product Description

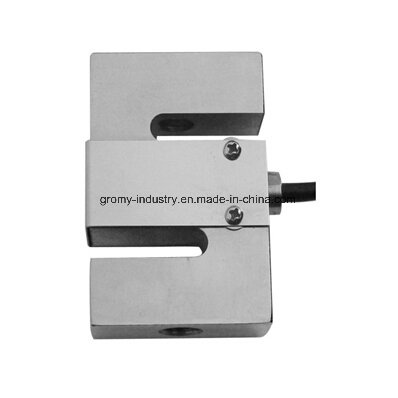

KELI Brand S type DEE/DEF


FEATURES:

Capacity: 50kg to 5t
Threaded connection
High accuracy
OIML C3 approval (DEE)
Material option: alloy steel, stainless steel


APPLICATION:

Testing machine
Crane scale
Packing scale

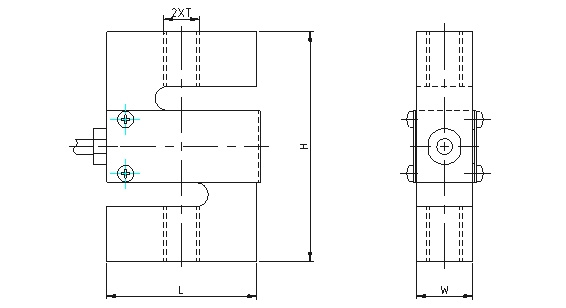

Outline Dimension:

Rated capacity

L

H

W

T

50kg~750kg

51

76.2

19.1

M12X1.75

1t

51

76.2

25.4

M12X1.75

1.2t~5t

76.2

100.4

38.1

M20x1.5

10t

127

177.8

50.4

M30X2



SPECIFICATION:



Rated capacity: 50kg to 10ton

Operating temperature range: -30 to +70ºC

Rated output:2.0±0.003mv/v(DEE);3.0±0.003mv/v(DEF)

Maximum safe overload;150% OF R.C

Accuracy classr:0.03

Ultimate safe overload;180% OF R.C

Non-linearity:±0.03% F.S

Recommended Excitation;10 to 12V DC

Hysteresis error:±0.03% F.S

Maximum Excitation;15V DC

Non-repeatability:±0.02% F.S

Environment protection:  IP65(50kg~1t);

IP68(1.2t~10t)

Zero balance: ±1% F.S

Input impedance: 400±20Ω

Creep error(30minutes): ±0.03% F.S

Output impedance: 352±3Ω

Temperature effect on zero: ±0.02% F.S

Insulation resistance at 50V DC: ≥5000MΩ

Temperature effect on output: ±0.02% F.S

Material:  nickel-plated alloy steel

Compensated temperature range: -10 to +40ºC

cable length: 3meter, diameter 5mm
