Gromy Industry Co., Ltd. >> Keli Shear Beam Load Cell Sqby 1-20klb

Keli Shear Beam Load Cell Sqby 1-20klb

Keli Shear Beam Load Cell Sqby 1-20klb
Price: US $ 1-100/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SQBY
Capacity: 1-20klb
Pattern: Shear Beam
Material: Steel
Certification: Ntep

Product Description

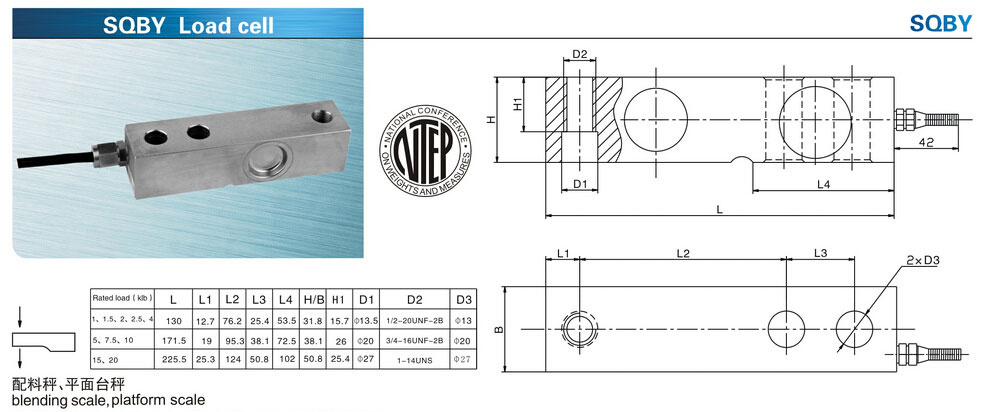

KELI Shear Beam Load Cell SQBY

OIML approval
Rated capacities: 1,2,4,10, 15, 20klb
Sensitivity: 3.0±0.003mV/V
Accuracy class: C2-C5


Keli Ntep Approval Shear Beam Load Cell Sqby 1-20klb


Specifications:

Zero balance: ±1%F.S
TCO: ±0.002%F.S/10ºC
TC SPAN: ±0.002%F.S/10ºC
Input impedance: 400±20Ω
Output impedance: 352 ±3Ω
Insulation impedance: ≥5000MΩ
Temperature range, compensated: -10ºC~+40ºC
Temperature range, operating -30ºC~+70ºC
Maximum safe overload: 150%F.S
Ultimate overload: 180%F.S
Excitation, recommend: 10-12V DC
Excitation maximum: 15VDC
Protection class: IP67(1klb); IP68(2klb-10klb)
Construction: alloy steel, stainless steel
Cable: length, 3m(1klb~5klb),6m(5klb to 10klb)
Diameter: Φ6mm

Special use for floor scale, blending scale, low platform scale.
Gromy Scale Co., Ltd. is a professional manufacturer and exporter committed to weighing equipments research and manufacture. We are located in beautiful Hangzhou, with convenient transportation access. We provide wide range of equipment scale, weighing indicator, load cell, balance, household scale, body scale, commercial scale floor scale, truck scale, test weights and other instruments. We have more than 10 years experience in this area, all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

As a result of our high quality products and outstanding customer service, we have been providing our products to more than 50 countries and areas, reaching Europe, South America, North America, Asia-Pacific and Africa markets.

With the vision of "improving everyday", Gromy Scale will continue to provide the high standard and most cost-effective weighing products for the majority of weighing companies all over the world.

If you are interested in our existing models as well as OEM customized products, we warmly welcome your business inquiry; We are here to serve you best.

We always welcome your visit and inquiry!
