Keli Single Point Load Cell Udb 15kg-200kg

Keli Single Point Load Cell Udb 15kg-200kg
Price: US $ 6-20/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: UDB
Capacity: 50kg-200kg
Accuracy Class: C3
Material: Aluminum

Product Description

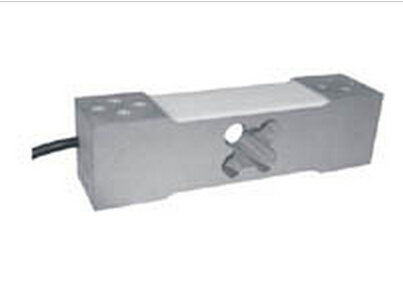

KELI Single Point Load Cell UDB 15kg-200kg

Using for platform scale, all kinds of compression testing devices.

1. Rated capacities: 15,30,50,100,200kg
2. Sensitivity: 2.0±0.2mV/V
3. Accuracy class: C3

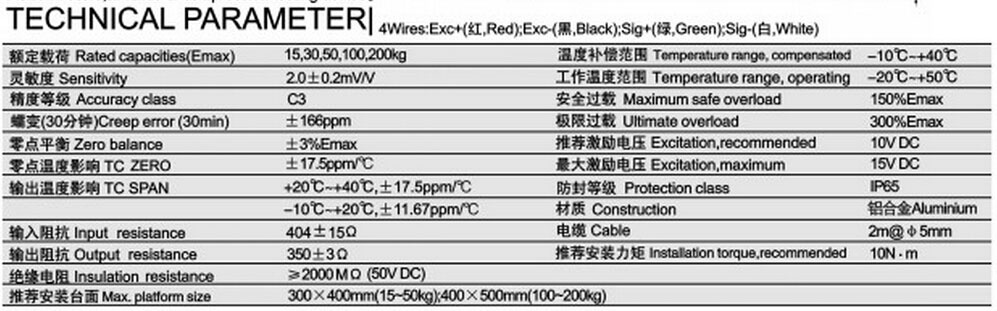

Specifications:
Creep error(30min): ±166ppm
Zero balance: ±3%Emax
TCO: ±0.002%F.S/10ºC
TC SPAN: +20ºC~+40ºC, ±17.5ppm/ºC
          -10ºC~+40ºC, ±11.67ppm/ºC
Input impedance: 404±15Ω
Output impedance: 350 ±
Insulation impedance: ≥2000MΩ
Temperature range, compensated: -10ºC~+40ºC
Temperature range, operating -20ºC~+50ºC
Maximum safe overload: 150%F.S
Ultimate overload: 300%F.S
Excitation, recommended: 10 DC
Excitation maximum: 15VDC
Protection class: IP65
Construction: aluminum
Cable:2m @Φ5mm
Installation torque, recommended: 10N.m
