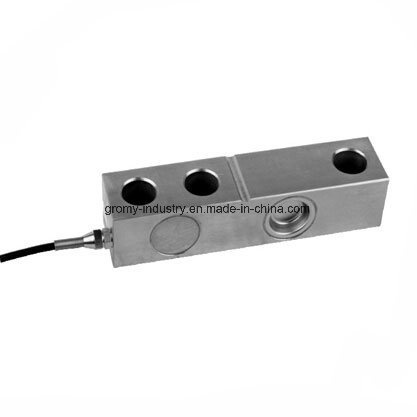

Keli Sqb Shear Beam Load Cell 0.1t to 10t

Name: Keli Sqb Shear Beam Load Cell 0.1t to 10t
Brand: all-electronics-online.com
SKU: 732074672
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 1-100/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SQB
Capacity:	0.1t to 10t
Pattern:	Shear Beam
Material:	Steel

Product Description

FEATURES:

Capacity: 0.1t to 10t

Theaded load hole confirguration

Low profile

OIML C3 approval

Optional material: stainless steel, alloy steel

APPLICATION:

Floor scale

Tank weighing

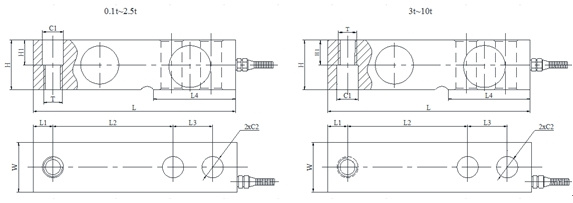

Outline Dimension:
Rated capacity(t)	L	L1	L2	L3	L4	H	H1	W	C1	C2	T
0.1,0.15,0.2,0.3,0.5, 0.75,1,1.5,2,2.5	130	12.7	76.2	25.4	53.5	31.8	15.7	31.8	Φ13.5	Φ13	M12
3,5	171.5	19	95.3	38.1	72.5	38.1	26	38.1	Φ20	Φ20	M18x1.5
7.5,10	225.5	25.3	124	50.8	102	50.8	25.4	50.8	Φ27	Φ27	M24x2

SPECIFICATION:
Rated capacity: 0.1ton to 10ton	Operating temperature range: -30 to +70ºC
Rated output:2.0±0.002mv/v(0.1t~0.3t); 3.0±0.003mv/v(0.5t~10t)	Maximum safe overload;150% OF R.C
Combined error:±0.03% F.S(alloy steel); ±0.05% F.S(stainless steel)	Ultimate safe overload;180% OF R.C
Non-repeatability:±0.02% F.S	Recommended Excitation;10 to 12V DC
Non-linearity:±0.02% F.S	Maximum Excitation;15V DC
Hysteresis error:±0.02% F.S	Environment protection: IP67(0.1t~0.3t); IP68(0.5t~10t)
Zero balance: ±1% F.S	Input impedance: 400±20Ω
Creep error(30minutes): ±0.02% F.S	Output impedance: 352±3Ω
Temperature effect on zero: ±0.02% F.S	Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S	Material: nickel-plated alloy steel;Stainless steel
Compensated temperature range: -10 to +40ºC	Cable length: (1.5/3)meter(0.1t~2.5t),4.2meter(3t~5t),5meter(7.5t~10t),diameter 6mm
