Gromy Industry Co., Ltd. >> Keli Zsf/Zsfy Load Cell 10t-50t

Keli Zsf/Zsfy Load Cell 10t-50t

Keli Zsf/Zsfy Load Cell 10t-50t
Price: US $ 1-100/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: ZSF
Material: Steel

Product Description

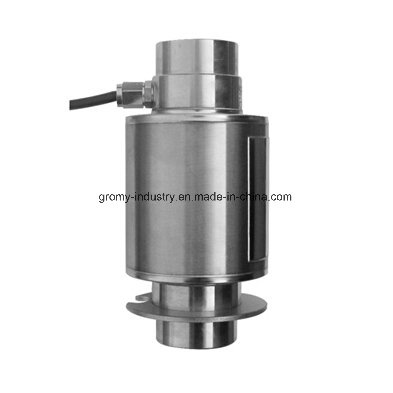

Keli OIML Approval Weighbridge Load Cell ZSF/ZSFY 10t-50t

1. Rated capacities: 10,15,20,25,30,40,50t
2. Sensitivity: 2.0±0.002mV/V
3. Total error:±0.03%F.S; ±0.05%F.S(40-50t, stainless steel)

Keli OIML Approval Weighbridge Load Cell Zsf/Zsfy 10t-50t

Specification:

Creep error(30min): ±0.02%F.S
Zero balance: ±1%F.S
TCO: ±0.02%F.S/10ºC
TC SPAN: ±0.02%F.S/10ºC
Input impedance: 400±10Ω(ZSF),700±20Ω(ZSFY),
Output impedance: 352 ±10Ω(ZSF), 706 ±20Ω(ZSFY)
Insulation impedance: ≥5000MΩ
Temperature range, operating -30ºC~+70ºC
Maximum safe overload: 150%F.S
Ultimate overload: 250%F.S
Excitation, recommended: 10-12 DC
Excitation maximum: 15VDC
Protection class: IP68
Construction: -A; Alloy Steel, -SS; stainless steel
Cable: 8m(10t), 10m(15t), 12m(20-25t), 14m(30t), 16m(40-50t), diameter: Φ5mm


Keli OIML Approval Weighbridge Load Cell Zsf/Zsfy 10t-50t
